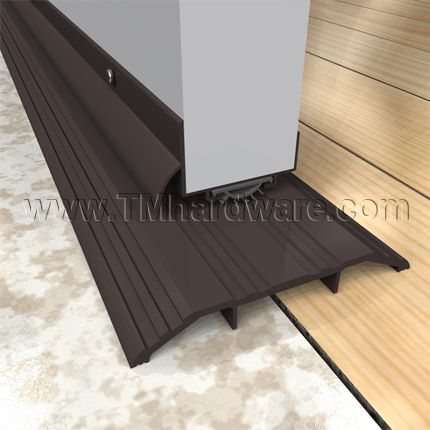

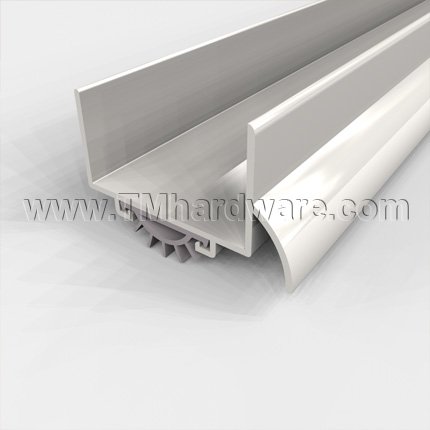

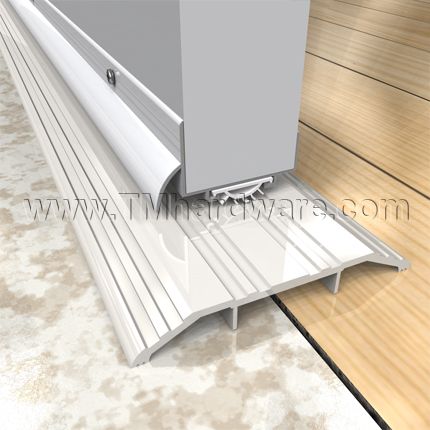

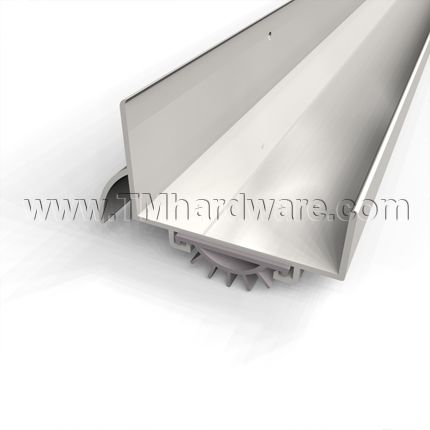

Pemko #216 is a fire and smoke rated U shaped door shoe can fill the gap under a door with minimal effect on the door's appearance. It is crafted from high quality material and fitted with durable fingered Eco-V™(Vinyl) insert. Designed to fit 1.75" thick doors and is 36" Wide.
STOCK LENGTH: 36" Length
This QuickShip item is available in stocked sizes and finishes. For custom sizes and finishes, see our Pemko #216 Door Shoe Sweep.
This fire and smoke rated U Shaped door shoe sweep is ideal for filling gaps under door and for protection for the bottom of the door while minimally affecting the overall appearance of the door. It is crafted from high quality material that will ensure long lasting usage.
The casing is designed with elongated slots of easy adjustments. It is available with Eco-V (Vinyl) insert. Eco-V™ is comparable to vinyl, though it is a newer, greener and more environmentally friendly version and surpasses the quality and durability of standard vinyl. See Insert Material Tab for more information. The fingered design conforms well to surface irregularities to ensure a proper protection at all times.

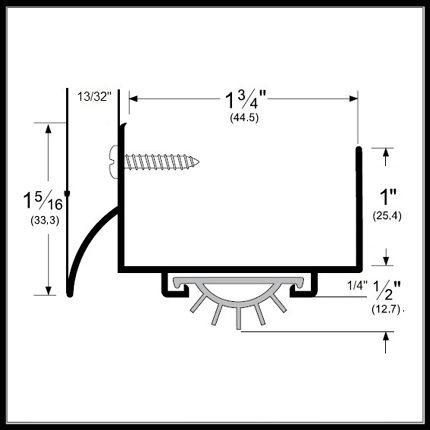

This door shoe can fill gaps up to .5" and can be applied to door with a thickness of 1.75" (for doors of greater thickness, see our Door Shoe Sweep, L Shaped Rain Drip).

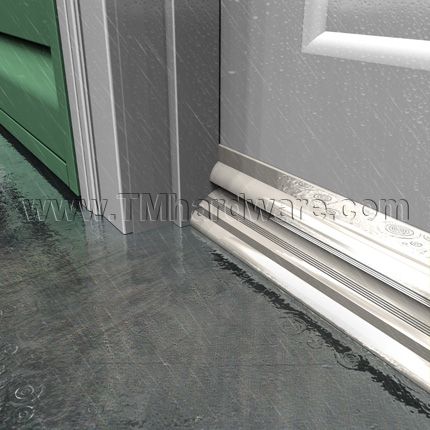

Additionally, this door shoe has a rain drip design which deflects water from the door bottom, providing extra protection from the outdoor elements.
Installation instructions and screws provided. Screws are colored to coordinate with casing.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
For more door seals, see our Pemko #210 Door Shoe Sweep, L Shaped Aluminum Rain Drip Casing.
PemkoPrene™ (Thermo-Plastic Elastome -TPE, Thermo-Plastic Rubber-TPR): A common trade name for PemkoPrene is “SantoPrene”. This material possesses the same flexibility and durability common to natural rubber compounds. Additionally, PEMKO has selected these materials because of their outstanding resistance to cleaning fluids and disinfectants as well as for their everyday resilience and low impedance to opening or closing requirements on door assemblies.
Eco-V™(Vinyl): This rubber is comparable to PVC Vinyl (listed in chart below). However, Eco-V is newer, greener and more environmentally friendly version of PVC Vinyl. It has been tested for a number of harmful chemicals and has low Volatile Organic Compound (VOC) Emissions, to ensure they are safe for indoor environments, especially schools and healthcare facilities. Eco-V complies with UL Listed Green Guard requirements and aids in achieving or exceeding criteria in green building ratings programs, such as LEED and Collaborative High Performance Schools (CHPS). Additionally, Eco-V surpasses the quality and durability of traditional vinyl gasketing, resulting in a longer service life and less need for replacement.
This unit replaced an almost identical unit that has been on the door for over 35 years and was worn out and allowing drafts in under the door. It was easy to install and is doing the job of blocking drafts quite nicely. Should be good for many years to come. Could not find this product in box stores.
