Pemko #216FG Door Shoe Sweep, U Shaped 1.75" Aluminum with Thermal Break, Rain Drip and .5" Fingered Seal

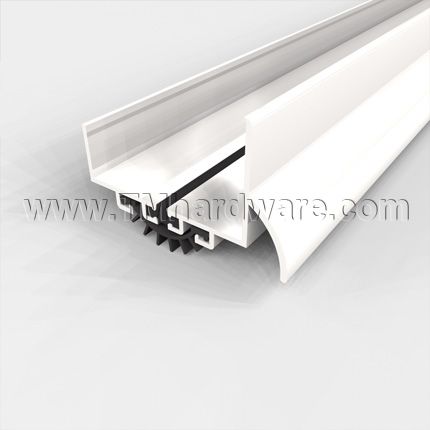

This door shoe combines a Fingered PemkoPrene™ Seal, Rain Drip Cap, U Shaped Casing and Thermal Break to provide a superior seal at the bottom of doors. This model is made specifically for 1.75” wooden or metal doors and fills gaps of .5". It is air infiltration and sound rated. Available in various aluminum finishes and is custom cut to size.

PRICED PER FOOT

See tabs below for additional information

Finish
Size

Quantity

Add to compare

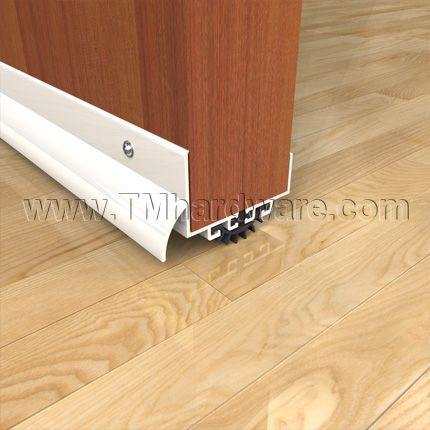

Door shoes are ideal for protecting the bottom of doors while only barely affecting its overall appearance. When a U-Shaped Door Shoe is applied, the door needs to be removed, however it is a sturdier model than a standard Door Bottom or its L-Shaped counterpart. The thermal break on this layer adds another layer of protection and is rated for air infiltration and sound.

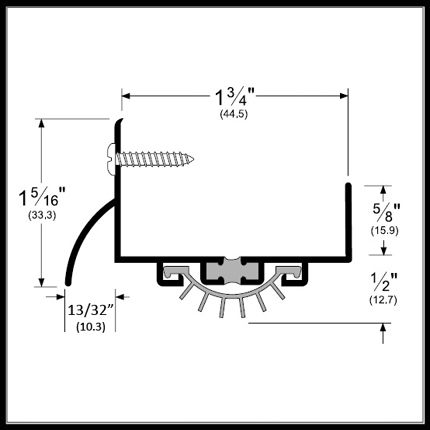

U-Shaped Casing: The high quality aluminum is sized to fit wooden or metal doors with a thickness of 1.75”. The sides extend 1.3” along the face of the door and .625” along the back. Casing is punched with elongated slots for easy installation and adjustments.

Seals: This model is available with a PemkoPrene™ fingered. PemkoPrene™ is a thermo-plastic elastomer which stays flexible in temperatures between -70º and +250ºF, making it ideal for exterior doors and ensures a longer-lasting product than its vinyl counterpart. The fingered design can fill gaps up to .5” and conforms well to uneven floor or threshold surfaces, ensuring a proper seal constantly. All seals are colored black.

Thermal Break: This door shoe is fitted with a Polypropylene Thermal Break for extra weather protection. The break prevents conductivity of cold from one side of the door shoe to the other. This component significantly reduces heat and cold transfer which lowers energy usage and saves you money on your utility bills.

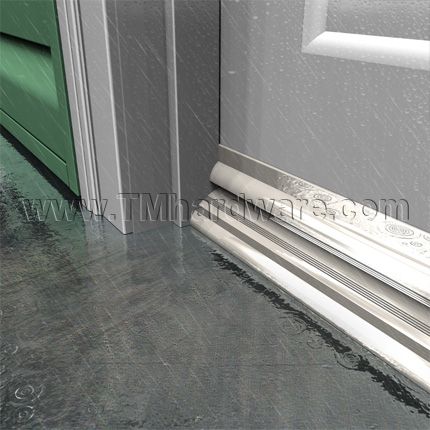

Rain Drip Cap: This door shoe has a convenient Rain Drip cap which deflects water from the gap under doors to eliminate water seepage.

Installation Guide and screws provided. Screws are colored to coordinate with casing.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

For additional door gap protection, this product can be paired with our Thermal Break Thresholds.

- SKU
  PK216AFG
QuickShip
No
Manufacturer
Pemko Manufacturing
MPN
216FG
About this Product
- Door Shoe Retainer Material
  Aluminum
- Temperature Range
  -70º to +250ºF
- Door Type
  Wooden Door, Metal Door
- Seal Type
  PemkoPrene® Rubber Seal
- Mounting
  Door Shoe Mount
Dimensions
- Seal Height
  1/2" Height
- Total Height
  1-13/16" Height
- Additional Dimensions
  Door seal is 1-3/4" thick
- Length
  Custom Cut to Size
- Door Thickness
  1-3/4" Thick
Installation
- Drill Holes
  Drill holes are provided
Special Features
- Rain Drip Cap
  Yes
Finishes
- Finish
  Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313), White Suede Powder Coat
Compliance Details
- Compliance Details
  Sound Rated, Air Infiltration Rated, BHMA Certified
- ANSI Designation
  R3D514
- Warranty
  5 Year Limited Warranty

Click to Print

P216FG Product Specs:

Click to Print

P216FG Installation Guide:

Click to View Ratings Explained

Finishes Comply with the Following ANSI / BHMA Codes:

Bright Dip Clear Anodized Aluminum - US26 / 673
Dark Bronze Anodized Aluminum - US10B / 710
Bright Dip Gold Anodized Aluminum - US3 / 707
Satin Nickel Anodized Aluminum - US15 / 619
Painted White Aluminum - 714

Contact us for pricing and availability on custom fabrications. Note, custom fabrications is only available on bulk purchases.

Full Notch includes removal of rain drip and front flange of door shoe to prevent interference with door stop and weatherstrip. Available in 1/2".

Half Notch includes removal of rain drip to prevent interference with door stop and weatherstrip. Available in 1/2".
