Need it fast? Our Similar Product Barzen #AM01 Automatic Door Bottom — ships next business day at a lower price. Available in custom sizes

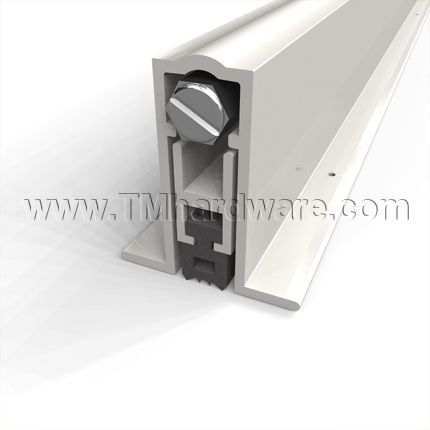

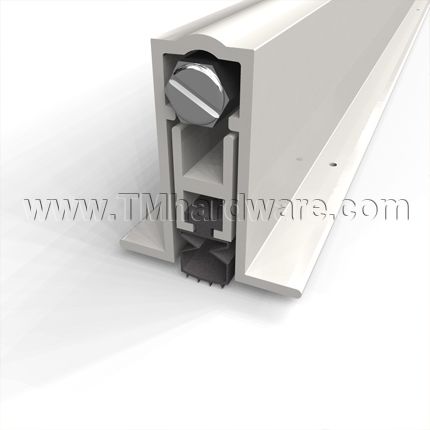

Pemko #411 Automatic Door Bottom has a drop down seal which is automatically lowered when the door is closed to seal the gap. Casing is made of aluminum mill, is fully mortised and will not affect the appearance of the door. Choice of three seal available and is custom cut to size.
End plates and screws are provided.
Stock options are available to ship within 1-3 business days. See our Pemko #411 Automatic Door Bottom, Mortised Narrow Casing with Rubber Seals - .75" Drop - QuickShip
PRICED PER ITEM
Pemko #411 Automatic Door Bottom has a drop down seal which is automatically lowered when the door is closed to seal the gap. Casing is made of aluminum mill, is fully mortised and will not affect the appearance of the door, ideal for decorative doors, upscale condos, dormitories, commercial buildings and luxury hotels. This model is compatible with 1-3/4" and 1-3/8" thick doors, however, different end plates are required for each door. Please select from options above.
Need it sooner? Stock options are available to ship within 1-3 business days. See our Pemko #411 Automatic Door Bottom, Mortised Narrow Casing with Rubber Seals - .75" Drop - QuickShip
When choosing a seal it is essential to determine the purpose for sealing and the floor surface beneath the seal.
Insert Replacement: This seal is designed to last through much usage, however if necessary a replacement seal can be purchased - see our Sponge Rubber Replacement for Pemko #411
Installation: Installation instructions, end plates and screws provided.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.
For a brush version of this product, see our Pemko Mortised Automatic Door Bottom with Nylon Brush.
Click here for our Quick Ship Barzen #AM01 Mortised Automatic Door Bottom. Stock size - 36" length is available to ship within 1 business day!
Click here for a Printable Copy of How to Install a Mortised Automatic Door Bottom.
|
Automatic Door Bottoms are available with three mounting options: Surface Mounted, Semi-Mortised and Fully Mortised. A surface mounted application can be applied without removing the door from its hinges. For a semi-mortised, if the rabbet in the door is cut-out already, the door does not need to be removed. For a fully mortised application the door should be removed before starting. |
|
STEP 1: PREPARE YOUR DOOR BOTTOM

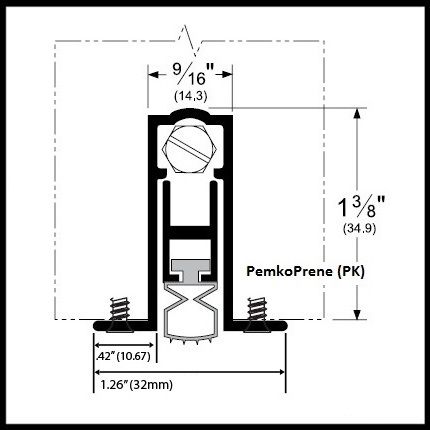

Remove door and cut mortise in bottom of door as per the dimensions of the provided product specs. NOTE: If a door is fire labeled or of special construction, mortise preparation must be done by the door manufacturer. |
|
STEP 2: MEASURE AND TRIM YOUR DOOR BOTTOM
Measure your door from side to side. That will determine the length required for your Door Bottom. |
|
Once you have you determine the size needed, if necessary, trim your door bottom. Use a chop saw or table saw to create a perfectly straight cut. Note, Only trim opposite the actuating plunger, brass nut. (Trimming from the brass nut side will ruin your ADB). You can trim from the edge up to one inch of the screw on the side wall of the ADB. |
|
STEP 3: APPLY YOUR AUTOMATIC DOOR BOTTOM
With door removed from opening, install the door bottom with plunger at the hinge side, fasten with screws provided and install door in opening. |
|
STEP 4: ADJUSTING YOUR AUTOMATIC DOOR BOTTOM
Screw the actuating plunger in or out as required until the gasketing just touches the sealing surface when the door is closed. It is not necessary to squash the gasket to provide an effective seal. |
|
Once you have followed through with all the instructions your Automatic Door Bottom is good to go! Enjoy years of quality sound, draft and light infiltration control with your new door bottom. |
Click to View Ratings Explained
ANSI Codes:

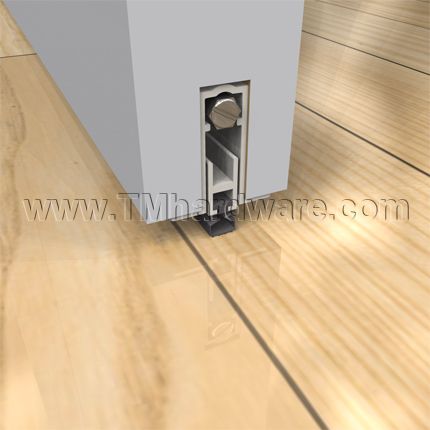

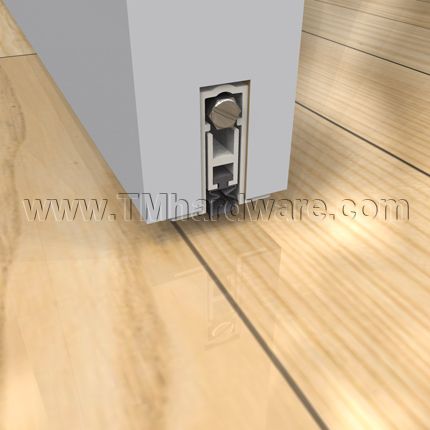

The Automatic Door Bottom utilizes a concealed flat spring mechanism which is activated upon opening and closing of the door. A brass plunger is compressed when the door is closed to automatically drop the seal, starting from the hinge side first. The seal is raised when the door opens. This motion ensures a smooth drop without a drag, even on an uneven surface. It is compatible with a door saddle or against the floor. The door bottom is built from durable materials that are meant to last. It has been tested through 5 million cycles!
See also About Automatic Door Bottoms.
Installed as a replacement for a customer. Everything was there answered perfectly. It was a custom measurement and it was an exact fit.
Merchant Response
Thank you for the review!
Came on time as advertised.
Works great for our application.
Product has not arrived
we often use this threshold in our work. It is very easy to install and works well
Product arrived quickly and was well packaged. Still to install but hoping it works as planned.
Great service and product. Will be ordered again.
I have concrete floors and I'm using this product on a new fiberglass entry door. Door yet to arrive, but do not anticipate difficulty with installing as instructions clear. Great product and fabulous customer service
Very good customer service
Was very satisfied with the product. It worked as designed.
