Pemko #434 Automatic Door Bottom, Mortised, Heavy Duty, with Choice of Seals - .75" Drop

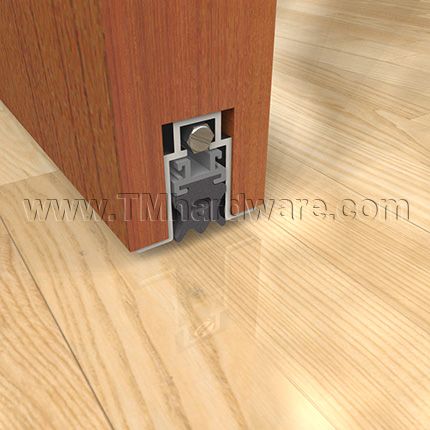

Pemko 434RL Automatic Door Bottom with Sponge EPDM Seal
Pemko Manufacturing
Read 2 reviews

Pemko #434 heavy duty automatic door bottoms require low closing force to actuate a drop down bar which lowers when the door is closed to prevent air, light, sound, fire, smoke, dust and moisture from coming through the gap under doors. Available with a PemkoPrene™ or EPDM seal and is custom cut to size.

Need it sooner? Stock size and finish is available to ship within 1-3 business days. See our Pemko #434 Automatic Door Bottom, Mortised, Heavy Duty, with Choice of Seals - .75" Drop - QuickShip

PRICED PER ITEM

How to Order: Selecting Seal Material and Size required will determine your total price. To determine size needed, see How to Measure for an Automatic Door Bottom. Door bottom can be trimmed up to 2" in the field.

See tabs below for additional information
    • SKU
      PK434APKL-36
      • 19% off
      Market price: $122.76 save $23.33
    • Starting price: Price: $99.43 per item


    These heavy duty automatic door bottoms create a strong seal, preventing fire, smoke, sound, drafts, dust, light and moisture from penetrating the gap under doors.

    Need it sooner? Stock size and finish is available to ship within 1-3 business days. See our Pemko #434 Automatic Door Bottom, Mortised, Heavy Duty, with Choice of Seals - .75" Drop - QuickShip

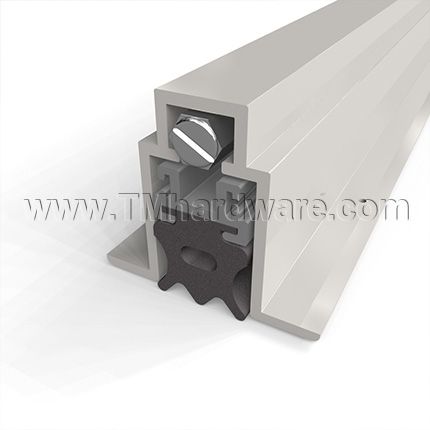

    How it Works: The high quality automatic mechanism consists of an aluminum case which surrounds a moveable drop-bar seal. The drop-bar seal is actuated by a plunger which contacts the door frame jamb as the door is closing, forcing the drop-bar seal down against the floor / threshold. The plunger requires low "Feather Touch" closing force to actuate the drop-bar seal. The seal drops to fill gaps up to 3/4". The mechanism causes the seal to always actuate on the hinge side first, which prevents the seal from skidding along the floor/threshold while the door is being closed (See Application Tab). Door hang-up will not occur!

    EPDM vs. PemkoPrene™: When choosing a seal it is essential to determine the purpose for sealing and the floor surface beneath the seal.

    • EPDM is comparable to Sponge Neoprene, though it is more Eco-Friendly and delivers an overall better performance. Specifically, it has great sound control properties and is resistant to solvents.

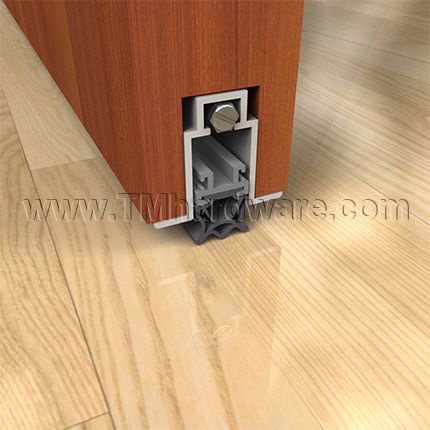

    • PemkoPrene™ has a multi-point compression design which works great on uneven surfaces such as a tiled floor or carpet. PemkoPrene™ is not a firm seal which allows for more leniencies. Both options remain effective in a wide range of temperatures and can be used on external doors.

    Installation: This automatic door bottom is fully mortised, and will not be seen on the face of the door, making it ideal for high end, luxurious doors. It is non-handed (reversible) and can be applied to both wood or metal doors. Size of casing differs depending on the length, please review product specs.

    Installation instructions, end plates and installation screws provided. Screws are colored to coordinate with casing.

    Seal Replacement: Seals are manufactured to last through many usages, however if required, a replacement seal can be purchased, which eliminates the need to replace the whole door bottom. See our Pemko Automatic Door Bottom Replacement Seal.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.
    Click here to view our Full Warranty Policy.

    This product is available in a Nylon Brush Version.
      • SKU
        PK434APKL-36
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      434RL, 434PKL, OS434PKL, OS434RL
    • Product Design
      • Seal Type
        PemkoPrene™, Nylon Brush, sponge EPDM
      • Mounting Type
        Fully Mortised
      • Door Type
        Wooden Door
    • Dimensions
      • Casing Dimensions
        Refer to Product Specs
      • Length
        Custom Cut to Size
      • Drop Size
        Up to .75" Drop
      • Door Thickness
        1-3/4" Thick
    • Installation
      • Handing
        Non-Handed
      • Installation Screws
        Installation Screws Provided
      • Sizing
        To determine sizing required see 'How to Size an Automatic Door Bottom'
    • Special Features
      • Compatible Insert Replacement
        #PK4304 PemkoPrene Replacement
    • Finishes
      • Finish
        Mill Finish Aluminum (US27)
    • Compliance Details
      • Compliance Details
        Air Infiltration Rated, Sound Rated, ADA Compliant, BHMA Certified, Smoke Rated, Fire Rated, UL Classified, GreenGuard Gold Certified
      • ANSI Designation
        R3G324, R3G325
      • Warranty
        5 Year Limited Warranty

    Click to Print

    Each flange has a width of 3/8" (.375").
    Total Width is 1-19/32" (1.59")



                                                                           24" - 48" Length:



                                                             48.25" - 72" Length:


    SHIPPING / PROCESSING TIME:


    This product ships directly from the manufacturer.
    Please allow 2 - 3 weeks to ship
    • Domestic Shipping Fees- (Hawaii and Alaska not Included):
      • FREE SHIPPING on orders over $300.00 (excludes oversized and freight orders).
      • There will be a flat $19.99 shipping and handling fee on orders under $300.00.
      • Oversize: Orders containing items sized 50" - 95" have an oversize surcharge of $49.99.
      • Freight Items: Orders containing items sized 96" - 108" have an oversize surcharge of $199.00.
      • Oversize Freight Items: Orders containing items sized 109" and above have an oversize surcharge of $299.99.
      • Orders totals above $2,000.00 will ship free, regardless of size.
    • Alaska and Hawaii, Canada, and International Shipping:
    • Returns:
      • This product is custom made and is not returnable.
      • We are committed to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 35% restock fee.
      • CLAIMS FOR SHORTAGE OR DAMAGE IN TRANSIT: All claims must be made within Seven (7) days of receipt of goods.
      • Weatherstripping products will not be considered for returns.
      • Item must be in new, re-saleable condition.
      • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
      • Return shipping is customer's responsibility. A return address will be provided with RMA#.
      • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
