Hager 1257, Full Mortised, Reverse Action Spring Hinge, Stain Chrome US26D, 4.5" x 4.5"

Hager 1257 Full Mortised, Reverse Action Spring, Steel Hinge

Hager 1257 Full Mortised, Single Acting Reverse Action, Architectural Spring Hinge with square corners. Reverse action spring hinge for automatic opening of doors. See below for door size and weight recommendations. Hinge made of Steel with steel components.

Hinge size is 4.5" x 4.5" and it is Satin Chrome Plated (US26D).

PRICED PER PIECE

See tabs below for additional information

Quantity

Add to compare

Hager 1257 Full Mortised, Single Acting Reverse Action, Architectural Spring Hinge with square corners. Reverse action spring hinge for automatic opening of doors.

Available Sizes:

Hinge Size		Gauge of Metal	Hole Count	Screw Size
Inches	mm	Gauge of Metal	Hole Count	Machine	Wood
4-1/2" x 4-1/2"	114 x 114	0.134	8	1/2 x 12-24	1-1/4 x 12

Series	Size	Recommended Max Door Weight (lbs.)	Spring Hinge	Ball Bearing Hinge
1257 - For 1 3/4" (45mm) Door	4 1/2 x 4 1/2	70	1	2

For maximum versatility, use all spring hinges or a combination of spring and ball bearing hinges. Do not use plain bearing hinges.

Adjustable Tension: You could set the tension easily, as you need, using a tension bar and set pin (provided). See Installation Instructions for more information. Full spring tension may not be required.

Strong wind conditions, drafts, carpeting drag, twisted/misaligned frames or weather-stripping on doors may require additional spring hinges.

Usage on Fire Rated Doors: NFPA 80 has restricted the use of architectural grade spring hinges to fire rated doors of a maximum size of 3'0" x 7'0". Hager spring hinges have been tested and labeled for up to a 4'0" x 8'0" door when a minimum of three springs are used.

Priced per hinge.

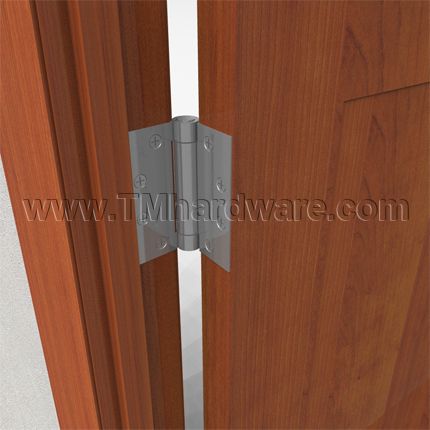

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 3 year guarantee against defects in workmanship and materials.
Click to view our Full Warranty Policy.

Click here to view our Hager 1256 Singe Acting Spring Hinge Set.

- SKU
  HG1257-26D
QuickShip
No
Manufacturer
Hager Companies
MPN
1257
Product Design
- Hinge Category
  Spring Full Mortised Hinge
- Base Material
  Steel
- Usage Level
  Standard Duty
- Throw
  Standard Throw
- Bearing Type
  Reverse Action Single Spring
- Knuckles
  3 Knuckle Hinge
- Pin Type
  Standard Hinge Pin
- Hinge Tip Type
  Button Tip
- Hinge Corner
  Square Corner
- Hole Pattern
  Commercial "C" Pattern
- Number of Holes
  8 Holes
Dimensions
- Hinge Size
  4-1/2" x 4-1/2"
- Hinge Thickness
  .134" Thick
Installation
- Door Type
  Wooden Door, Metal Door
- Installation Screws
  Installation Screws Provided Accordingly:
  4-1/2" x 4-1/2" Hinge: All metal screws and all wood screws.
  Additional screw packs can be provided if listed in order comments before completing purchase.
Finishes
- Finish
  Satin Chrome (US26D)
Compliance Details
- Compliance Details
  BHMA Certified
- ANSI Designation
  K81071, A156.1
- Warranty
  3 Year Limited Warranty

Click to Print 4-1/2" Hinge Template

4-1/2" Hinge Template.

Click to Print Installation Instructions

Complies with BHMA (Builders Hardware Manufacturing Association) Standard A156.18.
Hinge Set complies with ANSI K81071.
