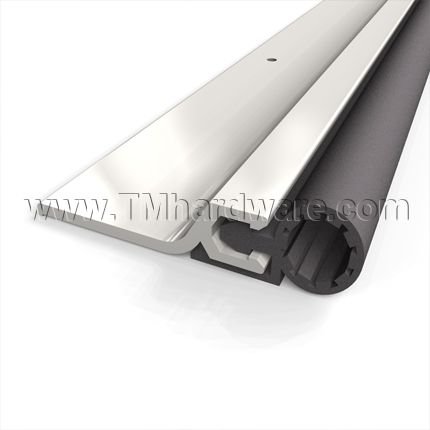

This aluminum casing and rubber seal can be applied as a door gasket or meeting stile. It has a .25" rubber bulb seal which prevents infiltration of water, dust, drafts, fire, smoke and air. Available in many finishes, various seals and mounting options.
PRICED PER FOOT.
Need it sooner? Stock sizes and finishes are available to ship within 1-3 business days. See our Pemko #303 Door Gasket or Meeting Stile Set, Aluminum with Rubber Bulb Seal .25" - QUICKSHIP
Reminder: If being purchased as a meeting stile for both doors, select quantity 2, or as needed.
This aluminum casing and rubber seal can be applied as a door gasket or meeting stile. Its .25" rubber bulb will create a seal that will prevent infiltration of water, dust, drafts, fire, smoke and air. Available in many finishes that are guaranteed to blend unobtrusively into your door, and in various rubber seal types and mounting options.
Need it sooner? Stock sizes and finishes are available to ship within 1-3 business days. See our Pemko #303 Door Gasket or Meeting Stile Set, Aluminum with Rubber Bulb Seal .25" - QUICKSHIP
Door Gasket: Applied around the perimeter of the door. The aluminum retainer is surface applied to the stop of the door. When closed, the door compresses against the seal to form a solid barrier. It is designed for gaps of 1/16" but can seal up to 1/4".
Meeting Stile: This is designed to be applied to a pair of double active doors. It is installed on the face of the door. It can fill gaps of approximately 1/4".
Seal Options: This product can be purchased with a PemkoPrene™, Silicone or Eco-V (Vinyl) Insert. Silicone has the best overall performance and should be used in high performance situations, especially those involving continuous exposure to extreme heat/cold or frequent cleaning with disinfectant. PemkoPrene™ can be applied in general gasketing situations, and locations with frequent use. Eco-V is comparable to vinyl (a lower grade rubber), though it is a newer, greener and more environmentally friendly version and surpasses the quality and durability of standard vinyl. For more details see Understanding Rubber Seals.
Installation Option: Mounting options include screws or adhesives. The screw option is supplied with stainless steel screws and casing is punched on 6" centers. Adhesive comes with two-sided tape applied to the back of casing, and is supplied with TEK screws. Casing is punched 3 holes per part. Holes are punched slotted for easy installation and adjustment.
Installation instructions and screws provided. Screws are colored to blend unobtrusively with casing.
Insert Colors: The following insert colors are available: Silicone- Black or White; Eco-V- Gray, Black or White; PemkoPrene™- Gray or Black. Default coordinating combinations are supplied. To request specific combinations contact us or call us at 845-388-1300.
Reminder: If being purchased as a meeting stile for both doors, select quantity 2, or as needed.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our full Warranty Policy
Click here to return to the main door seals category.
Click to View Ratings Explained
* GREENGUARD GOLD applies only to Eco-V (Vinyl) Seal.
Perfect for what we were looking for to be in compliance with NFPA code for fire doors, easy to install, great product.
I used it to secure the front door.
Used for a door gasketing requirement.
great product
Really nice door gasketing in dark bronze (looks black which I wanted) and the silicone seal is key for a painted door (vinyl will pull off paint), and a superior insulator. It was great being able to get custom sizes cut since my door is larger than standard; the self driving pemko screws were dark as well, making for a modern architectural look that you can't find at a big box store.
Merchant Response
Thank you for the review and for pointing out the difference between the silicone and vinyl seal.
The automatic door thresholds are awesome. I go here when I have a situation to save a door.
