TMH Automatic Door Bottom, Surface Mounted, Heavy Duty, Sponge Neoprene Seal, 1" Drop

TMH Automatic Door Bottom, Surface Mounted, Heavy Duty, Sponge Neoprene Seal, 1" Drop
  • Clearance Sale!
Trademark Hardware
Read 4 reviews

***Clearance Sale***

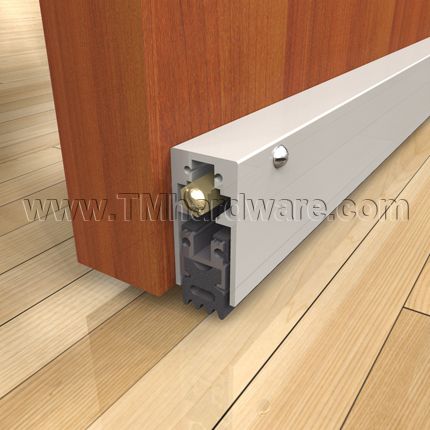

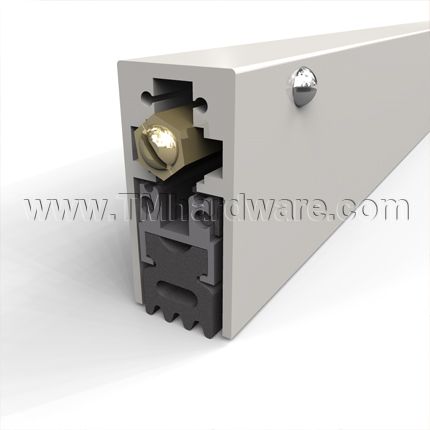

This Surface Mounted, Heavy Duty, Sound Rated Automatic Door Bottom provides the best sound seal possible for normal sound levels, and will prevent infiltration of light, drafts and more. Equipped with a long lasting, high-quality sponge neoprene seal and mechanism that has been tested to 5 million openings and closings. Rated for fire, smoke and sound infiltration. View more details in the description below.

This is a Clearance item - The following are still available - Clear Anodized in 42" and Dark Bronze in 32"

For custom sizes, see our Surface Mounted Automatic Door Bottom #361.

See tabs below for additional information
    • Weight
      4 lbs
    • SKU
      TH361D32
      • 10% off
      Market price: $108.70 save $10.87
    • Starting price: Price: $97.83 per item
    In stock (8 items available)


    This is a QuickShip product, available in stock sizes only - for custom sizes see our full product Surface Mounted Automatic Door Bottom #361.

    Length: Available in stock lengths. Can be cut up to 2" on the field.

    Handing:  Can be used on both right handed and left handed doors.

    Installation:  Installation instructions and screws included. Screws are colored to coordinate with casing.

    Sizing:  To determine sizing required, see How To Measure For An Automatic Door Bottom.

    Insert Replacement: Click here to purchase a Sponge Neoprene Replacement Seal for this product.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 3 year guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    See also our High Sound Automatic Door Bottom for even higher sound control.

      • Weight
        4 lbs
      • SKU
        TH361D32
    • QuickShip
      Yes
    • Manufacturer
      Trademark Hardware
    • MPN
      361
    • Product Design
      • Mounting Type
        Surface Mounted
      • Door Type
        Wooden Door, Hollow Metal Door
    • Dimensions
      • Casing Dimensions

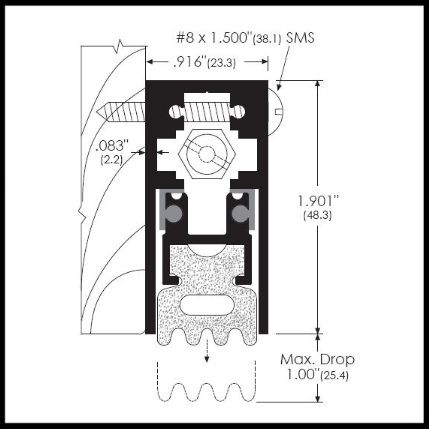

        Casing measures 1.901" by .916" with .083" thick aluminum casing.
      • Length
        36" Length, 32" Length, 42" Length
      • Drop Size
        Up to 1" Drop
    • Installation
      • Handing
        Non-Handed
      • Installation Screws
        Installation Screws Provided
      • Sizing
        To determine sizing required see 'How to Size an Automatic Door Bottom'
    • Special Features
      • Compatible Insert Replacement
        #363N Sponge Neoprene Replacement
    • Finishes
      • Finish

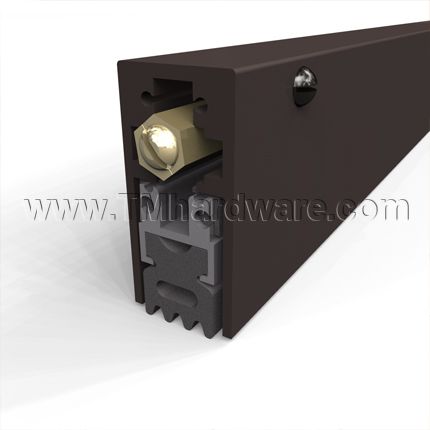

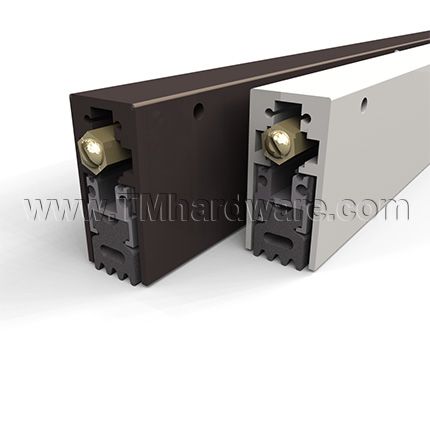

        Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313)
    • Compliance Details
      • Compliance Details
        Fire Rated, Air Infiltration Rated, Sound Rated, BHMA Certified
      • ANSI Designation
        R3C3341
      • Warranty
        3 Year Limited Warranty

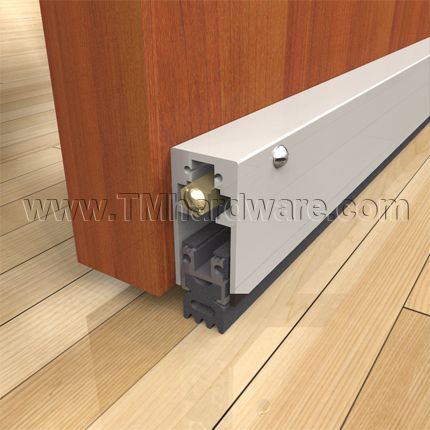

    Automatic Door Bottoms utilize a concealed flat spring mechanism and plunger. When the door is closed, a brass plunger is compressed to automatically lower the seal, starting from the hinge side first. This motion ensures a smooth usage even on an uneven surface and prevents drag. The seal is automatically raised upon opening. These automatic door bottoms have been successfully tested through 5 million cycles!

    See also About Automatic Door Bottoms.

    Complies with the following ANSI / BHMA Codes: R3C334

    Click here for a Printable Copy of How to Install an Automatic Door Bottom.

    Automatic Door Bottoms are available with three mounting options: Surface Mounted, Semi-Mortised and Fully Mortised. A surface mounted application can be applied without removing the door from its hinges. For a semi-mortised, if the rabbet in the door is cut-out already, the door does not need to be removed. For a fully mortised application the door should be removed before starting.

    STEP 1: SIZING YOUR DOOR BOTTOM

    Once your door is ready for installation you need to determine the size required for your door bottom:

    • For a Surface Mounted Application: Measure the distance between the two stop moldings, or if a perimeter door gasket is applied, measure the distance between the two installed gaskets, then minus 1/8-1/4"” (.125”) from the total distance. That is the size needed for your door bottom.
    • For a Semi-Mortised and Fully Mortised Application: Measure your door from side to side; that is the measurement needed for your automatic door bottom.

    For visual presentation see How to Measure for an Automatic Door Bottom.

    How to Install an Automatic Door Bottom- Figure 1

    Once you have determined the size needed, if necessary, trim your door bottom. Use a chop saw or table saw to create a perfectly straight cut.

    Note, Only trim opposite the actuating plunger, brass nut. (Trimming from the brass nut side will ruin your ADB).



    How to Install an Automatic Door Bottom- Figure 1You can trim from the edge up to one inch of the screw in the side wall of the ADB.


    STEP 2: PREP FOR ATTACHING AUTOMATIC DOOR BOTTOM

    How to Install an Automatic Door Bottom- Figure 3Surface Mounted and Semi-Mortised models need to be applied to the push side of the door only (the side with the door stops). The actuating plunger needs to be applied to the hinge side of the door for all applications.

    Place the automatic door bottom against the door

    Once you have the automatic door bottom leveled and positioned correctly, with a pencil or marker mark where the attachment screws need to be drilled.

    STEP 3: ATTACHING THE AUTOMATIC DOOR BOTTOM

    How to Install an Automatic Door Bottom- Figure 4

    To make installation easier you can drill a pilot hole which will ensure you attach the door bottom to the correctly marked spot. With the screws provided, screw in the automatic door bottom.

    In some models, a plate is provided for the hinge side of the frame. This will protect the door frame from getting worn down by the actuating plunger. If provided, attach to corresponding point on the frame.


    STEP 4: TESTING YOUR AUTOMATIC DOOR BOTTOM

    How to Install an Automatic Door Bottom- Figure 5Now that the door bottom is attached, test the door bottom by opening and closing the door to ensure there is a full seal. If the seal does not come down far enough twist the brass nut out, if it seals too tight twist the brass nut in.

    Once you have followed through with all the instructions your Automatic Door Bottom is good to go! Enjoy years of quality sound, draft and light infiltration control with your new door bottom.

    For additional assistance and product information, feel free to contact us. Our trained and friendly staff will guide you with all your soundproofing needs.




    SHIPPING / PROCESSING TIME:

    This product is part of our QuickShip line and will ship within 1 business day

    If out of stock, shipping may take up to 2 weeks, call to confirm stock.
    • Domestic Shipping Fees- (Hawaii and Alaska not Included):
      • FREE SHIPPING on orders over $300.00 (excludes oversized and freight orders).
      • There will be a flat $19.99 shipping and handling fee on orders under $300.00.
      • Oversize: Orders containing items sized 50" - 95" have an oversize surcharge of $49.99.
      • Freight Items: Orders containing items sized 96" - 108" have an oversize surcharge of $199.99.
      • Oversize Freight Items: Orders containing items sized 109" and above have an oversize surcharge of $299.99.
      • Orders totals above $2,000 will ship free, regardless of size.

    • Alaska and Hawaii, Canada, and International Shipping:
    • Returns:
      • This products can be returned up to 30 days from date of purchase.
      • Custom cut item are not returnable
      • Item must be in new, resalable condition. No restock fee will be applied.
      • CLAIMS FOR SHORTAGE OR DAMAGE IN TRANSIT: All claims must be made within Seven (7) days of receipt of goods.
      • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
      • Return shipping is customer's responsibility. A return address will be provided with RMA#.
      • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
