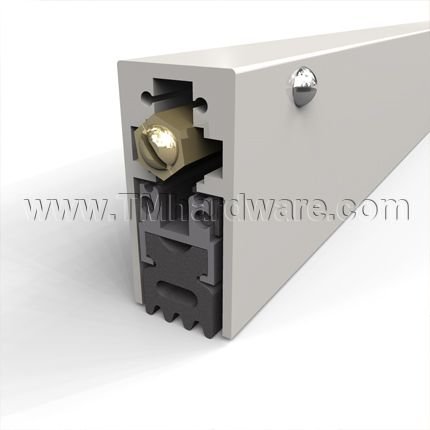

Zero #361, Automatic Door Bottom, Surface Mounted, Heavy Duty, Sponge Neoprene Seal, 1" Drop

Zero #361, Automatic Door Bottom, Surface Mounted, Heavy Duty, Sponge Neoprene Seal, 1" Drop
Zero International
Read 9 reviews

Need it fast? Our Similar Product  Barzen #AS20 Automatic Door Bottom — ships next business day at a lower price. Available in custom sizes

This Zero International #361 Surface Mounted, Heavy Duty, Sound Rated Automatic Door Bottom provides the best sound seal possible for normal sound levels, and will prevent infiltration of light, drafts and more. Equipped with a long lasting, high-quality sponge neoprene seal and mechanism that has been tested to 5 million openings and closings. Rated for fire, smoke and sound infiltration and available in various anodized finishes. Length is custom cut to size. View more details in the description below.

To determine sizing needed for your door bottom, see How to Measure for an Automatic Door Bottom.

See tabs below for additional information
    • SKU
      ZR361AA|36
      • 39% off
      Market price: $204.84 save $80.16
    • Starting price: Price: $124.68 per item


    This Zero International #361 Surface Mounted, Heavy Duty, Sound Rated Automatic Door Bottom provides the best sound seal possible for normal sound levels, and will prevent infiltration of light, drafts and more. Equipped with a long lasting, high-quality sponge neoprene seal and mechanism that has been tested to 5 million openings and closings.

    Installation:  Installation instructions and screws included. Screws are colored to coordinate with casing.

    Insert Replacement: Click here to purchase a Sponge Neoprene Replacement Seal for this product.

    About Light Spring Strength:  Light Spring Strength requires less operating force to activate than standard Strength. Light Spring is compatible with ADA Compliant Doors and can be easily used by those with limited mobility. Can also be applied to sliding doors. Casing dimensions remain the same. Select from options above if required.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    See also our Zero International #367 High Sound Automatic Door Bottom for even higher sound control.

      • SKU
        ZR361AA|36
    • QuickShip
      No
    • Manufacturer
      Zero International
    • MPN
      361
    • Product Design
      • Mounting Type
        Surface Mounted
      • Door Type
        Wooden Door, Hollow Metal Door
    • Dimensions
      • Casing Dimensions

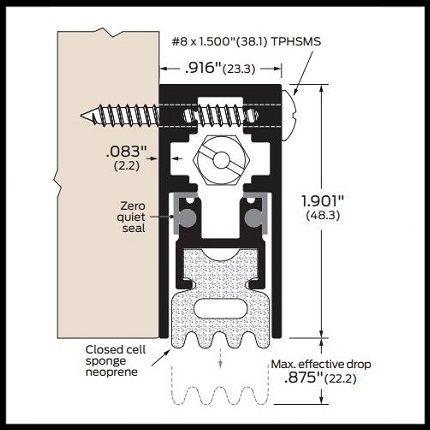

        Casing measures 1.901" by .916". Made of .093" thick aluminum.
      • Length
        Custom Cut to Size
      • Drop Size
        Up to 1" Drop
    • Installation
      • Handing
        Non-Handed
      • Installation Screws
        Installation Screws Provided
      • Sizing
        To determine sizing required see 'How to Size an Automatic Door Bottom'
    • Special Features
      • Compatible Insert Replacement
        #363N Sponge Neoprene Replacement
    • Finishes
      • Finish

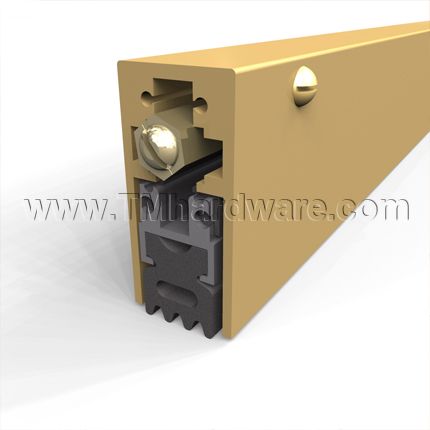

        Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), Gold Anodized Aluminum, Flat Black (US19)
    • Compliance Details
      • Compliance Details
        Fire Rated, Air Infiltration Rated, Sound Rated, BHMA Certified
      • ANSI Designation
        R3C3341
      • Warranty
        1 Year Limited Warranty

    Automatic Door Bottoms utilize a concealed flat spring mechanism and plunger. When the door is closed, a brass plunger is compressed to automatically lower the seal, starting from the hinge side first. This motion ensures a smooth usage even on an uneven surface and prevents drag. The seal is automatically raised upon opening. These automatic door bottoms have been successfully tested through 5 million cycles!

    See also About Automatic Door Bottoms.

    Click here for a Printable Copy of How to Install an Automatic Door Bottom.

    Automatic Door Bottoms are available with three mounting options: Surface Mounted, Semi-Mortised and Fully Mortised. A surface mounted application can be applied without removing the door from its hinges. For a semi-mortised, if the rabbet in the door is cut-out already, the door does not need to be removed. For a fully mortised application the door should be removed before starting.

    STEP 1: SIZING YOUR DOOR BOTTOM

    Once your door is ready for installation you need to determine the size required for your door bottom:

    • For a Surface Mounted Application: Measure the distance between the two stop moldings, or if a perimeter door gasket is applied, measure the distance between the two installed gaskets, then minus 1/8-1/4"” (.125”) from the total distance. That is the size needed for your door bottom.
    • For a Semi-Mortised and Fully Mortised Application: Measure your door from side to side; that is the measurement needed for your automatic door bottom.

    For visual presentation see How to Measure for an Automatic Door Bottom.

    How to Install an Automatic Door Bottom- Figure 1

    Once you have determined the size needed, if necessary, trim your door bottom. Use a chop saw or table saw to create a perfectly straight cut.

    Note, Only trim opposite the actuating plunger, brass nut. (Trimming from the brass nut side will ruin your ADB).



    How to Install an Automatic Door Bottom- Figure 1You can trim from the edge up to one inch of the screw in the side wall of the ADB.


    STEP 2: PREP FOR ATTACHING AUTOMATIC DOOR BOTTOM

    How to Install an Automatic Door Bottom- Figure 3Surface Mounted and Semi-Mortised models need to be applied to the push side of the door only (the side with the door stops). The actuating plunger needs to be applied to the hinge side of the door for all applications.

    Place the automatic door bottom against the door

    Once you have the automatic door bottom leveled and positioned correctly, with a pencil or marker mark where the attachment screws need to be drilled.

    STEP 3: ATTACHING THE AUTOMATIC DOOR BOTTOM

    How to Install an Automatic Door Bottom- Figure 4

    To make installation easier you can drill a pilot hole which will ensure you attach the door bottom to the correctly marked spot. With the screws provided, screw in the automatic door bottom.

    In some models, a plate is provided for the hinge side of the frame. This will protect the door frame from getting worn down by the actuating plunger. If provided, attach to corresponding point on the frame.


    STEP 4: TESTING YOUR AUTOMATIC DOOR BOTTOM

    How to Install an Automatic Door Bottom- Figure 5Now that the door bottom is attached, test the door bottom by opening and closing the door to ensure there is a full seal. If the seal does not come down far enough twist the brass nut out, if it seals too tight twist the brass nut in.

    Once you have followed through with all the instructions your Automatic Door Bottom is good to go! Enjoy years of quality sound, draft and light infiltration control with your new door bottom.

    For additional assistance and product information, feel free to contact us. Our trained and friendly staff will guide you with all your soundproofing needs.




    SHIPPING / PROCESSING TIME:

    This product ships directly from the manufacturer.
    This product ships directly from the manufacturer.
    Please allow 2 - 3 weeks to ship



    • Domestic Shipping Fees- (Hawaii and Alaska not Included):
      • FREE SHIPPING on orders over $300.00 (excludes oversized and freight orders).
      • There will be a flat $19.99 shipping and handling fee on orders under $300.00.
      • Oversize: Orders containing items sized 50" - 95" have an oversize surcharge of $49.99.
      • Freight Items: Orders containing items sized 96" - 108" have an oversize surcharge of $199.99.
      • Oversize Freight Items: Orders containing items sized 109" and above have an oversize surcharge of $299.99.
      • Orders totals above $2,000.00 will ship free, regardless of size.

    • Alaska and Hawaii, Canada, and International Shipping:
    • Returns:
      • This product is custom made and is not returnable.
      • We are committed to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 30% restock fee.
      • CLAIMS FOR SHORTAGE OR DAMAGE IN TRANSIT: All claims must be made within Seven (7) days of receipt of goods.
      • Weatherstripping products will not be considered for returns.
      • Item must be in new, re-saleable condition.
      • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
      • Return shipping is customer's responsibility. A return address will be provided with RMA#.
      • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
    4.2
    9 Reviews
    75% would recommend this to a friend

    Ratings Distribution

    5 Stars 77.78 7
    4 Stars 0 0
    3 Stars 0 0
    2 Stars 11.11 1
    1 Star 11.11 1

    Pros

    • 3 Durable
    • 3 Easy To Use
    • 3 Good Design
    • 3 Quality Materials

    Reviewed by 9 customers

    2

    Not worth the premium

    Comments about Zero #361, Automatic Door Bottom, Surface Mounted, Heavy Duty, Sponge Neoprene Seal, 1" Drop

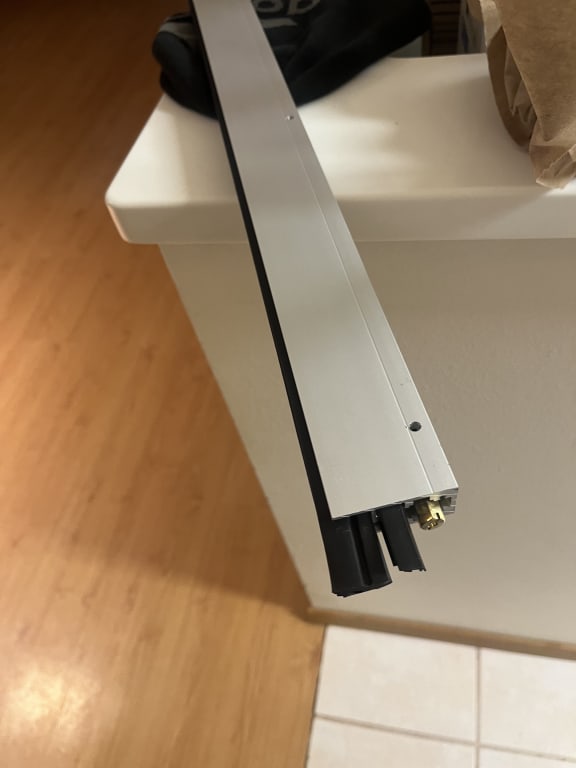

    While I'm still hopeful that the product will help reduce noise coming from my kitchen, the finish work is not what I expect for the price. Trademark was straightforward in purchase communication and updates pre and post shipping. The mounting holes still had burrs, there were aluminum shavings remaining, it was scratched before arriving, and the set screw countersunk looks to have been done by an amateur. For the good, the length cut is square and finished nicely, the interior mechanism operates as expected, and the light spring is a neat option.
