TMH Door Gasket, Basic Casing with Neoprene Seal, 36" x 84" Set - QuickShip

Quality Basic Door Gasket with enhanced solid neoprene seal will ensure a secure seal around the header and jambs of door frames. Door gasket is rated for fire, smoke and sound filtration. Available in two finishes and is available in set of 36" Header and two 84" Jambs.

PRICED PER SET - See full product details and specs in the tabs below

Available in stock sizes - Sets of 36" Header and two 84" Jambs ship within 1 Business Day! For custom sizes, see our full product Door Gasket, Basic Casing with Neoprene Seal

See tabs below for additional information

Quantity

Add to compare

This is a QuickShip product, available in stock sizes only - for custom sizes see our full product Door Gasket, Basic Casing with Neoprene Seal

Quality Basic Door Gasket with enhanced solid neoprene seal will ensure a secure seal around the header and jambs of door frames.

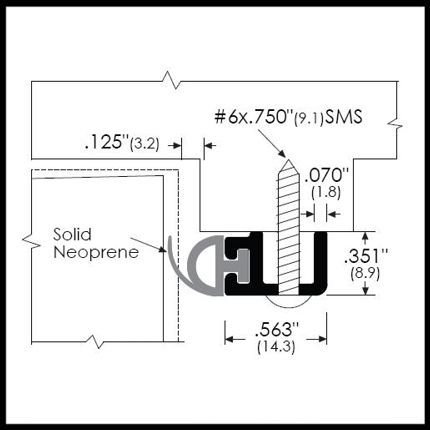

Dimensions: Casing measures .563" x .351". It is recommended for gaps up to .125"

Size: Product is sold in sets of 36" Header and two 84" Jambs.

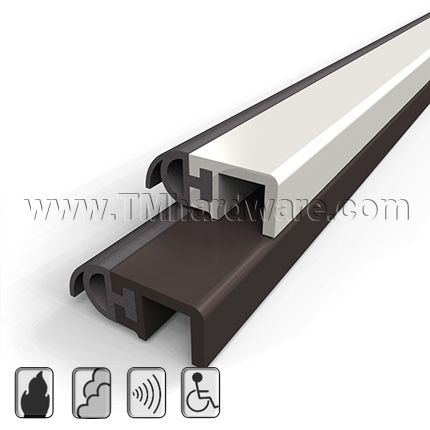

Finish: Aluminum Mill, Dark Bronze Anodized.

Seal: This door gasket is fitted with an enhanced Solid Neoprene Seal. The extruded bulb and finger design has great compression properties. The protruding lip ensures the seal is properly maintained, even if the door is slightly warped, due to aging or improper installation.

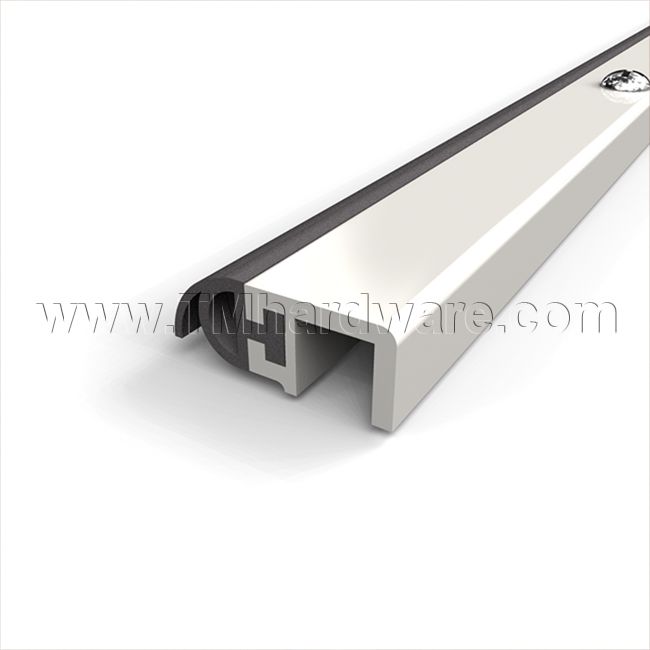

Casing: Casing is made of high quality .070" thick anodized aluminum that will retain its color and shape, even through constant usage.

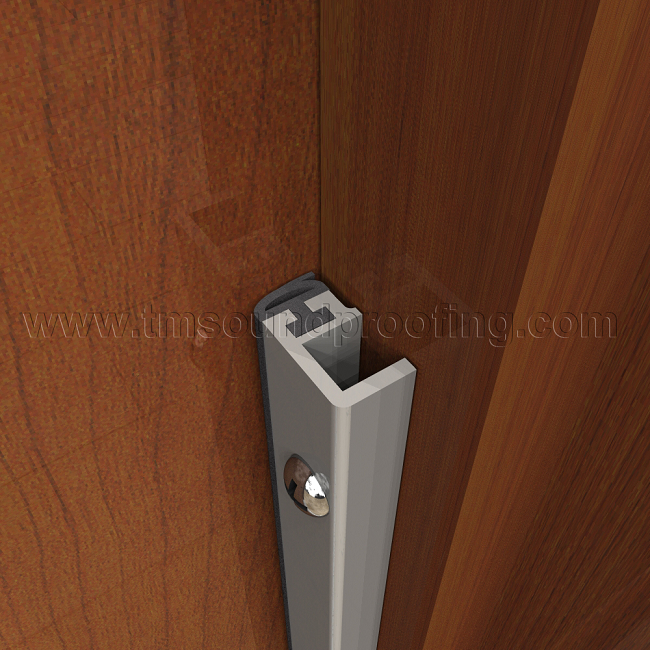

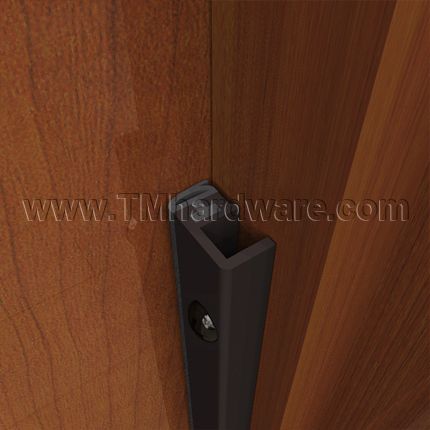

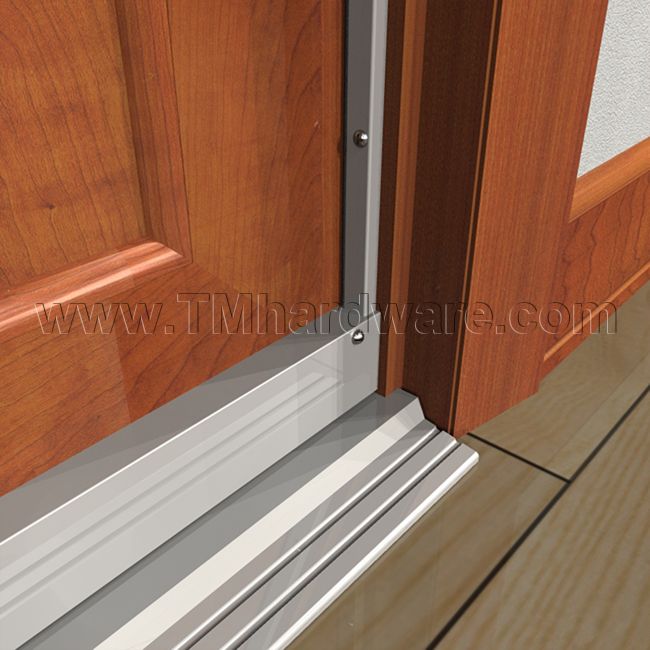

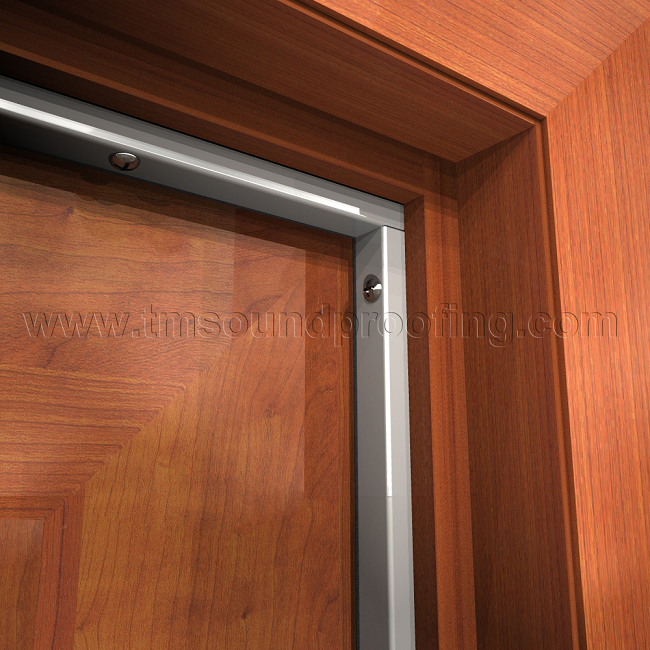

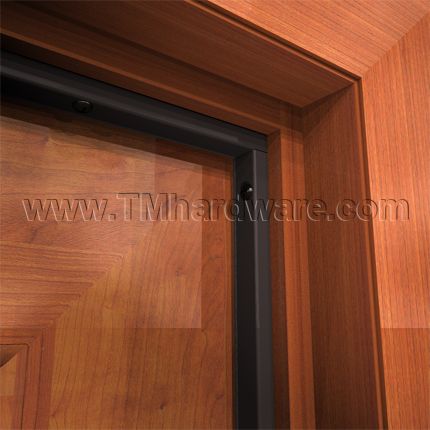

Installation: Door gasket is designed to be installed directly onto a door stop. The casing is drilled with slotted screw holes to allow for slight adjustment during installation. All installation screws are provided, and screws are colored to coordinate with casing.

Additional Applications: Can also be used for window soundproofing. Simply install onto sill to seal gap between sill and window pane.

Compliance Details: Gasket is rated for fire, smoke and sound filtration and is UL Listed.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

For an adjustable option, see our Adjustable Door Gasket with Neoprene Seal.

- Weight
  6 lbs
- SKU
  TH485A
QuickShip
Yes
Manufacturer
Trademark Hardware
MPN
485
Finishes
- Finish
  Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)

5.0

3 Reviews

Ratings Distribution

5 Stars 100 3

4 Stars 0 0

3 Stars 0 0

2 Stars 0 0

1 Star 0 0

Reviewed by 3 customers

I would buy again

Comments about TMH Door Gasket, Basic Casing with Neoprene Seal, 36" x 84" Set - QuickShip

basic and well made

By Steven

Verified Buyer

I would buy this product again.

Comments about TMH Door Gasket, Basic Casing with Neoprene Seal, 36" x 84" Set - QuickShip

This product was easy and flexible to install. Also, did it's job well reducing noise.

By david

Verified Buyer

Great.

Comments about TMH Door Gasket, Basic Casing with Neoprene Seal, 36" x 84" Set - QuickShip

Using this to seal door edges for a recording studio. Creates a good seal. Only problem is, I was unsure how much compression to allow for when placing screws. Turns out the amount of seal compression I expected to work well created so much pressure on the door that it became very difficult to fully close. Required some filing to adjust. Otherwise a fantastic product.

By Paul

Verified Buyer

Click to Print Product Specs

Compliance Details for Door Gasket 485 from Zero International

Product complies with the following ANSI / BHMA Codes:

Head and Jamb Application: R3B164
Applied Stop Application: J32120
