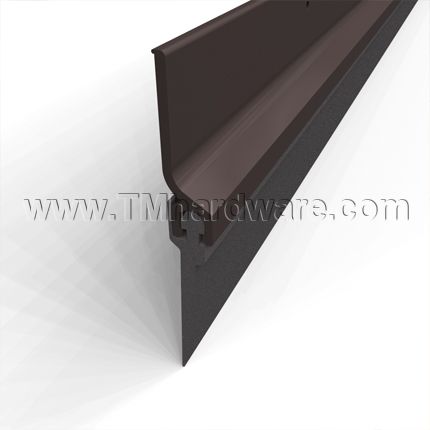

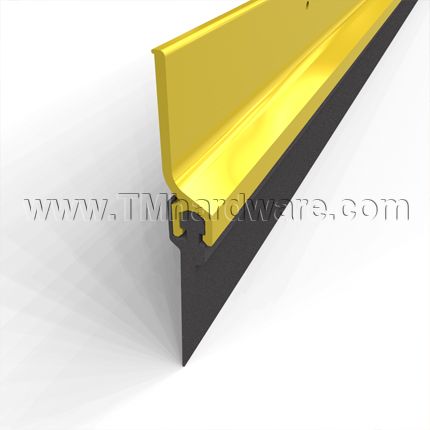

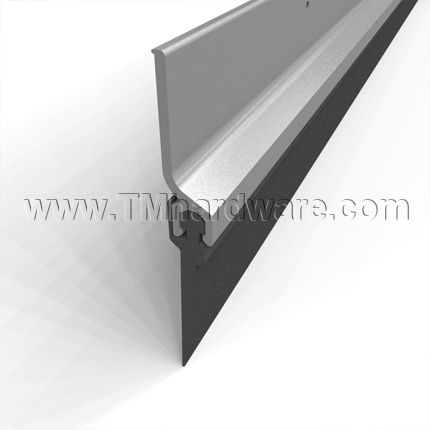

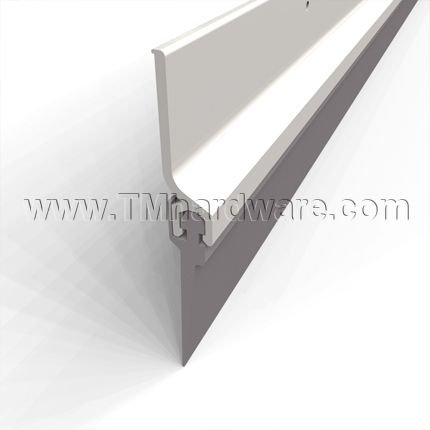

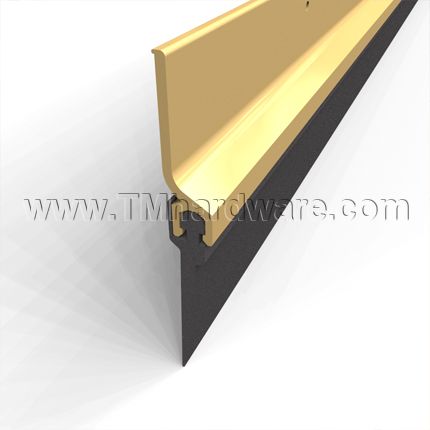

This door sweep can be used to seal up to a 1" the gap between the door and threshold or to the floor surface. It is fitted with a PemkoPrene™ or Eco-V™ (Vinyl) extrusion. Its fire and smoke rated and can be rated for low VOC Emission, see note below. Available in choice of aluminum finishes and is custom cut to size.
SOLD BY THE FOOT.
Need it sooner? Stock sizes and finishes are available to ship within 1 business day. See our Pemko #307 Door Sweep - QUICKSHIP.

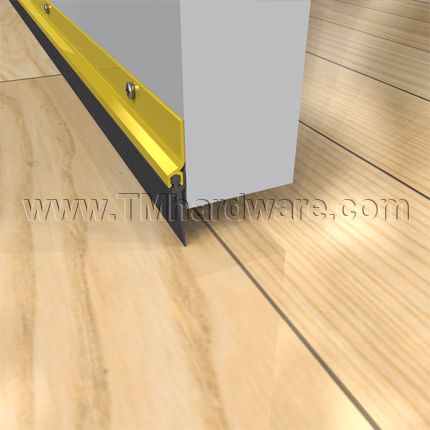

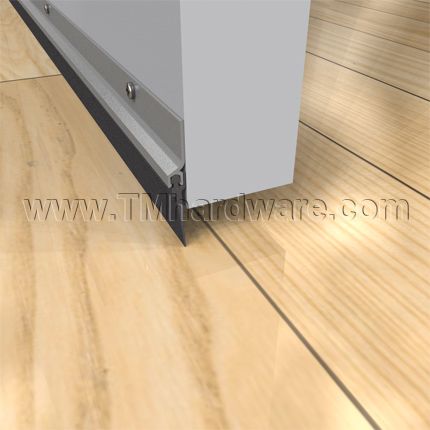

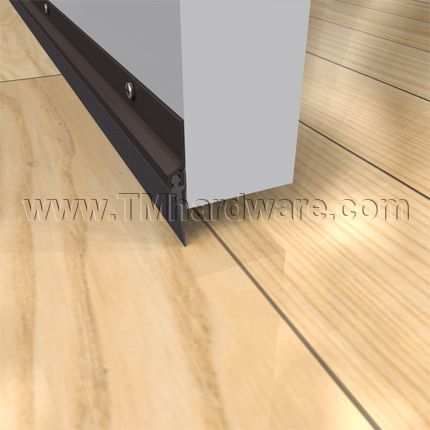

This door bottom is surface mounted to the face of a door. It is used to seal a door to a threshold or the floor surface. The 7/8" aluminum channel is fitted with a PemkoPrene™ or Eco-V™ (Vinyl) extrusion that can seal gaps up to 1".
The PemkoPrene™ is a thermo-plastic elastomer (a higher quality rubber than vinyl), which stays flexible in temperatures from -70° to +250°F, making it an ideal cold weather seal, and ensures a longer lasting door bottom than the vinyl insert. Eco-V is comparable to vinyl, though it is a newer, greener and more environmentally friendly version and surpasses the quality and durability of standard vinyl. See Insert Material Tab for more information.
Installation instructions and screws provided. Screws are colored to coordinate with casing.
Insert Colors: Aluminum Mill Finish and Clear Anodized is supplied with a gray insert; All other finishes are supplied with a black insert. Other combinations can be requested. Call us at 845-388-1300.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.
This product can be purchased with a PemkoPrene™ or Eco-V (Vinyl) Insert.
PemkoPrene™ (Thermo-Plastic Elastome -TPE, Thermo-Plastic Rubber-TPR): A common trade name for PemkoPrene is “SantoPrene”. This material possesses the same flexibility and durability common to natural rubber compounds. Additionally, PEMKO has selected these materials because of their outstanding resistance to cleaning fluids and disinfectants as well as for their everyday resilience and low impedance to opening or closing requirements on door assemblies.
Eco-V™(Vinyl): This rubber is comparable to PVC Vinyl (listed in chart below). However, Eco-V is newer, greener and more environmentally friendly version of PVC Vinyl. It has been tested for a number of harmful chemicals and has low Volatile Organic Compound (VOC) Emissions, to ensure they are safe for indoor environments, especially schools and healthcare facilities. Eco-V complies with UL Listed Green Guard requirements and aids in achieving or exceeding criteria in green building ratings programs, such as LEED and Collaborative High Performance Schools (CHPS). Additionally, Eco-V surpasses the quality and durability of traditional vinyl gasketing, resulting in a longer service life and less need for replacement.
Click to View Ratings Explained
* GREENGUARD GOLD applies only to Eco-V (Vinyl) Seal.
Finishes Comply with the Following ANSI / BHMA Codes:
