Pemko #321 Door Bottom, Aluminum Casing with .9" Neoprene Seal

This door bottom is fitted with a .938" (15/16”) neoprene extrusion which is smoke, fire and air infiltration rated. It has a 1” casing which is surface applied to create a seal between the door bottom and floor surface. Available in choices of anodized finishes and is custom cut to size.

SOLD BY THE FOOT.

See tabs below for additional information

Finish
Size

Quantity

Add to compare

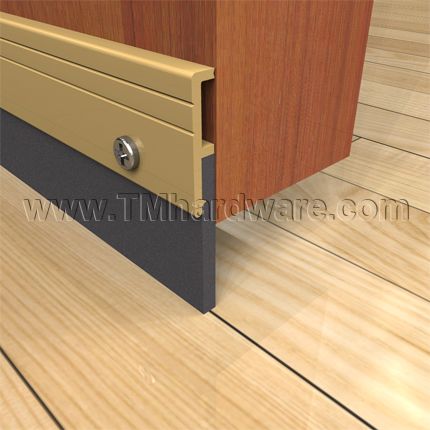

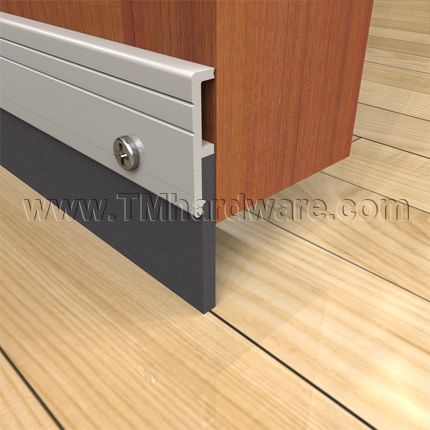

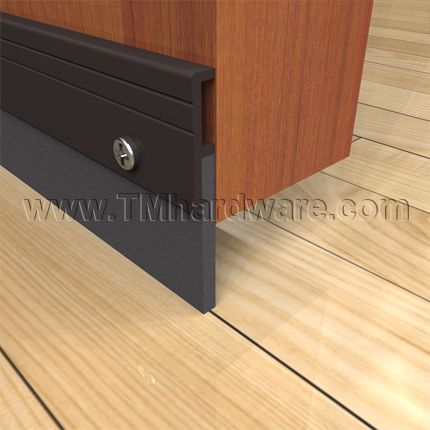

This door bottom sweep is surface applied to the bottom of the door to seal the gap between the door bottom and floor surface. It has a 1” aluminum anodized casing which is fitted with a .938” (15/16”) fire, smoke and air infiltration rated neoprene extrusion.

The seal is made of high quality, dense material which will provide ongoing superior performance and will not impede proper operation of door. Casing has a sleek design which is great for homes, offices and upscale facilities.

Installation instructions and screws provided.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our full Warranty Policy.

Also available in a Stainless Steel version, see our Stainless Steel Door Bottom with .56" Neoprene Seal.

- SKU
  PK321CN
QuickShip
No
Manufacturer
Pemko Manufacturing
MPN
321
About this Product
- Door Shoe Retainer Material
  Aluminum
- Door Type
  Wooden Door, Metal Door
- Seal Type
  EPDM Rubber Seal
- Mounting
  Surface Mounted

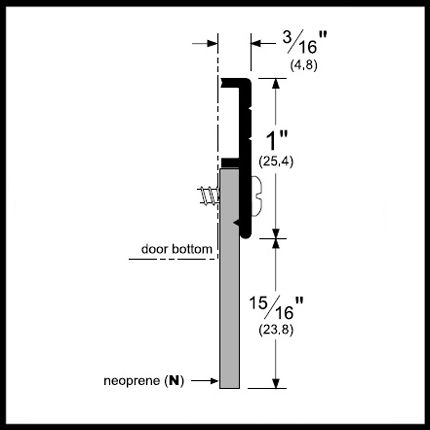

Dimensions
- Seal Height
  15/16" Height
- Total Height
  1-15/16" Height
- Additional Dimensions
  Seal is 3/16" thick
Installation
- Drill Holes
  Drill holes are provided
Finishes
- Finish
  Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), Flat Black (US19)
Compliance Details
- Compliance Details
  Air Infiltration Rated, Smoke Rated, Fire Rated, BHMA Certified
- Warranty
  5 Year Limited Warranty

Click to Print

P321 Product Specs:

Click to Print

P321 Installation Guide:

Click to View Ratings Explained

Finishes Comply with the Following ANSI / BHMA Codes:

Clear Anodized Aluminum - US28 / 628
Dark Bronze Anodized Aluminum - US10B / 710
Gold Anodized Aluminum - US4 / 688
