Pemko #STC411 Automatic Door Bottom, for Acoustic Soundproofing with Narrow Mortised Casing - .75" Drop

Pemko #STC411 Acoustic Automatic Door Bottom
  • 1-3/8" Door
Pemko Manufacturing
Read 1 review

This Acoustic Automatic door bottom is specifically designed to soundproof doors 1-3/8" thick or above. When the door is closed it automatically lowers a drop bar seal to create a "sealed-in-place" type performance. Casing is made of aluminum, is fully mortised and works on both right and left handed doors. Available in custom sizes.

Need it sooner? Stock sizes are available to ship within 1-3 business days. See our Pemko #STC411 Automatic Door Bottom, for Acoustic Soundproofing with Narrow Mortised Casing - .75" Drop, Mill Finish Aluminum - QuickShip

PRICED PER ITEM

See tabs below for additional information
    • SKU
      PKSTC411APKL|36
      • 19% off
      Market price: $114.48 save $21.75
    • Starting price: Price: $92.73 per item


    Click here for our Quick Ship TMH Mortised Automatic Door Bottom. Stock size -  36" length is available to ship within 1 business day!

    The acoustic automatic door bottom is specifically designed for acoustic openings. Independent testing has shown that the STC Series Automatic Door Bottom has "sealed-in-place" type performance and has a smoother action positive seal mechanism.

    To determine size needed, see How to Measure for an Automatic Door Bottom.

    Need it sooner? Stock sizes are available to ship within 1-3 business days. See our Pemko #STC411 Automatic Door Bottom, for Acoustic Soundproofing with Narrow Mortised Casing - .75" Drop, Mill Finish Aluminum - QuickShip

    Door Thickness: Model is compatible with 1-3/4" and 1-3/8" thick doors. However, different end plates are required for each door. Please select from options above.

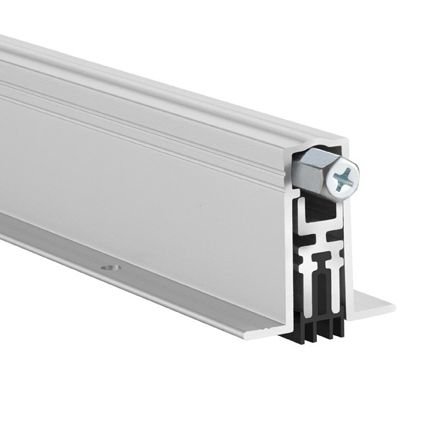

    Material: 6063-T6 Aircraft Aluminum

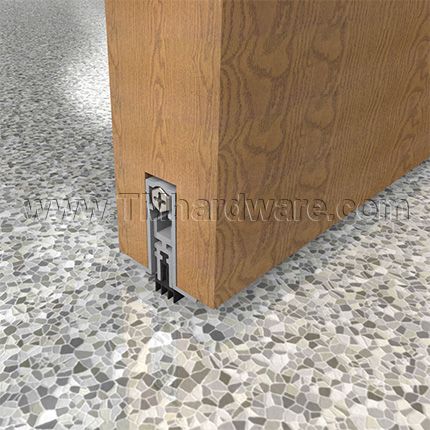

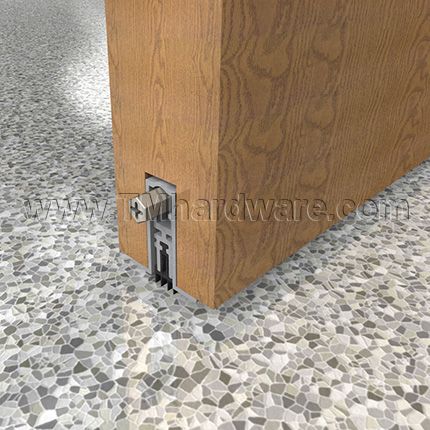

    Mounting:  Door bottom fully mortised so it does not alter the appearance of the door, making it perfect for decorative doors, upscale condos, dormitories, commercial buildings and luxurious hotels.

    Handing: Non-handed, can be used on both right and left handed doors.

    Installation: Installation guide, end caps and fasteners are provided.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    See also our Pemko #411APK Standard Duty Automatic Door Bottom.

      • SKU
        PKSTC411APKL|36
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      STC411
    • Product Design
      • Mounting Type
        Fully Mortised
      • Door Type
        Wooden Door
    • Dimensions
      • Casing Dimensions

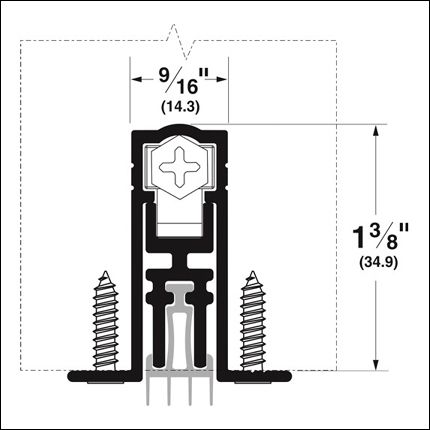

        Body measures .562" W x 1.375" H. Extended flanges on both sides measure .42".
      • Length
        Custom Cut to Size
      • Drop Size
        Up to .75" Drop
      • Suggested Door Cut-Out
        1.5" H x .625" W
      • Door Thickness
        1-3/4" Thick, 1-3/8" Thick
    • Installation
      • Handing
        Non-Handed
      • Installation Screws
        Installation Screws Provided
      • Sizing
        To determine sizing required see 'How to Size an Automatic Door Bottom'
    • Finishes
      • Finish
        Mill Finish Aluminum (US27)
    • Compliance Details
      • Compliance Details
        Air Infiltration Rated, Sound Rated, BHMA Certified, Smoke Rated, Fire Rated, UL Classified
      • ANSI Designation
        R3G324, R3G235
      • Warranty
        5 Year Limited Warranty
