PC Henderson H200A Sliding Door System, Aluminum Track, 200 Lbs.

Actual Image of H200A Sliding Door System
PC Henderson
Read 1 review

This Sliding door series includes all the parts necessary to install sliding door panels weighing up to 200 lbs. in a single or bi-parting configuration. The track is made of sturdy aluminum. Choose between overhead and side wall mounting options.

PRICED PER SET - See full product details and specs in the tabs below.

See tabs below for additional information
    • SKU
      PHH200A/4
      • 10% off
      Market price: $65.59 save $6.56
    • Starting price: Price: $59.03 per set


    Key Product Features:

    • Sliding Door System with Aluminum Track
    • Overhead and Side Wall mounting options
    • 200 lbs. door panel weight
    • Nickel plated zinc alloy hanger body for durability and long life
    • Smooth rolling acetal wheels

    Included Parts: See product specs and detailed images for visual aid

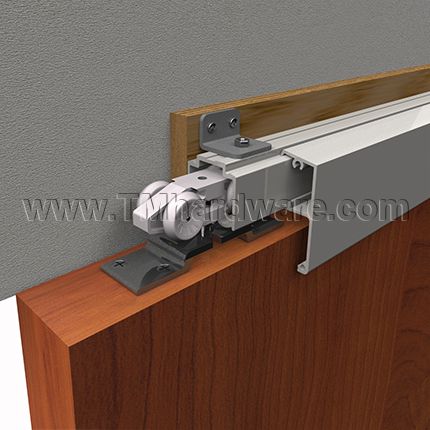

    Side Wall Mounting Option:

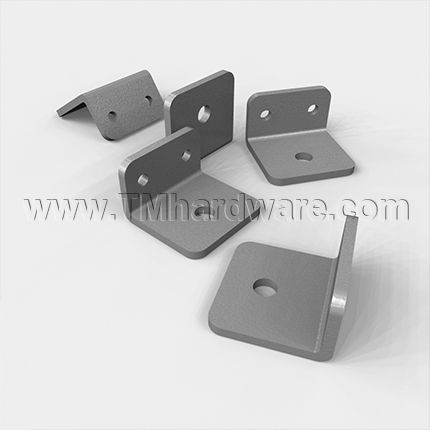

    • Include Aluminum Brackets for side wall mounting. The side wall bracket reduces the amount of wall space needed to mount the track. (P2815)
    • Note: 1 side wall track bracket is required at each end and no more than 3 feet in between. Appropriate number of brackets come according to length ordered. Fasteners included.

    Materials: A sturdy aluminum upper track holds the hanger. Compared to the similar steel version, the aluminum track extrusions are lighter and are shaped to fit a compact and neat looking snap-on fascia track cover and end plates which the smooth steel track cannot accommodate. ­

    Configurations:

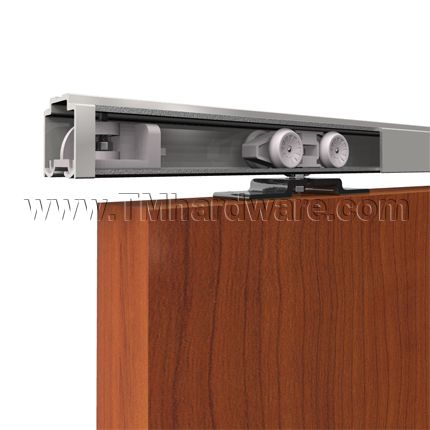

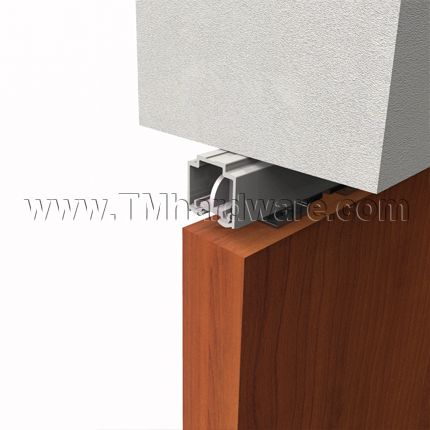

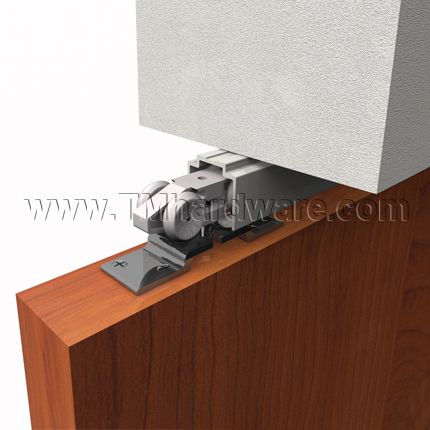

    • Overhead Mount
    • Side Wall Mount
    • Single Door Panel
    • Bi-parting Door Panels - Additional hardware required when using bi-parting installation. To order please contact us or call (845) 388-1300.

    Dimensions and Installation Information: See product specs and installation instructions in tabs to the right.

    Additional Customization Options: Including dual bottom guide, roller guide, guide channel and surface mounted door thresholds are available. See customization tab to the right and detailed images above for more on these products.

    Please note, detailed images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 5 year guarantee against defects in material and workmanship.

    Click to view our Full Warranty Policy.

    Many variations of sliding doors are available. See the similar Sliding Door Series with a Steel Track.

      • SKU
        PHH200A/4
    • QuickShip
      No
    • Manufacturer
      PC Henderson
    • MPN
      H200A
    • About This Product
      • Mounting Type
        Overhead Mount, Sidewall Mount
      • Door Mount
        Surface Mount
      • Track Type
        Box Track
      • System Type
        Single Sliding

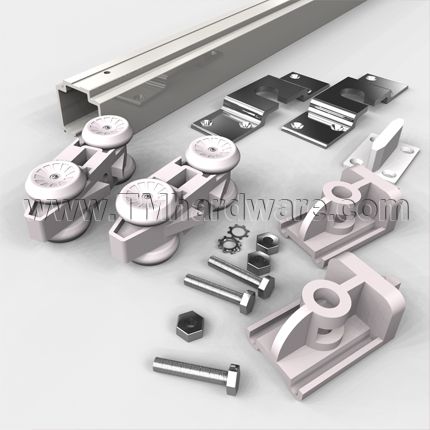

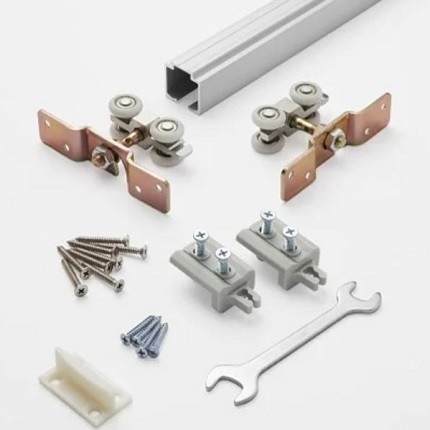

      • Included Parts
        Clear Anodized Aluminum Track - 280C (1 ea.)
        Nickel plated zinc alloy hanger body for durability and long life. Wheels made of acetal - H22R1 (2 ea.)
        In-Track Nylon Bumper Stop – 286 (2 ea.)
        White Nylon Bottom Mortise Guide - 102N (1 ea.)
        Adjusting Wrench and Mounting Hardware (1 ea.)
        Side Wall Mounting Option will also include:
        Aluminum Brackets for side wall mounting – P2815 (Pack of 5)
      • Material
        Aluminum
    • Dimensions
      • Door Panel Weight
        200 Lb Doors
      • Track Length
        48" Length, 64" Length, 72" Length, 84" Length, 96" Length, 120" Length, 144" Length
    • Finishes
      • Finish
        Clear Anodized Aluminum (US28)
    • Compliance Details
      • Warranty
        5 Year Limited Warranty

    Click to Print Product Specs

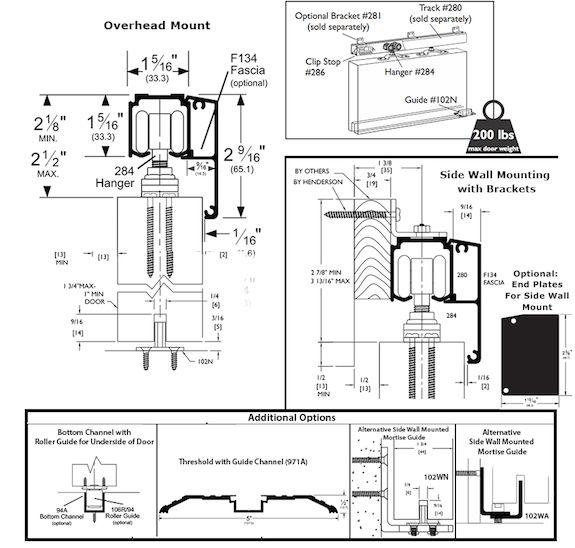

    H200A Sliding Door Hardware Product Specs

    Standard Kit Sizes:

    Door Size Chart for H200A

    Click to Print Installation Guide.

    H200A Sliding Door Harware Installation Instructions

    Finishes Comply with the Following ANSI / BHMA Codes:
    • Aluminum Mill Finish - US27 / 719

    To order any of these options, please contact us or call us at (845) 388-1300.

    1. Snap–On Fascia Cover (F134C): Aesthetic, clear anodized aluminum cover for concealing hangar, track, and wheels. When using fascia, offset hanger foot 1⁄8" closer to fascia face of the door. See detailed images.

    2.Bottom Channel (94A): Used as a guide channel when using a Roller Guide. Roller guide is used instead of a mortise guide (described below).

    3. Roller Guide (106R/94): In place of a mortise in the bottom of the door for the bottom guide, this roller guide can be installed at the bottom of the door and used with a guide channel (94A).

    4. Aluminum, 5” Wide Threshold with Guide Channel (971A): Used in place of a bottom channel with all the benefits of a threshold. Please contact us to order.

    5. End Plate Kit (K134EP): For a neat, aesthetic finish, place end plates at both ends of installed side wall track and bracket to conceal track interior. Use with 134C Fascia Cover if desired.
