Zero #253 Door Sweep, Mortised Track with .187" Fingered Neoprene Seal

Need it fast? Our Similar Product Barzen SRM10 Door Sweep — ships next business day at a lower price. Available in custom sizes

This Zero #253 door bottom sweep provides reliable sill protection, while maintaining the clean and neat look of the door. It is fitted with a smoke rated solid neoprene fingered insert that will effectively minimize infiltration of dust, smoke, drafts and moisture. Available in aluminum mill finish, and is custom cut to size.

PRICED PER FOOT.

See tabs below for additional information

Length

Quantity

Add to compare

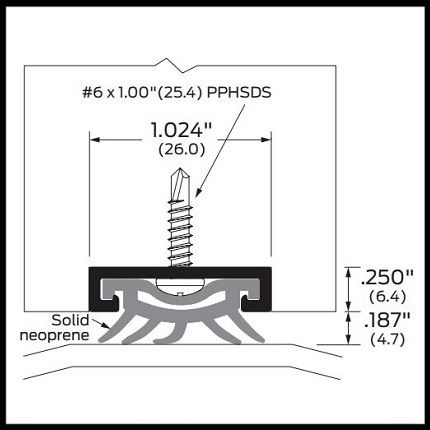

This smoke rated door sweep provides reliable sill protection while still maintaining the clean and neat look of the door. It is comprised of an aluminum casing which is fully mortised within a slot of 1.024" (w) x .25" (h). The track is fitted with a solid neoprene fingered insert which can fill gaps up to .187". The seal is made with high quality material that will last through many usages and ensure smooth operation. The seal remains flexible in all weather conditions and conforms well to surface irregularities.

It is recommended that this product be used in conjunction with a Doorway Saddle.

The fully mortised aspect of this product makes it ideal for high end designer doors and luxury hotels and condo units that seek to maintain a clean look for on doors.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size many be enlarged to show detail. See product specs for exact measurements.

This product has a 1 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

For a surface mounted option, see our Zero International #111 U-Shaped Door Shoe Sweep with Fingered Neoprene Seal.

- SKU
  ZR253
QuickShip
No
Manufacturer
Zero International
MPN
253
About this Product
- Door Shoe Retainer Material
  Aluminum
- Door Type
  Wooden Door, Metal Door
- Seal Type
  Neoprene Rubber Seal
- Mounting
  Fully Mortised
Dimensions
- Seal Height
  .187" Height
- Total Height
  .437" Height
- Additional Dimensions
  Door seal is 1.024" thick
- Length
  Custom Cut to Size
Installation
- Drill Holes
  Drill holes are provided
- Installation Screws
  #6 x 1.00" (25.4) PPHSDS Provided
Special Features
- Add Unnotched Seal
  Yes
Finishes
- Finish
  Clear Anodized Aluminum (US28)
Compliance Details
- Compliance Details
  Smoke Rated, Fire Rated, BHMA Certified
- ANSI Designation
  R3B424
