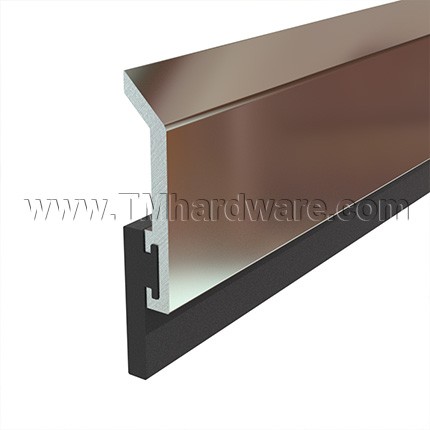

Pemko #315N Door Bottom, Aluminum or Bronze with .438" Neoprene Seal

This door bottom, with a 1.25" sleek aluminum casing is fitted with a neoprene extrusion which is smoke, fire and air infiltration rated. It is surface applied to create a seal between the door bottom and threshold / floor surface. Available in Bronze and various anodized aluminum variations. It is custom cut to size.

Need it sooner? Stock sizes and finishes are available to ship within 1-3 business days. See our Pemko #315N Door Bottom, Aluminum or Bronze with .438" Neoprene Seal, Clear Anodized Aluminum - QuickShip

PRICED PER FOOT

See tabs below for additional information

Finish
Size

Quantity

Add to compare

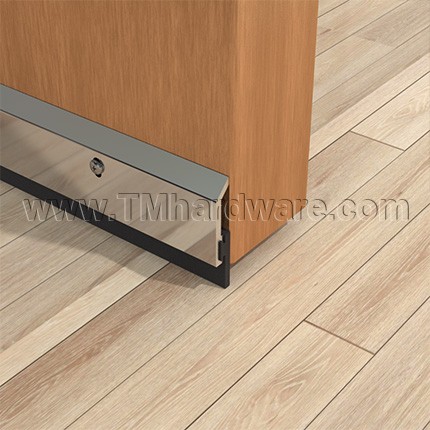

This door bottom is surface applied to create a seal between the door bottom and threshold / floor surface. It is fitted with a fire, smoke and air infiltration rated neoprene extrusion. Encased in a 1.25" high quality aluminum / brass casing, it is surely long-lasting and will provide ongoing superior performance and will not impede proper operation of door. Available in various different finishes and is custom cut to size.

Installation instructions and screws provided. Screws are colored to coordinate with casing.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

Click here to return to our Rubber Door Bottom category page.

- SKU
  PK315CN
QuickShip
No
Manufacturer
Pemko Manufacturing
MPN
315
About this Product
- Door Shoe Retainer Material
  Aluminum, Bronze
- Door Type
  Wooden Door, Metal Door
- Seal Type
  Neoprene Rubber Seal
- Mounting
  Surface Mounted

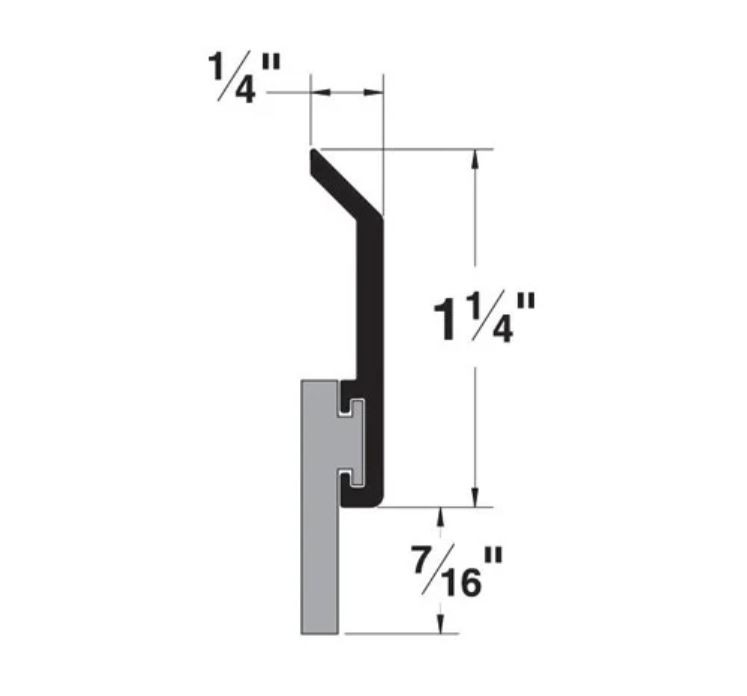

Dimensions
- Seal Height
  7/16" Height
- Total Height
  1-11/16" Height
- Additional Dimensions
  Door seal is 1/4" thick
- Length
  Custom Cut to Size
Installation
- Drill Holes
  Drill holes are provided
Finishes
- Finish
  Clear Anodized Aluminum (US28), Oil Rubbed Bronze, Equiv. (10BE), White Suede Powder Coat, Bronze Mill Finish (Brass)
Compliance Details
- Compliance Details
  Fire Rated, Air Infiltration Rated, Smoke Rated, BHMA Certified, UL Classified, Sound Rated
- ANSI Designation
  R3B434, R3B435
- Warranty
  5 Year Limited Warranty

Click to Print Product Specs 81.1 kB

Click to Print

P315 Installation Guide:

Click to View Ratings Explained

Finishes Comply with the Following ANSI / BHMA Codes:

Clear Anodized Aluminum - US28 / 628
Dark Bronze Anodized Aluminum - US10B / 710
Bright Dip Gold Anodized Aluminum - US3 / 707
Gold Anodized Aluminum - US4 / 688
Satin Nickel Anodized Aluminum - US15 / 619
Painted White Aluminum - 714
Bronze Mill Finish - US4 / 72

SHIPPING / PROCESSING TIME:

This product ships directly from the manufacturer.

Please allow 2 - 3 weeks to ship

Domestic Shipping Fees- (Hawaii and Alaska not Included):
- FREE SHIPPING on orders over $300.00 (excludes oversized and freight orders).
- There will be a flat $19.99 shipping and handling fee on orders under $300.00.
- Oversize: Orders containing items sized 50" - 95" have an oversize surcharge of $49.99.
- Freight Items: Orders containing items sized 96" - 108" have an oversize surcharge of $199.00.
- Oversize Freight Items: Orders containing items sized 109" and above have an oversize surcharge of $299.99.
- Orders totals above $2,000.00 will ship free, regardless of size.
Alaska and Hawaii, Canada, and International Shipping:
- Please see our Shipping Information page for details.
Returns:
- This product is custom made and is not returnable.
- We are committed to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 35% restock fee.
- CLAIMS FOR SHORTAGE OR DAMAGE IN TRANSIT: All claims must be made within Seven (7) days of receipt of goods.
- Weatherstripping products will not be considered for returns.
- Item must be in new, re-saleable condition.
- Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
- Return shipping is customer's responsibility. A return address will be provided with RMA#.
- If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
