Deltana, 2 Ball Bearings, Brass, Heavy Weight, 5 Knuckle, Full Mortise Hinge, 4" x 4"

Deltana, 2 Ball Bearings, Brass, Heavy Weight, 5 Knuckle, Full Mortise Hinge, 4" x 4"
Deltana Hardware
Read 2 reviews

Deltana DSB4B is a Full Mortise, 5 Knuckle, 2 Ball Bearing Hinge. It's made of Solid Brass. Size of hinges is 4" X 4" Square Corners and Button Tip Finials. Available in choice of finishes.

PRICED PER PAIR - See full product details and specs in the tabs below

See tabs below for additional information
    • Weight
      2.5 lbs
    • SKU
      DTDSB4BU3
      • 10% off
      Market price: $62.51 save $6.25
    • Starting price: Price: $56.26 per set


    Deltana DSB4B is a Full Mortise, 5 Knuckle, 2 Ball Bearing Hinge. It's made of Solid Brass. Size of hinges is 4" X 4" Square Corners and Button Tip Finials. Available in choice of finishes.

    Available Finishes: See options above, see Deltana Hinges Color Chart for a detailed list of all Deltana Finishes.

    Finials: Button Tip Provided. See the additional Finials and Button Tip options available.

    Priced Per Pair

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year warranty against defects in material and workmanship
     Click to see our Full Warranty Policy.

    For larger hinges, see our Deltana Residential, Full Mortise, Plain Bearing, Solid Brass Hinge, with a Staggered Hole Pattern 4" x 4" DSB4-RZ

      • Weight
        2.5 lbs
      • SKU
        DTDSB4BU3
    • QuickShip
      Yes
    • Manufacturer
      Deltana Hardware
    • MPN
      DSB4B
    • Product Design
      • Hinge Category
        Full Mortised Hinge
      • Base Material
        Brass
      • Usage Level
        Heavy Duty
      • Throw
        Standard Throw
      • Bearing Type
        Ball Bearing
      • Knuckles
        5 Knuckle Hinge
      • Pin Type
        Standard Hinge Pin, Non-Removeable Pin (NRP)
      • Hinge Tip Type
        Button Tip
      • Hinge Corner
        Square Corner
      • Hole Pattern
        Commercial "C" Pattern
      • Number of Holes
        8 Holes

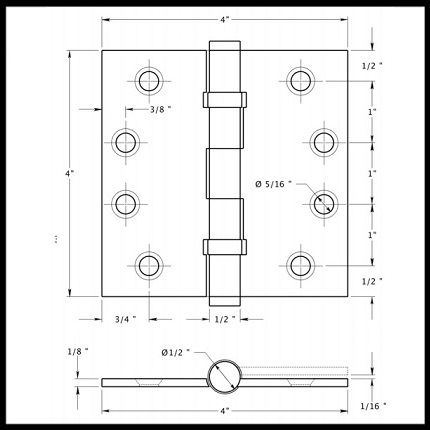

    • Dimensions
      • Hinge Size
        4" x 4"
      • Hinge Thickness
        .129" Thick
    • Installation
      • Door Type
        Wooden Door
      • Installation Screws
        Wooden Screws #12x1-1/4" Provided
    • Finishes
      • Finish
        Polished Brass (US3), Satin Brass (US4), Unlacquered Brass (US3NL), Antique Brass (US5), Oil Rubbed Bronze (US10B), Polished Nickel (US14), Antique Nickel (US15A), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Satin Chrome (US26D), PVD Polished Brass
    • Compliance Details
      • Warranty
        1 Year Limited Warranty
    5.0
    2 Reviews
    100% would recommend this to a friend

    Ratings Distribution

    5 Stars 100 2
    4 Stars 0 0
    3 Stars 0 0
    2 Stars 0 0
    1 Star 0 0

    Pros

    • 1 Good Design
    • 1 Quality Materials

    Reviewed by 2 customers

    5

    Best quality hinges

    Comments about Deltana, 2 Ball Bearings, Brass, Heavy Weight, 5 Knuckle, Full Mortise Hinge, 4" x 4"

    Been using Deltana hinges for over a decade, are an industry standard in many shops, quality is unbeatable

    By Paula
    Verified Buyer
    5

    High quality door hinges, replace failed builder grade.

    Comments about Deltana, 2 Ball Bearings, Brass, Heavy Weight, 5 Knuckle, Full Mortise Hinge, 4" x 4"

    Exactly what I ordered and on time. What else is there?

    By na
    Verified Buyer

    All finishes comply with BHMA / ANSI Codes

    • Polished Brass US3 / 605
    • Unlacquered Brass US3-UNL / 605
    • Antique Brass US5 / 609
    • Oil-rubbed Bronze US10B / 613
    • PVD Polished Brass CR003
    • Polished Nickel US14
    • Brushed Nickel US15 / 619
    • Antique Nickel US15A / 620
    • Polished Chrome US26 / 625
    • Brushed Chrome US26D / 626
