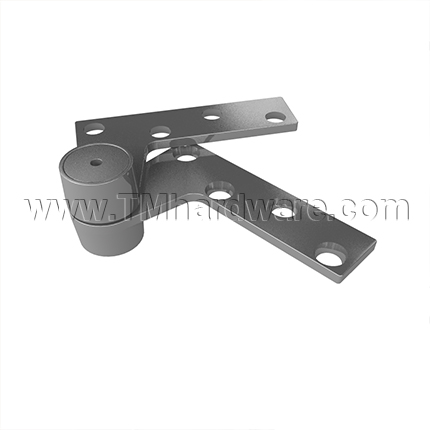

Rixson 180, Door Closer Pivot, Offset Top Pivot Set

Norton 180, Door Closer Pivot, Offset Top Pivot Set, Fire rated 3/4" Offset, Aluminum Painted Finish

Providing compatibility and versatility for a range of door installations, the Rixson 180 Door Closer Pivot, standard top pivot is engineered to work effortlessly with the majority of offset pivot sets and floor closers. For commercial applications, it is a dependable option due to its outstanding quality, seamless functioning, and sturdy weight-bearing capacity.

PRICED PER ITEM

See tabs below for additional information

Set
Finish

Quantity

Add to compare

Features:

Full mortise
Non-handed
Standard top pivot for most offset pivot sets and floor closers
Oil-impregnated sintered bronze bushing
Non-ferrous base material
Available for fire door assemblies (ferrous material) – specify F180
For 20-minute label suffix “–20” to the part number

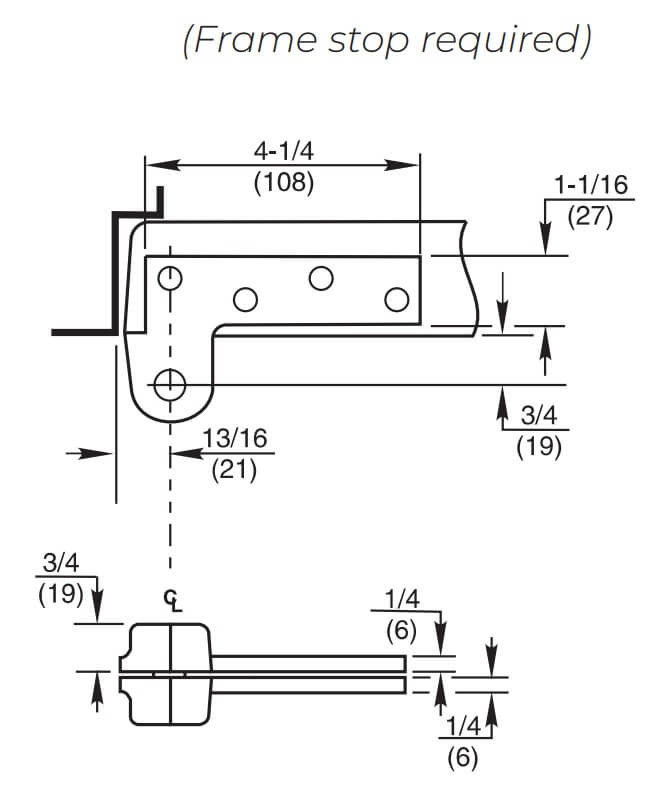

3/4" (19mm) offset (measured from centerline of pivot to face of door)
Available for 1-1/2" (38mm) offset
Furnished with wood and machine screws
Available with longer than standard pivot pins - increments are 1/4" (6mm), 1/2" (13mm), 3/4" (19mm) only
For extra wide or high traffic applications, see H180 top pivot

PRICED PER ITEM

This product has a 2-year limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

Click here to view Rixson L117, Door Closer Pivot, Heavy Weight Pivot Set, Lead Lined

- SKU
  RX-F180-689
QuickShip
No
Manufacturer
Rixson
MPN
180
Set
3/4" Offset, 1-1/2" Offset, 3/4" Offset, Heavy Duty, 1-1/2" Offset, Heavy Duty, Fire rated 3/4" Offset, Fire rated 1-1/2" Offset, Fire rated 3/4" Offset, Heavy Duty, 20 min Fire Rated, 3/4" Offset, 20 min Fire Rated, 1-1/2" Offset, 20 min Fire Rated, 3/4" Offset, Heavy Duty
Description
- Series
  Norton 180 Series
- Handing
  Non Handed
Finishes
- Finish
  Aluminum Painted (689), Dark Bronze Painted (690), Dull Bronze Painted (691), Gold Painted (696), Dark Satin Bronze, Equiv (613e), Black Suede Powder Coat (BSP), White Suede Powder Coat (WSP), Bright Brass (605), Satin Brass (606), Polished Bronze (611), Satin Bronze (612), Oil Rubbed Bronze (613), Polished Nickel (618), Satin Nickel Plated (619), Flat Black (622), Bright Chrome Plated (625), Satin Chrome Plated (626)
Compliance Details
- ANSI Designation
  ANSI/BHMA A156.4, Grade 1
- Warranty
  2 Year Limited Warranty
