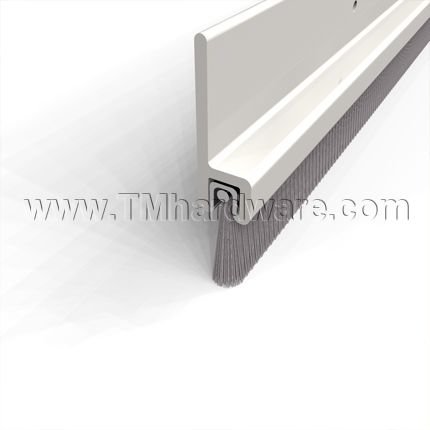

NGP A605 Door Sweep and Perimeter Gasket, .625" Aluminum Casing with .43" Nylon Brush

NGP #A605 Door Sweep / Perimeter Door Gasket is fitted with a row of densely compressed nylon filaments to seal the gap under and around doors. The brush is highly flexible and conforms well to surface irregularities. Casing measures .625" H, while brush portion has a height of .43". Available in various anodized finishes.

PRICED PER FOOT - see product specs and details in the tabs below

See tabs below for additional information

Finish
Length
Mounting

Quantity

Add to compare

Mounting Options:

Screws Only: Screw holes are slotted for easy adjustment once installed
Screw + Adhesive: Available with Fast Attach Tape (FATT) for easy installation. Two way tape is applied to the metal housing, insuring a quick and easy installation. Self drilling screws are provided to further secure the metal.

Installation: Installation Guide and #6 x 3/4" stainless steel sheet metal screws furnished.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

- SKU
  NGA605A
QuickShip
No
Manufacturer
National Guard Products
MPN
A605, 605, 18041
Mounting
Screws, Adhesive + Screws
About this Product
- Door Shoe Retainer Material
  Aluminum
- Temperature Range
  -70°F to 425°F
- Door Type
  Wooden Door, Metal Door
- Seal Type
  Nylon Brush Seal
- Mounting
  Surface Mounted

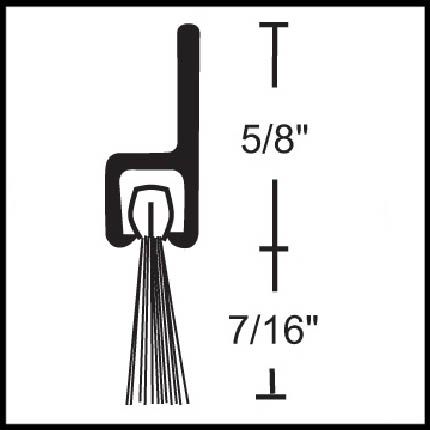

Dimensions
- Seal Height
  7/16" Height
- Total Height
  1-1/16" Height
- Length
  Custom Cut to Size
Installation
- Drill Holes
  Drill holes are provided
- Installation Screws
  #6 x 3/4" stainless steel sheet metal screws provided
Finishes
- Finish
  Clear Anodized Aluminum (US28), Dark Bronze Finish
Compliance Details
- Compliance Details
  Fire Rated, Smoke Rated, Air Infiltration Rated, BHMA Certified, UL Classified
- ANSI Designation
  R3A164
- Warranty
  3 Year Limited Warranty

Click to Print Product Specs

Product Specs of NGP 607 Door Bottom Sweep with Nylon Brush

Click to Print Installation Guide

Installation Guide of Product NGP 607 Door Bottom Sweep, Door Brush

CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
REACH and RoHS compliant
