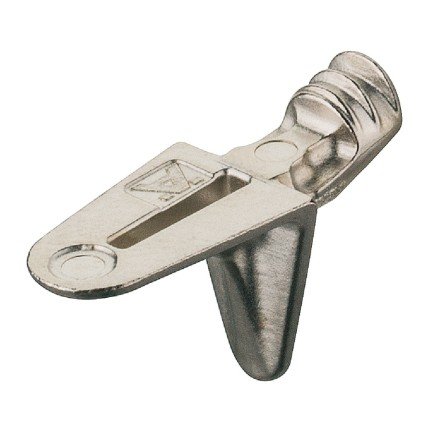

Hafele Shelf Support with 3 Wedged Ribs, Nickel Plated

Name: Hafele Shelf Support with 3 Wedged Ribs, Nickel Plated
Brand: Hafele
SKU: HF-282.24.717
Price: 0.13 USD
Availability: InStock

Hafele Shelf Support with 3 Wedged Ribs, for 13/64" (5 mm) Diameter Hole, Nickel Plated

Hafele Shelf Support with 3 Wedged Ribs, with it's patented design assures minimum lowering of shelf under heavy weight. It is installed by insert fitting it into 13/64" (5 mm) diameter hole.

SOLD PER PIECE

See tabs below for additional information

Quantity

Add to compare

Hafele Shelf Support with 3 Wedged Ribs,with it's patented design assures minimum lowering of shelf under heavy weight. It is installed by insert fitting it into 13/64" (5 mm) diameter hole.

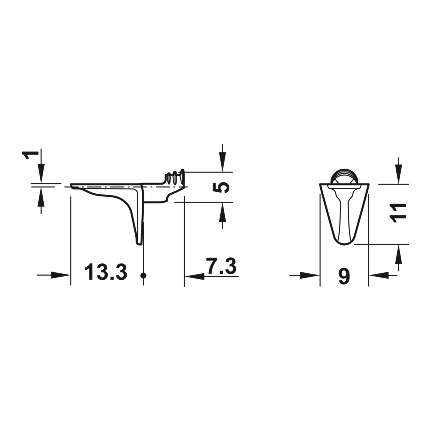

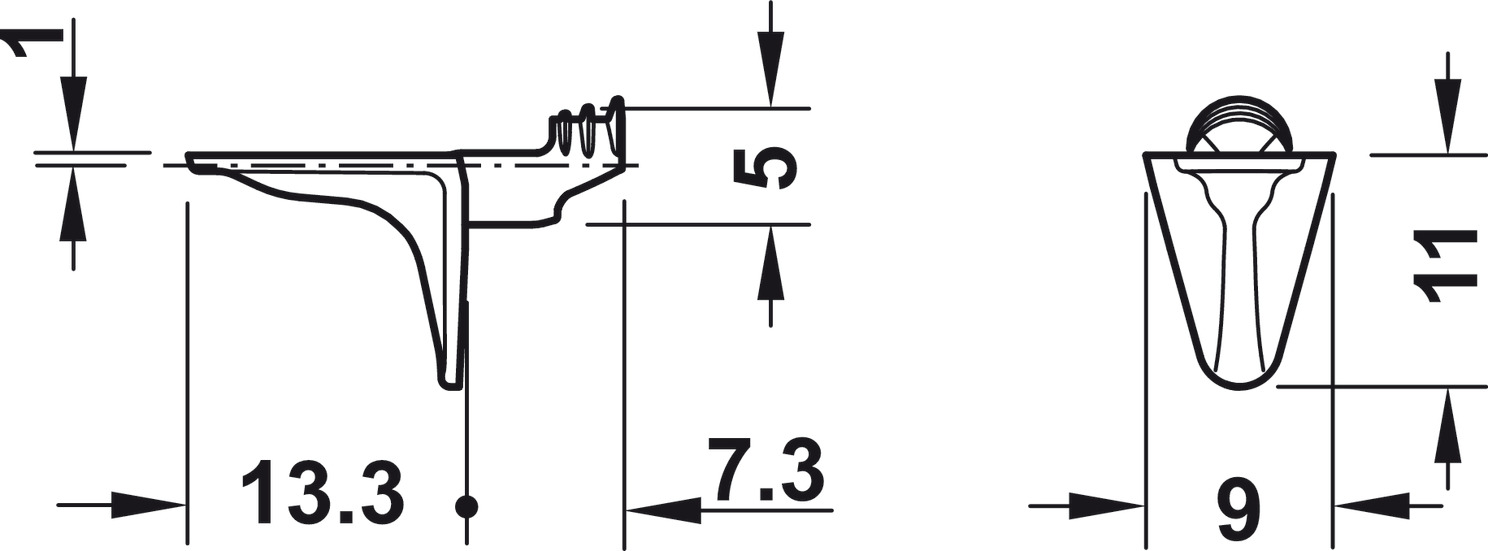

Drill Hole Diameter : 13/64" (5 mm)

Support Size : 3/64" (1 mm)

Support Depth : 17/32" (13.3 mm)

Pin Length : 9/32" (7.3 mm)

Material: Zinc Alloy

Load bearing capacity per item : 9.4 kg (20.72 lbs.)

Load bearing capacity with 4 shelf supports : 37.6 kg (82.89 lbs.)

SOLD PER PIECE

Click here to view our Hafele Shelf Support, for 13/64" (5 mm) Diameter Hole, Plastic with Steel Pin

- SKU
  HF-282.24.717
QuickShip
No
Manufacturer
Hafele
MPN
282.24.717
Finishes
- Finish
  Nickel Plated
