Falcon H2101 Entrance Lock, Grade 2 Interconnected Lock

Click here to view the Falcon H2 Series from the Falcon Full Line Catalog

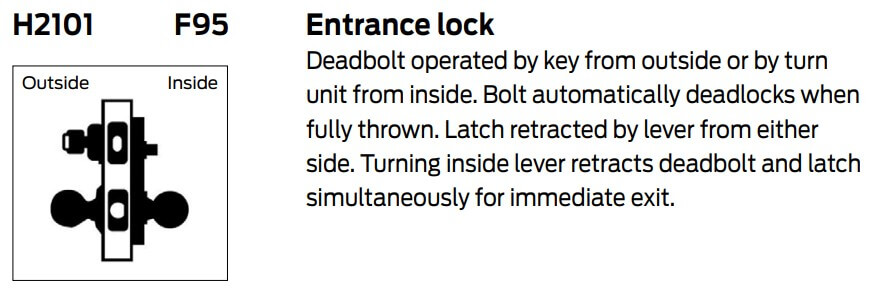

Falcon H2101 Entrance Lock Deadbolt operated by key from outside or by turn unit from inside. Bolt automatically deadlocks when fully thrown. Latch retracted by lever from either side. Turning inside lever retracts deadbolt and latch simultaneously for immediate exit.  Standard H2 Series Lock provided with door thickness 1-3/4” to 2”, backset fits 2-3/8" or 2-3/4", CTC 4” or 5 1/2”, 6-pin, solid brass, keyed 6-pin, G keyway, keyed different (KD) cylinder. Variety of lever styles and finishes available.

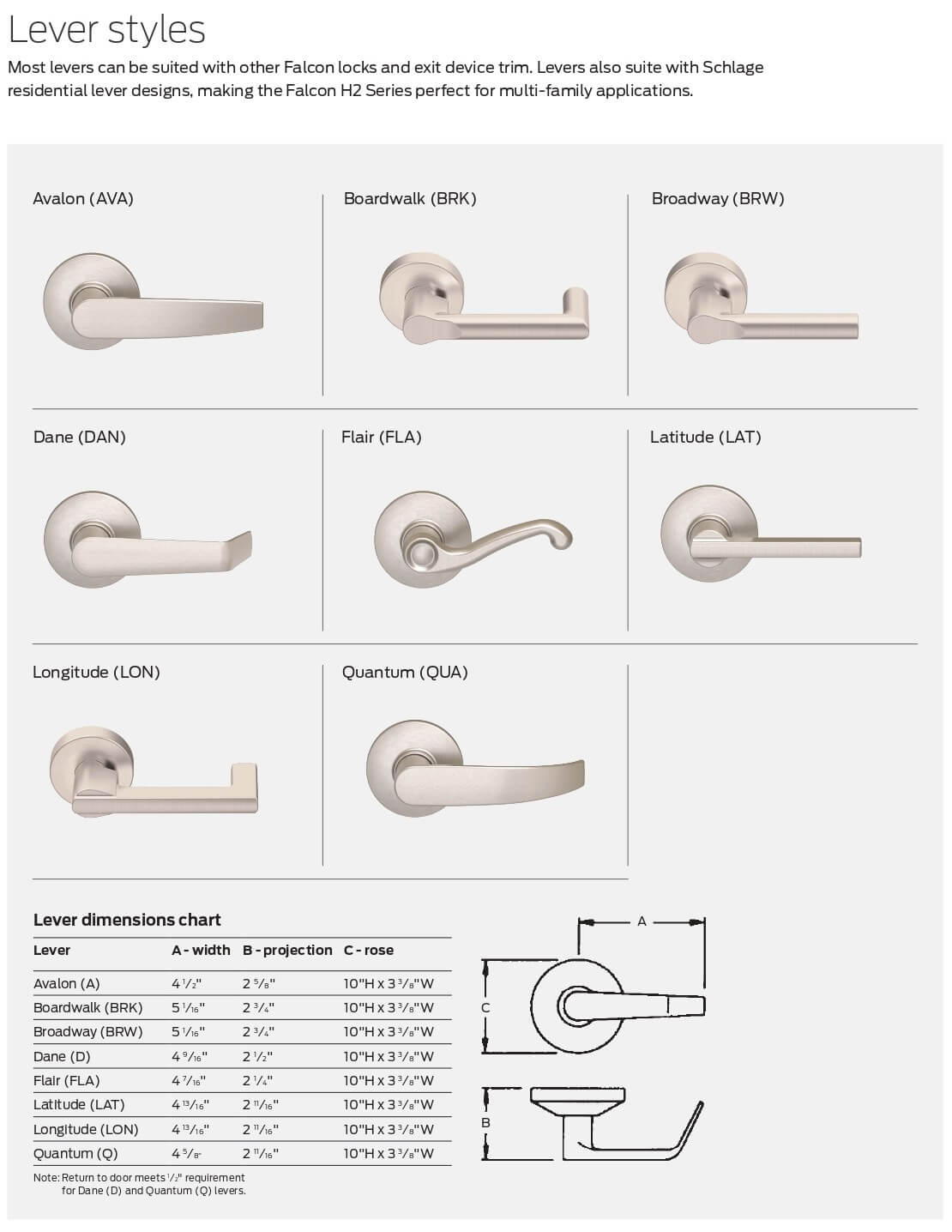

Lever Style: 8 lever styles available. Choose from options above.

Escutcheon Design: Plymouth

Finishes: See options above, See Falcon Finish Chart for a detailed list of Falcon's finishes.

Trim:

• Roses are wrought brass, bronze or stainless steel, installed over wrought steel reinforcing plates. Knobs are brass, bronze or stainless steel secured by steel knob retainer which cannot be depressed when lock has been locked.
• Outer trims secured to the door by thru-bolts through a steel plate on the inside of the door. Inside escutcheon conceals mounting screws.

Material: Cold formed steel, zinc plated and dichromated for rust resistance.

Keys: Two, Nickel silver cut keys per lock

Keyway: Falcon G keyway standard, Interchangeable

Additional Keying Options: Additional keying options and keyways available through our office.

Cylinder / Core:

• 6-Pin Chambers, Keyed 5-Pin, Falcon G keyway, Keyed different (KD)
• Cylinder assemblies removable to rekey.
• Drilled with 6-pin chambers, pinned in 5. Pinning in 6 chambers available through our office.

Interchangeable Cores: (Can be purchased through our office.)

Additional Cylinder Options: (Can be purchased through our office.)

• Keyed 6-Pin or 7-Pin
• Construction Cores
• Small Format Interchangeable Core (SFIC)

Door Thickness: 1-3/4" - 2" standard (1-3/8" Available through our office.)

Backset: 2-3/4" standard. 2-3/8" also available through our office.

CTC: Fits 4" or  5-1/2" CTC door preps

Latch:

• 1/2" projection
• 1-1/8" x 2-1/4" latchface (with 2-3/4" backset)
• 1" x 2-1/4 latchface (with 2-3/8" backset)

Deadbolt:

• 1 X 2-1/4”, dual option faceplate, square corner standard, round corner included.
• 1" housing diameter with 1/4" hardened steel security roller
• 1" throw
• 1" projection

Strike: 2-3/4" x 1-1/8" lipless standard. Optional ANSI, T-strike, full lip strikes or security strike available through our office.

Options available through our office only:

• Additional latches and strikes
• Additional cylinders and keyways
• Additional Dustboxes, strikes and cam locks
• Additional Keys, or Large Bow Keys

Compliance Details:

• Locksets are be UL Listed 1-1/2 Hour B Label
• Lever Style trim complies with Title 19, California State Fire Marshal and all ADA and barrier free codes.
• See Compliance Details Tab for corresponding ANSI numbers

Priced Per Set.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. Template is not drawn to scale. Accurately scaled template will be supplied with your order.

Product has a 1 year warranty against defects in material and workmanship
