Blum Drawer Runner 563H3050B, TANDEM plus BLUMOTION, Full Extension, For 1/2" to 5/8" Thick Wood Drawers - Quick Ship

This TANDEM plus BLUMOTION concealed drawer runner brings together all of the features, innovations and benefits of runner systems, with unmatched quality, style and running action.

Material: Steel

Finish: Zinc plated

Length: This runner system comes in a choice of four lengths:

• 563H3050B:
  • Drawer Length: 12" (305 mm)
  • Runner Length: 12-9/16" (319 mm)
  • Overall Cabinet Depth: 15" (381 mm)
• 563H3810B:
  • Drawer Length: 15" (381 mm)
  • Runner Length: 15-9/16" (395 mm)
  • Overall Cabinet Depth: 18" (457 mm)
• 563H4570B:
  • Drawer Length: 18" (457 mm)
  • Runner Length: 18-17/32" (471 mm)
  • Overall Cabinet Depth: 21" (533 mm)
• 563H5330B:
  • Drawer Length: 21" (533 mm)
  • Runner Length: 21-9/16" (548 mm)
  • Overall Cabinet Depth: 24" (610 mm)

Drawer Type: For 1/2" (13 mm) to 5/8" (16 mm) thick wood drawers

Features:

• Concealed undermount construction adds stability and support
• Full extension runners provide maximum access to the drawer
• For face frame and panel cabinetry

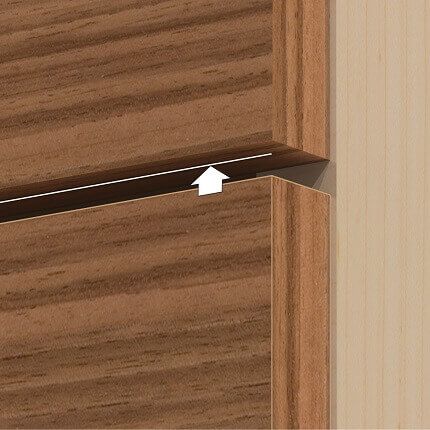

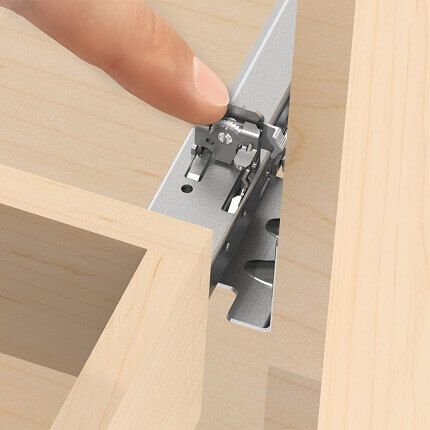

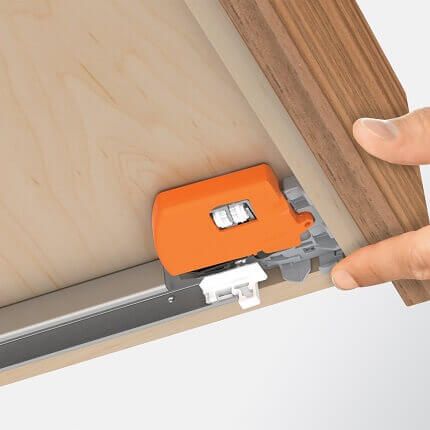

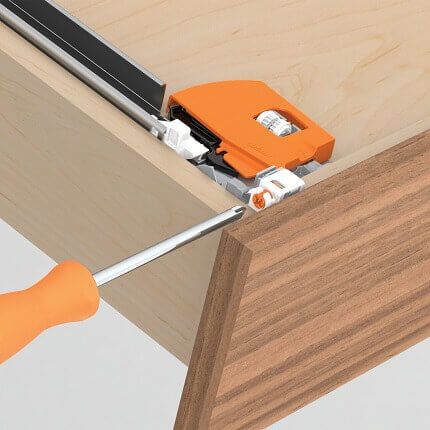

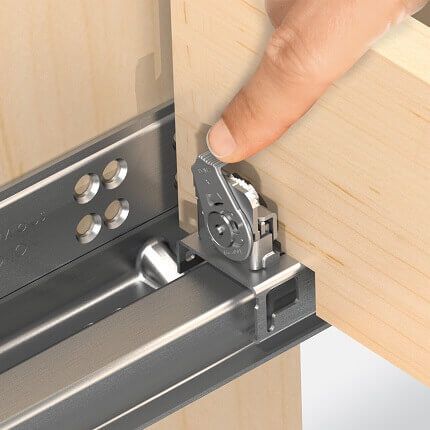

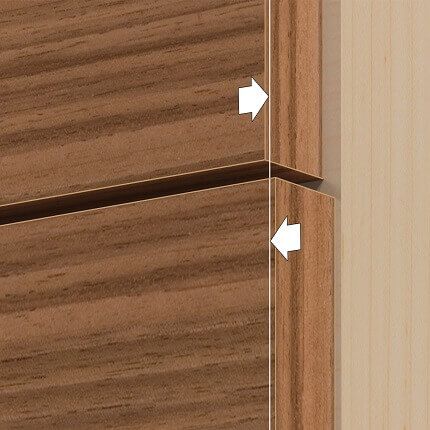

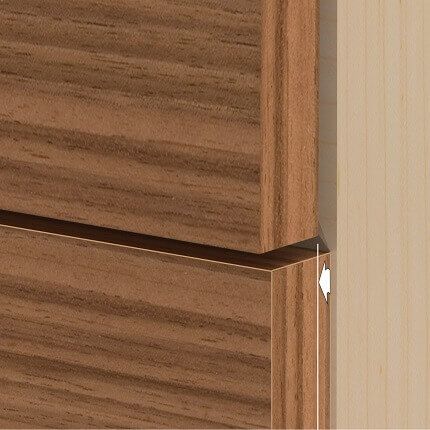

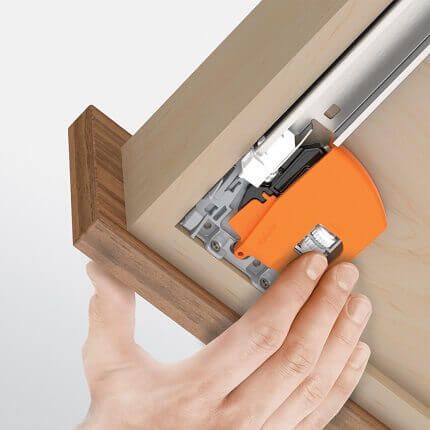

• Four dimensional adjustment - The side, depth, height and tilt can be adjusted to allows for precise allignment of drawer fronts. See Specs and Installation and videos above for details.

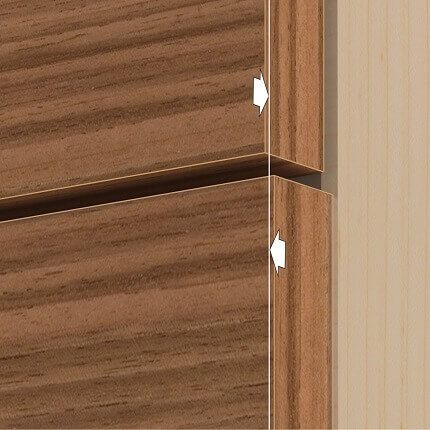

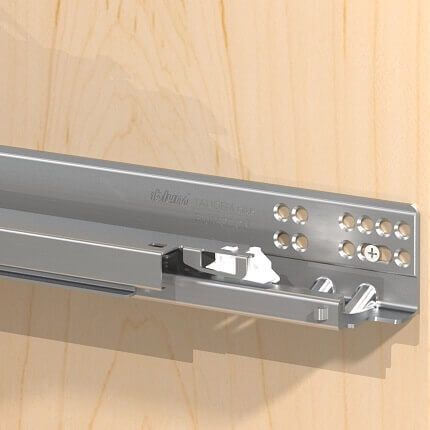

• Elongated holes for additional depth adjustment
• Bottom mount holes on 15", 18" and 21" drawers
• Excellent stability and minimal sag, even with a fully loaded drawer
• TANDEM smooth running action

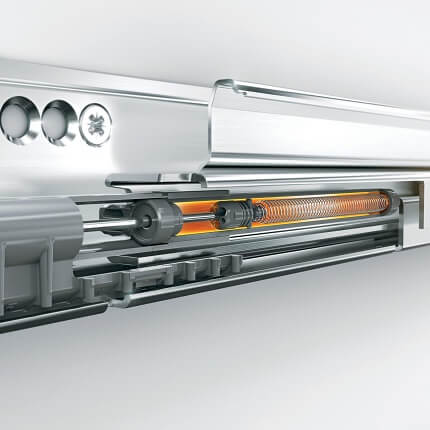

• BLUMOTION soft closing - This feature allows the drawer to close softly and quietly regardless of its size, weight or the force with which is was closed.

Application: TANDEM plus BLUMOTION drawer runners can be used for:

• Inset drawers
• Narrow drawers
• Roll out shelves
• Bottom mount drawers

Installation: With screws (screws are not included), back attachment by socket

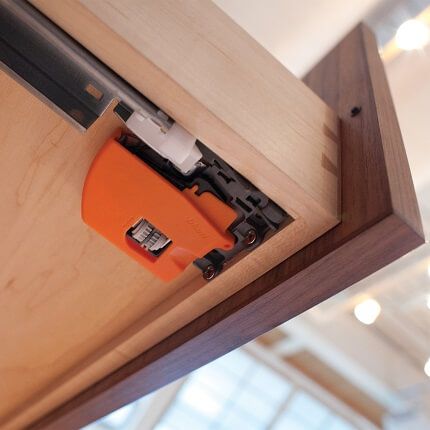

Locking Devices: TANDEM plus BLUMOTION runner systems are mounted to the drawer with locking devices, which enable the drawer to be adjusted. Please note, Locking Devices are not included in this product and can be ordered separately through our site.

Item Packaging Quantity: This product is priced per set and includes two drawer runners for locking devices.

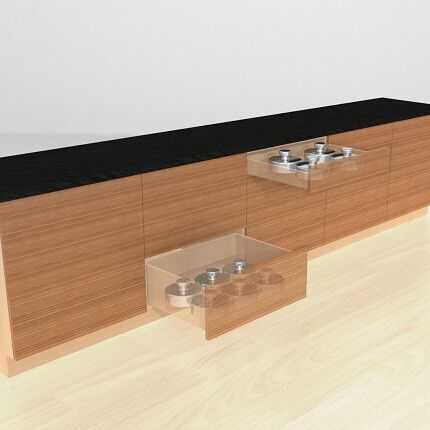

Certifications: TANDEM plus BLUMOTION concealed runners are designed to meet or exceed ANSI/BHMA A156.9 Grade 1 test specifications with a 100 lb static load.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Specs and Installation for exact measurements.

This product has a lifetime warranty against defects in materials and workmanship.
