Rockwood 70 Push Plate, Square Corner, Standard Guage .050" Thick
Rockwood's 70 standard gauge and square cornered high quality push plate. Available in many sizes, weights and finishes. See details and options below.
Need it sooner? Stock sizes and finishes are available to ship within 1-3 business day. See our Rockwood 70 Push Plate, Square Corner, Standard Guage .050" Thick - QuickShip
PRICED PER PIECE
See tabs below for additional information
Rocwood's 70 commercial grade and long lasting push plate, is standard gauge (.050" thick), square cornered and contains a beveled edge. This push plate is great for use on any door of your choice, particularly doors in high traffic areas.
Need it sooner? Stock sizes and finishes are available to ship within 1-3 business day. See our Rockwood 70 Push Plate, Square Corner, Standard Guage .050" Thick - QuickShip
Materials: Aluminum, Brass, Bronze, Stainless Steel
Finishes: Polished Brass; Satin Brass; Satin Bronze; Satin Oil Rubbed Bronze; Dark Oxidized Satin Bronze, Equivalent; Polished Chrome; Satin Chrome; Clear Anodized Aluminum; Polished Stainless; Satin Stainless; Satin Microshield Coated; Satin 316 Alloy (All finishes comply with BHMA codes. See Product Data for compliance details.)
A Note on Finishes: Dark Oxidized Satin Bronze, equivalent - This new finish provides the richness and warmth of the 10B/Satin Bronze Oiled "living" finish, but maintains its original color and appearance and will not fade or wear over time. Stainless Steel, Polished/US32 - Enhanced corrosion resistance of stainless steel. 316 Alloy - Highly recommended for use if environment/job site has road salt, marine salt air, industrial/urban pollution. Microshield Coated - The ideal finish for anywhere there is a concern to control bacteria growth for demanding standards of cleanliness such as, hospitals, public restrooms or laboratories.
Custom finishes available. For details and pricing please contact us or call us at 845-388-1300.
Options: For details and pricing, see options tab.
- TORX - security torx screws
- SA-self adhesive mounting-1/16" double face foam tape (no screw holes)
- Engraving
- Cylinder Cutouts (CFC) and Turn Knob Cutouts (CFTT)
Sizes: 6 sizes available (chart)
| Product # | Size (Inches) | Weight |
| 70A | 3 x 12 | 0.7 lbs |
| 70B | 3-1/2 x 15 | 0.9 lbs |
| 70C | 4 x 16 | 1.0 lbs |
70E | 6 x 16 | 1.5 lbs |
| 70F | 8 x 16 | 2.0 lbs |
| 70G | 4 x 20 | 1.3 lbs |
Fastener: #6 x 5/8" OH SMS. Included.
Priced per piece.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 1 year guarantee against defects in workmanship and materials.
Click here to view our Full Warranty Policy.
Click here to view our Rockwood 70RC standard Guage, Round Cornered Push Plate.
-
QuickShipNo
-
ManufacturerRockwood Company
-
MPN70
-
Size3" x 12" (70A), 3-1/2" x 15" (70B), 4" x 16" (70C), 6" x 16" (70E), 8" x 16" (70F), 4" x 20" (70G)
-
OptionsSheet Metal Screws (Standard), 6 TORX Screws, SS, 6 TORX Screws, Brass, Adhesive Mounting, 1"-12", Adhesive Mounting, 12"-48", Cylinder Cutout, Turn-knob Cutout
- Finishes
-
FinishClear Anodized Aluminum (US28), Satin Chrome (US26D), Satin Stainless Steel (US32D), Oil Rubbed Bronze (US10B), Polished Brass (US3), Satin Brass (US4), Satin Bronze (US10), Polished Chrome (US26), Oil Rubbed Bronze, Equiv. (10BE), Polished Stainless Steel (US32), Microshield Stainless Steel, Satin, 316 Alloy Stainless Steel, Polished, 316 Alloy Stainless Steel, Satin
-
To order products with more than one option, please contact us or call us at 845-388-1300.
|
TORX SCREWS |
|
.jpg) |
Security Torx Screws (Star Head Screws) have the advantage of a very tight fit with the screwdriver/drill. The rounded corners also reduce the wear of both screw and the tool used. Push plate needs a total of six screws. Size: #6 x 5/8" Oval Head SMS Priced per 6 screws: Stainless Steel-$4.80 Brass Plated-$16.20 |
|
SELF-ADHESIVE MOUNTING |
|
 |
1/16" double face foam tape. No screw holes on the plate. This tape is applied by the buyer for easy installation. Price: Up to 12" Height-$15.00 12"-48" Height-$32.00 |
|
ENGRAVING |
|
 |
Standard engraving words are: Push/Pull/Men/Women, 3/4" high condesed block letters with enamel fill. Other letters and styles are available upon order. To order standard or custom engravings, and for details and pricing please contact us or call us at 845-388-1300. Price per engraving: $16.00 ($19.20 for Stainless Steel) Adhesive mounting is available for $6.40 |
|
CYLINDER(CFC)/ TURN KNOB(CFTT) CUTOUTS |
|
 |
Cylinder Cutouts are holes cut out from the top of the plate for cylinders (key locks) or thumbturns. Turn Knob Cutouts are holes cut out from the top of the plate for a turn knob to be installed. Price per cutout: $1.60 |

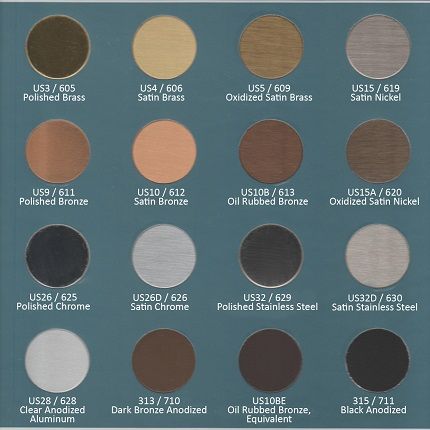

All finishes comply with BHMA (Builders Hardware Manufacturing Association) Standard:
- Polished Brass-US3/605
- Satin Brass-US4/606
- Satin Bronze-US10/612
- Satin Oil Rubbed Bronze-US10B/613
- Dark Oxidized Satin Bronze, Equivalent-US10BE/613E
- Polished Chrome-US26/625
- Satin Chrome-US26D/626
- Clear Anodized-US28/628
- Stainless Steel, Polished-US32/629
- Stainless Steel, Satin-US32D/630
- Satin MicroShield® Coated-US32MS
- Polished 316 Alloy-US32316
- Satin 316 Alloy-US32D316
Push Plate complies with ANSI A156.6: J301
