Zero #563 Rabbeted Threshold, 3.5" Aluminum with Neoprene Gasket, .875" H

Zero #563 Rabbeted Threshold, 3.5" Aluminum with Neoprene Gasket, .875" H
Zero International
Read 4 reviews

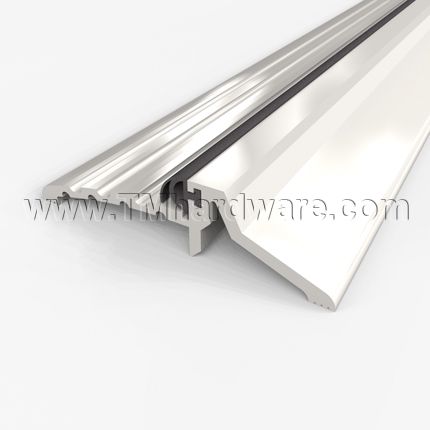

This Zero #563 fire and smoke rated doorway threshold is fitted with a neoprene gasket to provide a solid seal against drafts, dust, air and water infiltration. Available in aluminum mill finish with options of full body strength. Length is custom cut to size.

PRICED PER FOOT

See tabs below for additional information
    • SKU
      ZR563A
      • 11% off
      Market price: $22.78 save $2.57
    • Starting price: Price: $20.21 per foot

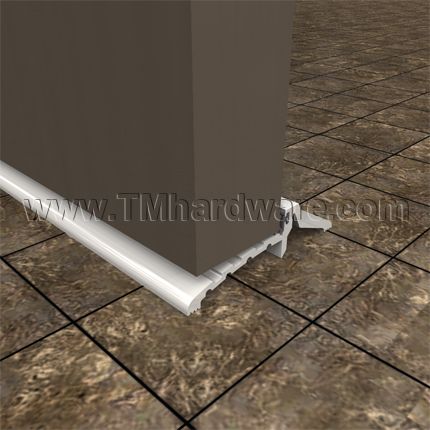

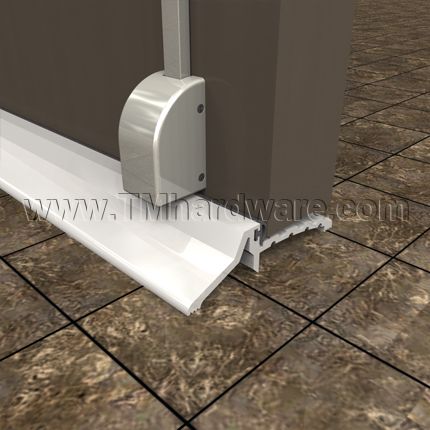

    Threshold spans under doors and has a solid neoprene seal which compresses against a closed door to ensure a superior seal.

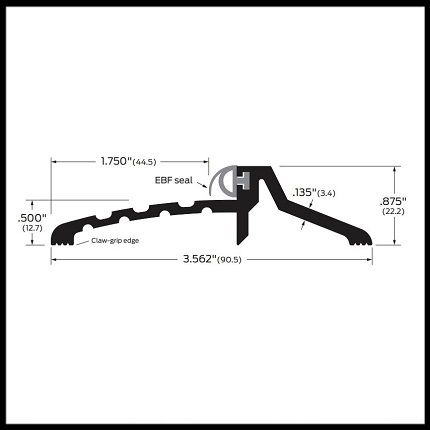

    Total Width: 3.562"

    Width Under Door: 1.75"

    Required Door Clearance: .5"

    Total Height: .875"

    Thickness: .135"

    Length: Custom cut to size up to 104" (Larger sizes can be purchased through our office)

    Finish: Aluminum mill finish

    Compliance Details: Positive Pressure Fire Rating, Smoke Rating, ITS Warnock Hersey Listed

    Seal: Solid Neoprene EBF (Extruded Bulb and Finger Design). The bulb has great compression properties while the additional finger aids in sealing extra gaps due to misalignment during installation or natural warping of the door. Solid neoprene will remain effective in extreme weather conditions.

    Installation: Installation instructions and screws provided. If threshold is being drilled into concrete, Expansion Anchors are recommended.

    Drilling: Threshold is drilled for easy installation

    Additional Options Include:

    • Non-Stick Epoxy Abrasives can be bonded into the grooves. The tread provides a coefficient of friction of 1.02 dry and 0.98 wet to comply with ADA, OSHA and most local building codes requirements.

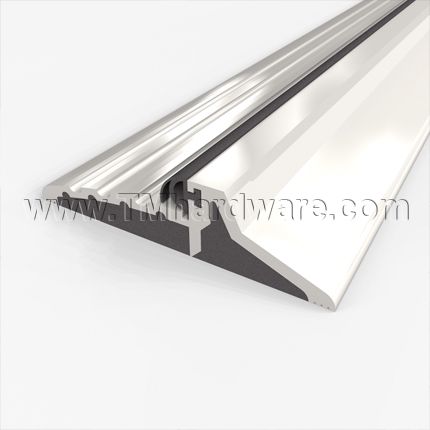

    • Full Body Strength: An aluminum composite filler containing aluminum oxide and silicone carbide. Ideal applications include heavy commercial traffic in supply rooms, manufacturing buildings, schools, cafeterias, automobile dealers, hospitals, industrial facilities.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year guarantee against defects in material and workmanship.
    Click here to view our full Warranty Policy

    Click here to see more Rubber Seal Thresholds.

      • SKU
        ZR563A
    • QuickShip
      No
    • Manufacturer
      Zero International
    • MPN
      563
    • Dimensions
      • Overall Height
        .875" Height
      • Overall Width
        3.562" Width
      • Threshold Length
        Custom Cut to Size
      • Required Door Clearance
        .5" Height
      • Thickness
        .135" Thick
    • Product Design
      • Flat Saddle Design
        Fluted (Grooved) Design
      • Threshold Type
        Rubber Seal / Bumper Threshold
      • Seal Type
        Neoprene Seal
      • Material
        Aluminum
    • Finishes
      • Finish
        Clear Anodized Aluminum (C), Black Anodized Aluminum (315), Dark Bronze Anodized Aluminum (313), Gold Anodized Aluminum
    • Compliance Details
      • Warranty
        1 Year Limited Warranty
    4.5
    4 Reviews
    100% would recommend this to a friend

    Ratings Distribution

    5 Stars 50 2
    4 Stars 50 2
    3 Stars 0 0
    2 Stars 0 0
    1 Star 0 0

    Pros

    • 3 Good Design
    • 3 Quality Materials
    • 2 Durable
    • 1 Easy To Use

    Reviewed by 4 customers

    5

    Shallow Door Threshold

    Comments about Zero #563 Rabbeted Threshold, 3.5" Aluminum with Neoprene Gasket, .875" H

    Required threshold update for a water heater closet door upgrade.

    By Decker
    Verified Buyer
    4

    Shallow Threshold

    Comments about Zero #563 Rabbeted Threshold, 3.5" Aluminum with Neoprene Gasket, .875" H

    All good except that the counter sink fastener detail was too shallow. Corrected on site.

    By Douglass
    Verified Buyer
    4

    This product has solved my problem and is of good quality.

    Comments about Zero #563 Rabbeted Threshold, 3.5" Aluminum with Neoprene Gasket, .875" H

    An excellent door threshold to prevent wind driven rain from entering the interior.

    By Rick. Architect.
    Verified Buyer
    5

    I would buy this product again!

    Comments about Zero #563 Rabbeted Threshold, 3.5" Aluminum with Neoprene Gasket, .875" H

    It was as described wa

    By None
    Verified Buyer
