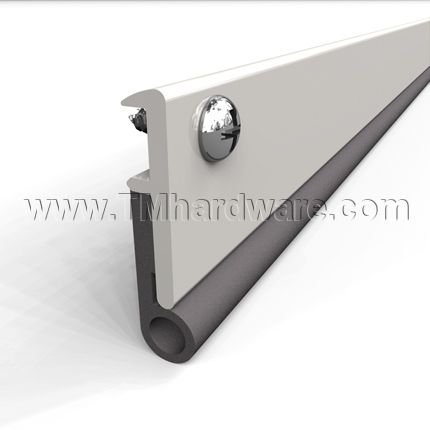

Zero #328MS Meeting Stile, Aluminum or Bronze Casing with Neoprene Ring Seal

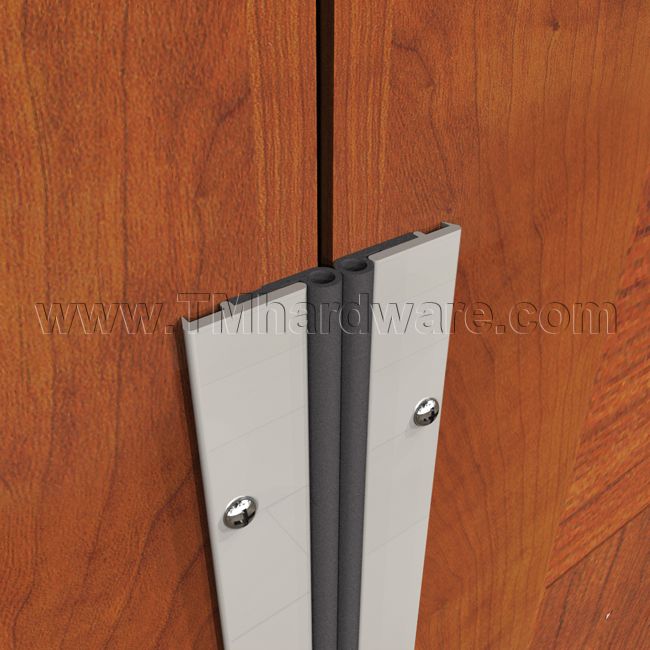

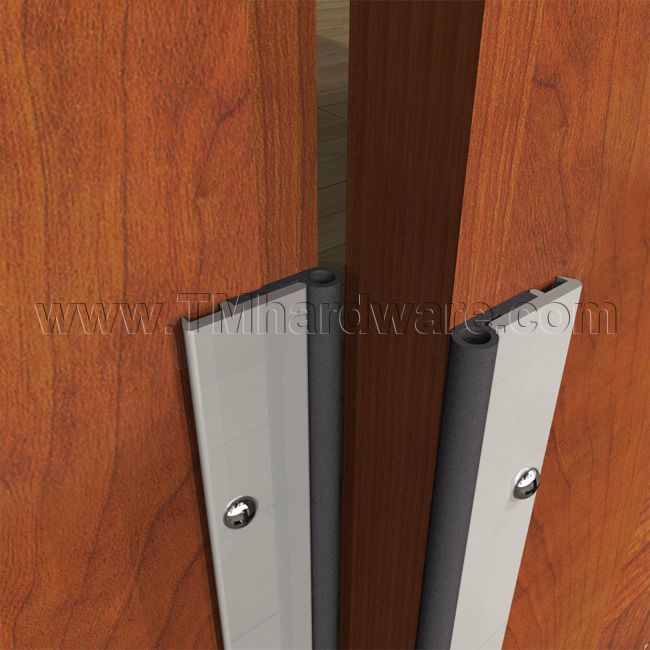

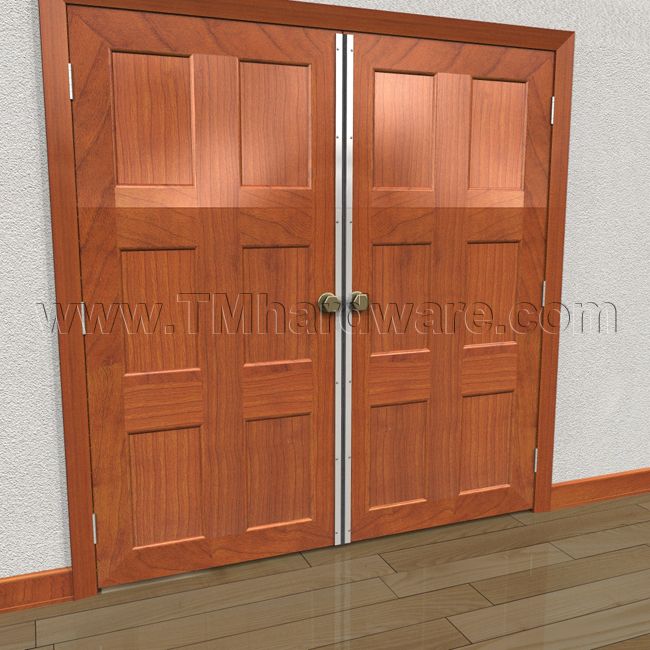

This Zero #328MS product can be applied as a astragal between two adjacent double active doors. It is smoke and fire rated and can effectively reduce natural sound levels. Available in Bronze or various aluminum anodized finishes and is custom cut to size.

PRICED PER FOOT - see full product details and specs in the tabs below

Reminder: If being purchased for both doors, select quantity 2, or as needed.

See tabs below for additional information

Finish
Length

Quantity

Add to compare

This Zero #328MS product can be applied as a astragal between two adjacent double active doors. It is smoke and fire rated and can effectively reduce natural sound levels. The Solid Neoprene Bulb Seal has great compression and waterproof properties.

Additional Applications:

Door Bottom: Neoprene Ring Door Bottom
Door Gasket: Neoprene Ring Door Gasket

Additional Options: Note, this product is also available in Anti-Ligature design, designed for use in correctional facilities and psychiatric wards. Can be purchased through our office.

Reminder: If being purchased for both doors, select quantity 2, or as needed.

Replacement Seals: To purchase a replacement for this seal see our .25" Neoprene Bulb Replacement Seal.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, colors may vary slightly and size may be enlarged to show detail. See our product specs for exact measurements.

This product has a 1 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.

To view an option of single active door astragal, see our Zero International #339W-MS 1.5" Smoke Rated Meeting Stile.

- SKU
  ZR328AA_MS
QuickShip
No
Manufacturer
Zero International
MPN
328-MS
About This Product
- Retainer Material
  Aluminum, Bronze
- Seal Type
  Neoprene
- Door Type
  Double Active Doors
- Mounting
  Surface Mounted

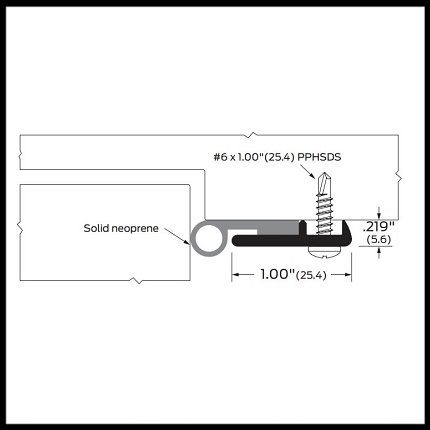

Dimensions
- Total Height
  1"
- Width
  .219"
- Size (Feet)
  Custom Cut to Size
Installation
- Installation Screws
  #6 x 1.00" (25.4) PPHSDS Provided

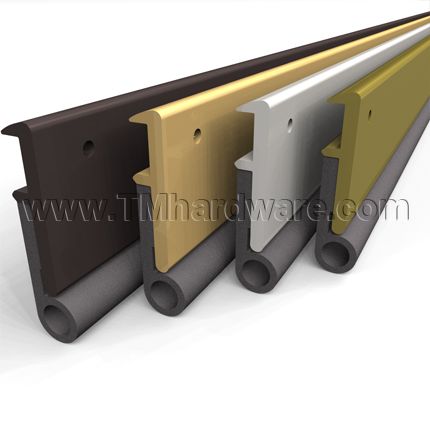

Finishes
- Finish
  Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), Gold Anodized Aluminum, Bronze Mill Finish (Brass), Flat Black (US19)
Compliance Details
- Compliance Details
  Fire Rated, Smoke Rated, Air Infiltration Rated, Sound Rated
- ANSI Designation
  R3B164, R3B434, R3B735
- Warranty
  1 Year Limited Warranty

Click to Print

compliance details for z328

Ship Time:
- This product is custom made to your specifications, please allow 2-3 weeks to ship
- Due to Covid-19 manufacturing is taking longer. Please allow an additional 2 weeks shipping time during this time
- *Similar or equivalent products from other manufacturers may be available to ship sooner. For expedited processing please contact our customer service department.
- EXCEPTIONS: Gold Anodized Aluminum and Black Anodized Aluminum Products require 2-6 week processing time.
- Ships via major carriers, such as UPS or FedEx Ground, with tracking information provided.
Domestic Shipping Fees- (Hawaii and Alaska not Included):
- FREE SHIPPING on orders over $200.00 (excludes oversized and freight orders).
- There will be a flat $19.99 shipping and handling fee on orders under $200.00.
- Oversized Items: Items 86" and above have an oversize surcharge of $70.00
- Freight Orders: Items 95" and above require freight shipment and have a shipping charge of $150.00
- Orders totals above $1,500.00 will ship free, regardless of size.
Alaska and Hawaii, Canada, and International Shipping:
- Please see our Shipping Information page for details.
Returns:
- This product is custom made and is not returnable.
- We are committed to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 30% restock fee.
- Weatherstripping products will not be considered for returns.
- Item must be in new, resaleable condition.
- Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
- Return shipping is customer's responsibility. A return address will be provided with RMA#.
- If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
