Pemko #357 Meeting Stile, 2" Aluminum or Steel Overlapping Strip, .125" Thick

This Overlapping Astragal is surface applied to the face of a door to cover the gap between two doors. The metal strip is 2" x .125" and is designed for Single Active Doors in a Double Door Set. Available in anodized aluminum, steel prime or stainless steel, with or without drilling, and is custom cut to size.

Need it sooner? Stock sizes and finishes are available to ship within 1-3 business days. See our Pemko #357 Meeting Stile, 2" Aluminum or Steel Overlapping Strip, .125" Thick - QuickShip

PRICED PER RANGE

See tabs below for additional information

Finish
Size Range
Length
Drilling

Quantity

Add to compare

This high quality, Overlapping Astragal is surface applied to the face of the door to seal the gap between a pair of double doors and prevent infiltration of dust, drafts, light, smoke, fire and moisture.

Need it sooner? Stock sizes and finishes are available to ship within 1-3 business days. See our Pemko #357 Meeting Stile, 2" Aluminum or Steel Overlapping Strip, .125" Thick - QuickShip

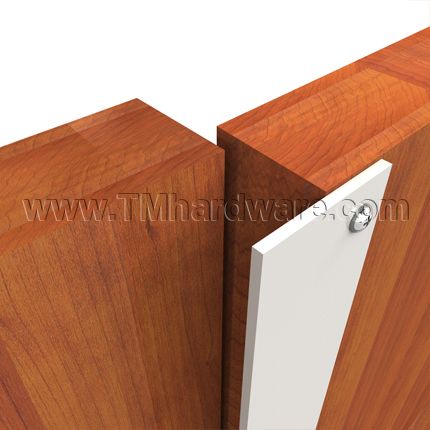

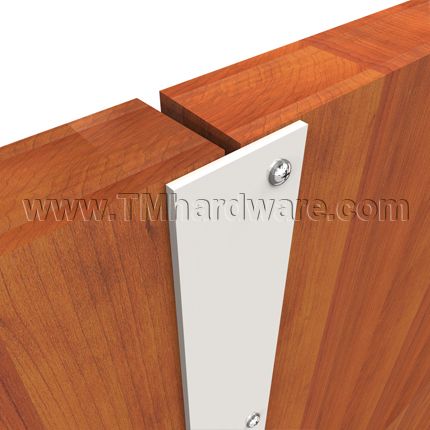

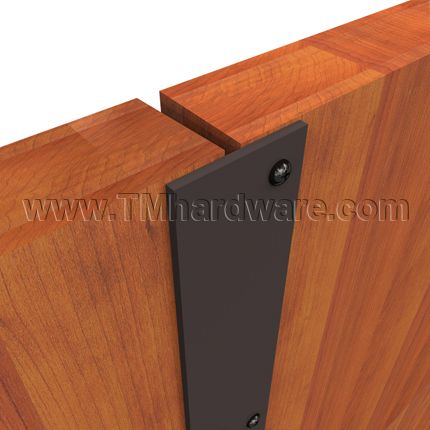

Design: Overlapping Astragal is applied to the face of the active door and sits over the gap to rest on the inactive door. The astragal will not impede on proper operation of door.

Dimensions: Strip has a width of 2" with a thickness of .125" to prevent warping and bending, even through extended use. This astragal is designed for high frequency usage and will continuously ensure superior performance.

Installation Guide and screws provided. Standard supplied fastener is #10 x 1" Truss Head SMS. Can also be installed with 1⁄4"- 20 Thru-Bolts, which can be purchased through our office by contacting us or calling at 845-388-1300.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.

To view this product with higher ratings, see our 2" Meeting Stile System with Silicone Weatherstrip.

- SKU
  PK357C|80
QuickShip
No
Manufacturer
Pemko Manufacturing
MPN
357
Drilling
Drilling Required, Drilling Not Required
About This Product
- Retainer Material
  Aluminum, Steel
- Door Type
  Single active door in a double door set
- Mounting
  Surface Mounted
Dimensions
- Total Height
  2"
- Width
  1/8"
Installation
- Installation Screws
  #10 x 1" Truss Head SMS Provided
Finishes
- Finish
  Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313), Gray Primed Galvanized Steel, Satin Stainless Steel (US32D)
Compliance Details
- Compliance Details
  Fire Rated, UL Classified
- Warranty
  5 Year Limited Warranty

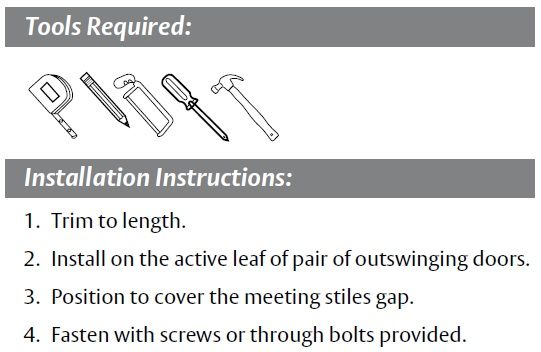

Click to Print Installation Guide

Click to Print

Click to View Ratings Explained

Finishes Comply with the Following ANSI / BHMA Codes:

Clear Anodized Aluminum - US28 / 628
Dark Bronze Anodized Aluminum - US10B / 710
Gold Anodized Aluminum - US4 / 688
Stainless Steel (Polished) - US32D / 630
