NGP 197 Door Sweep, .875" Aluminum Casing with 1.5625" Neoprene Seal

NGP 197 Door Sweep, .875" Aluminum Casing with 1.5625" Neoprene Seal
National Guard Products
Read 1 review

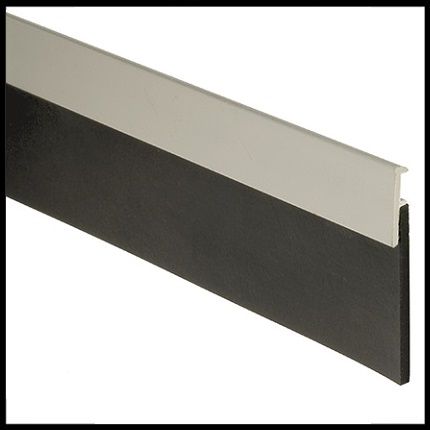

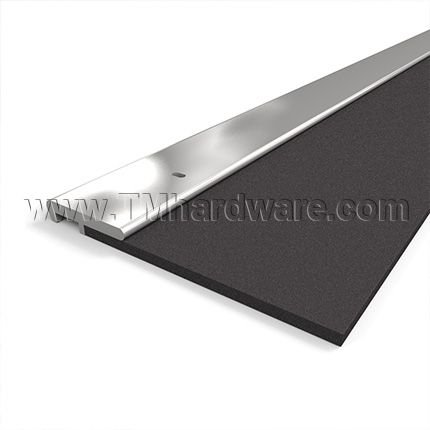

NGP 197N door sweep, with a .875" aluminum casing, is fitted with a 1.5625" neoprene extrusion which is smoke, fire and air infiltration rated. It is surface applied to create a seal between the door bottom and threshold / floor surface. Casing comes with choice of finishes. Length is custom cut to size.

PRICED PER FOOT - See full product details and specs in the tabs below

See tabs below for additional information
    • SKU
      NG197NA
      • 15% off
      Market price: $13.65 save $1.98
    • Starting price: Price: $11.67 per foot

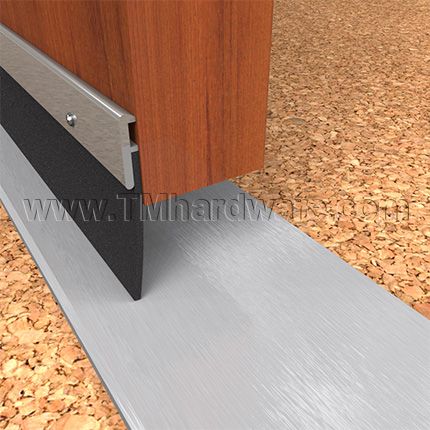

    NGP 197N door sweep, with a .875" aluminum casing, is fitted with a 1.5625" neoprene extrusion which is smoke, fire and air infiltration rated. It is surface applied to create a seal between the door bottom and threshold / floor surface.

    Installation: Installation Guide and #6 x 1" stainless steel sheet metal screws furnished. Screw holes slotted for adjustment.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 3 year guarantee against defects in material and workmanship.
     Click here to view our Full Warranty Policy.

    See also our NGP 199N Door Sweep, 1.25" Aluminum Casing with 1.1875" Neoprene Seal

      • SKU
        NG197NA
    • QuickShip
      No
    • Manufacturer
      National Guard Products
    • MPN
      197N
    • About this Product
      • Door Shoe Retainer Material
        Aluminum
      • Temperature Range
        -20°F to 200°F
      • Door Type
        Wooden Door, Metal Door
      • Seal Type
        Neoprene Rubber Seal
      • Mounting
        Surface Mounted

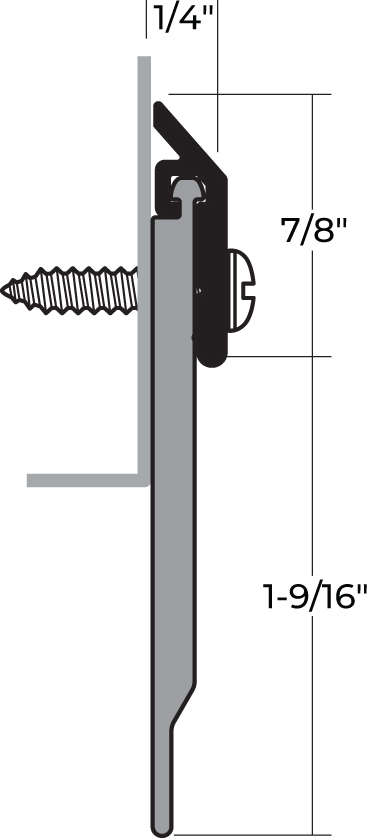

    • Dimensions
      • Seal Height
        1-11/16" Height
      • Total Height
        2-9/16" Height
      • Length
        Custom Cut to Size
    • Installation
      • Drill Holes
        Drill holes are provided
      • Installation Screws
        #6 x 1" stainless steel sheet metal screws provided
    • Finishes
      • Finish

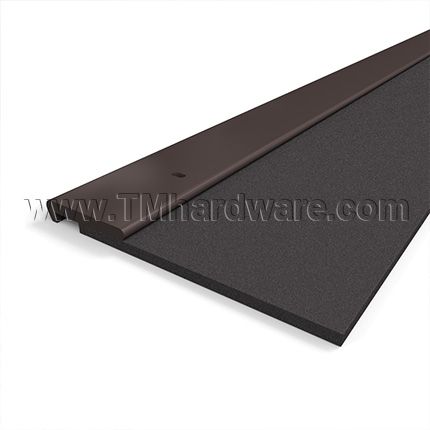

        Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313)
    • Compliance Details
      • Compliance Details
        Fire Rated, Smoke Rated, BHMA Certified, Air Infiltration Rated, UL Classified
      • ANSI Designation
        R3B436
      • Warranty
        3 Year Limited Warranty

    The following finishes comply with ANSI/BHMA Codes

    • Anodized Aluminum US28 / 628
