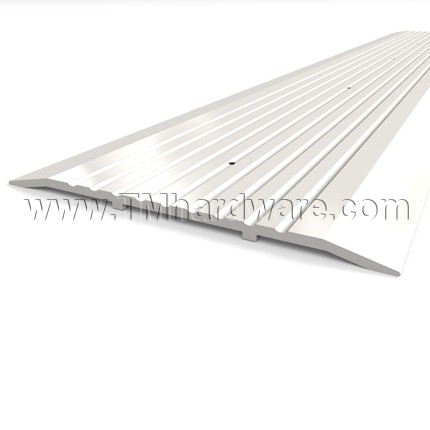

Zero #546 Door Threshold, 6" Wide, .25" Height

This Zero #546 threshold is wheelchair accessible and fire rated. It finishes off doorways nicely and creates a smooth transition between floor surfaces. It is also effective in dust and draft elimination. Available in a variaty of finishes and is custom cut to size.

PRICED PER FOOT

See tabs below for additional information

Finish
Length
Add Full Body Strength
Add Epoxy Abrasives

Quantity

Add to compare

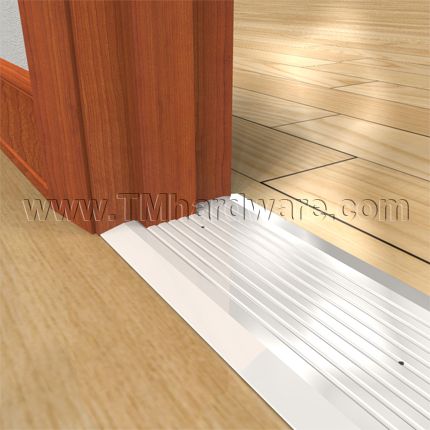

This Zero Door threshold is wheelchair accessible and fire rated. It finishes off doorways nicely and creates a smooth transition between floor surfaces. It is also effective in dust and draft elimination.

Installation: Installation instructions and screws provided. If threshold is being drilled into concrete, an Expansion Anchor is recommended.

Drilling: Drilling for threshold is not supplied unless specified and template is provided. Please contact us or call at 845-388-1300 to supply template.

Additional Options- Select from options above:

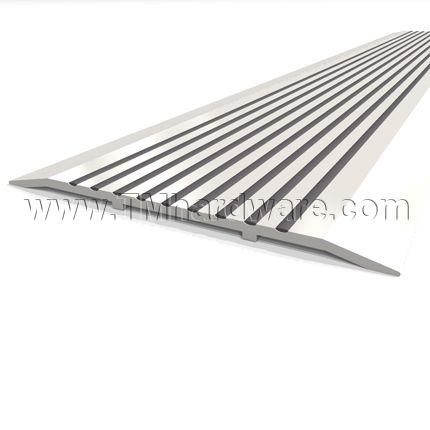

Non-Stick Epoxy Abrasives can be bonded into the grooves. The tread provides a coefficient of friction of 1.02 dry and 0.98 wet to comply with ADA, OSHA and most local building codes requirements.

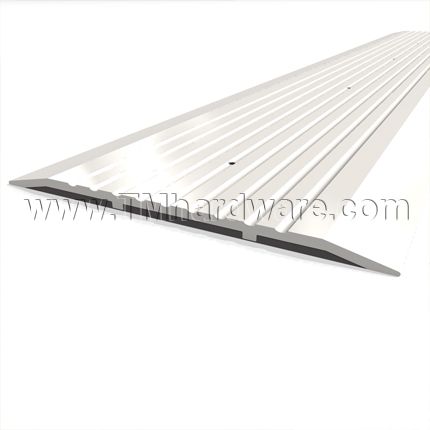

Full Body Strength: An aluminum composite filler containing aluminum oxide and silicone carbide. Ideal applications include heavy commercial traffic in supply rooms, manufacturing buildings, schools, cafeterias, automobile dealers, hospitals, industrial facilities.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

Click here to go back to our Door Threshold Homepage.

- SKU
  ZR546A
QuickShip
No
Manufacturer
Zero International
MPN
546
Dimensions
- Overall Height
  .25" Height
- Overall Width
  6" Width
- Threshold Length
  Custom Cut to Size
- Required Door Clearance
  .375" Height
- Thickness
  .125" Thick
Product Design
- Flat Saddle Design
  Fluted (Grooved) Design
- Threshold Type
  Flat Utility Threshold
- Material
  Aluminum
Installation
- Drilling Holes
  Threshold is not provided drilled
Finishes
- Finish
  Mill Finish Aluminum (US27), Black Anodized Aluminum (315), Dark Bronze Anodized Aluminum (313), Gold Anodized Aluminum, Flat Black (US19)
Compliance Details
- Compliance Details
  Fire Rated, ADA Compliant, BHMA Certified
- ANSI Designation
  J32100, J32130, J32230, J32200

Click to Print

product specs z546

Click to Print

compliance details for z546

SHIPPING / PROCESSING TIME:

This product ships directly from the manufacturer.

This product ships directly from the manufacturer.

Please allow 2 - 3 weeks to ship

Domestic Shipping Fees- (Hawaii and Alaska not Included):
- FREE SHIPPING on orders over $300.00 (excludes oversized and freight orders).
- There will be a flat $19.99 shipping and handling fee on orders under $300.00.
- Oversize: Orders containing items sized 50" - 95" have an oversize surcharge of $49.99.
- Freight Items: Orders containing items sized 96" - 108" have an oversize surcharge of $199.99.
- Oversize Freight Items: Orders containing items sized 109" and above have an oversize surcharge of $299.99.
- Orders totals above $2,000.00 will ship free, regardless of size.
Alaska and Hawaii, Canada, and International Shipping:
- Please see our Shipping Information page for details.
Returns:
- This product is custom made and is not returnable.
- We are committed to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 30% restock fee.
- CLAIMS FOR SHORTAGE OR DAMAGE IN TRANSIT: All claims must be made within Seven (7) days of receipt of goods.
- Weatherstripping products will not be considered for returns.
- Item must be in new, re-saleable condition.
- Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
- Return shipping is customer's responsibility. A return address will be provided with RMA#.
- If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.

5.0

2 Reviews

Ratings Distribution

5 Stars 100 2

4 Stars 0 0

3 Stars 0 0

2 Stars 0 0

1 Star 0 0

Reviewed by 2 customers

Great overlays for dented exterior door thresholds

Comments about Zero #546 Door Threshold, 6" Wide, .25" Height

I used these as overlays of dented thresholds in two Therma Tru doors. They are bullet proof compared to the ones that came on the doors. The dimensions were very precise which made installing them very easy and the fit perfect.

By Hugh

Verified Buyer
