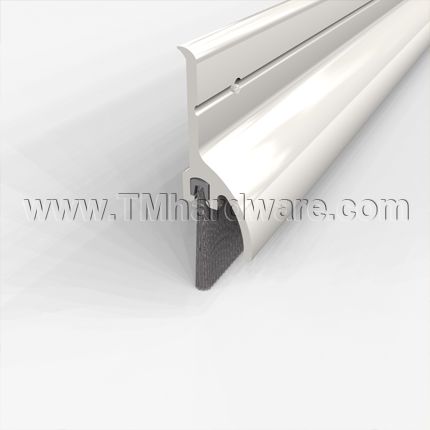

Pemko #3452NB Door Sweep, 1.25" Aluminum Rain Drip with .82" Nylon Brush

This door bottom sweep is great for the outdoors. The high quality aluminum casing has a rain drip design which deflects water and prevents seepages through the gap under doors. It has a nylon brush seal which reduces infiltration of drafts, moisture, air and dust. Available in many finishes and is custom cut to size.

PRICED PER FOOT.

See tabs below for additional information

Finish
Size

Quantity

Add to compare

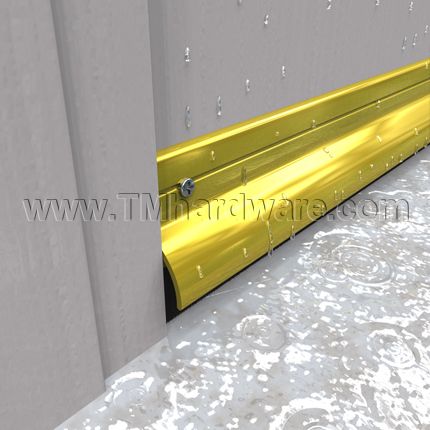

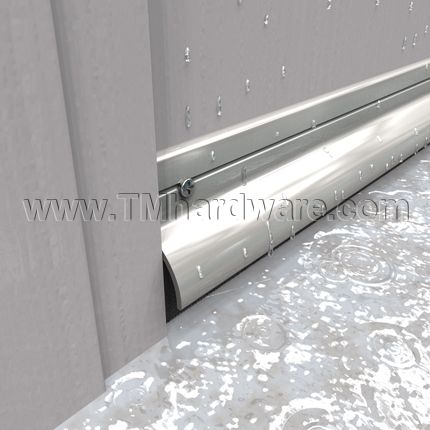

This door bottom sweep is great for the outdoors. Its casing has a rain drip design which deflects water and prevents seepage through the gap under doors. It is made of heavy duty aluminum which will last through many usages.

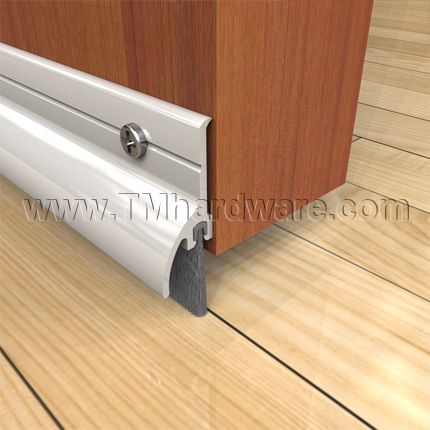

The seal is made of a .8" high quality type 6 nylon brush seal, which will reduce infiltration of air, drafts, moisture and dust. The densely packed bristles remain flexible in extreme weather and conform well to surface irregularities. It is surface mounted to the face of the door.

Installation instructions and screws provided.

Inserts: Clear anodized aluminum is supplied with a gray brush while all other finishes are supplied with a black brush. To request other combinations, contact us or call us at 845-388-1300.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year warranty against defects in material and workmanship.
Click here to view our full Warranty Policy.

For a larger casing and brush size see Aluminum Rain Drip Door Bottom with 1" Nylon Brush Seal.

- SKU
  PK3452CNB
QuickShip
No
Manufacturer
Pemko Manufacturing
MPN
3452NB
About this Product
- Door Shoe Retainer Material
  Aluminum
- Door Type
  Wooden Door, Metal Door
- Seal Type
  Nylon Brush Seal
- Mounting
  Surface Mounted

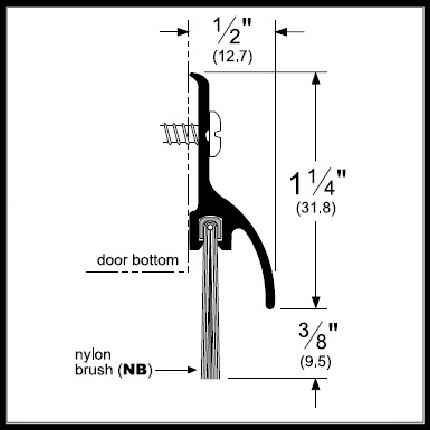

Dimensions
- Seal Height
  3/8" Height
- Total Height
  1-1/4" Height
- Additional Dimensions
  Door seal is 1/2" thick
- Length
  Custom Cut to Size
Installation
- Drill Holes
  Drill holes are provided
Special Features
- Rain Drip Cap
  Yes
Finishes
- Finish
  Clear Anodized Aluminum (US28), Oil Rubbed Bronze, Equiv. (10BE), White Suede Powder Coat, Satin Nickel Anodized Aluminum, Black Suede Powder Coat
Compliance Details
- Compliance Details
  Smoke Rated, Fire Rated, BHMA Certified, UL Classified
- ANSI Designation
  R3A534
- Warranty
  5 Year Limited Warranty

Click to Print

Click to View Ratings Explained

Finishes Comply with the Following ANSI / BHMA Codes:

Clear Anodized Aluminum - US28 / 628
Dark Bronze Anodized Aluminum - US10B / 710
Bright Dip Gold Anodized Aluminum - US3 / 707
Gold Anodized Aluminum - US4 / 688
Satin Nickel Anodized Aluminum - US15 / 619
Painted White Aluminum - 714
