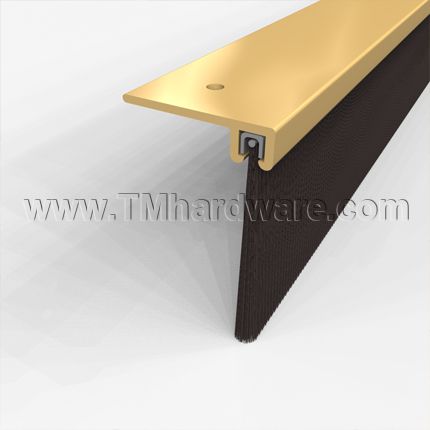

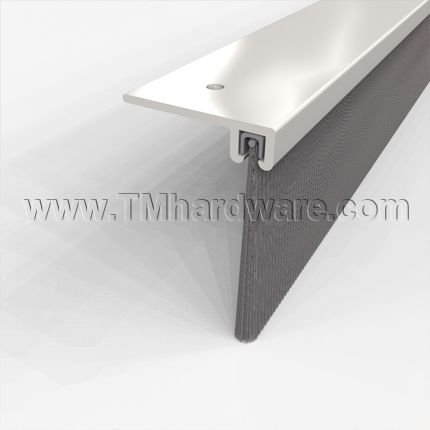

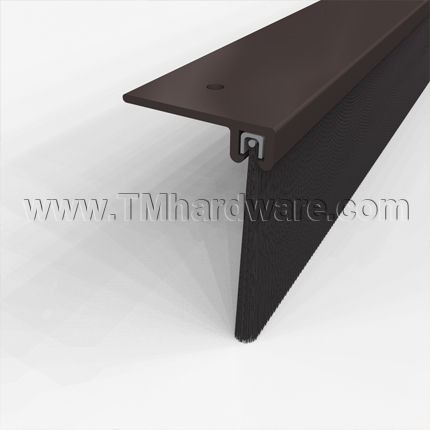

This fire and smoke rated aluminum door bottom sweep is fitted with a nylon brush which will seal the gap beneath the door, preventing dust, drafts, air, wind, insects and water infiltration. The casing is fully mortised and can be applied to the cavity under a hollow metal door or to a wooden door. Available in various finishes and is custom cut to size.
PRICED PER FOOT

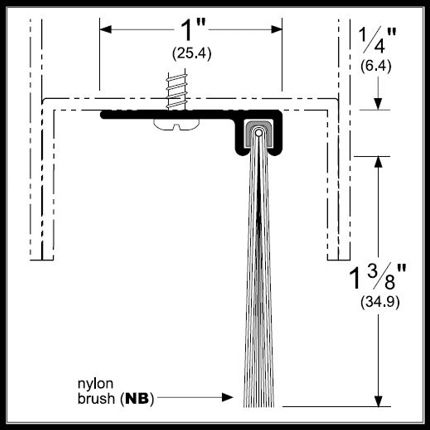

This door sweep, fitted with a 1.375" nylon brush, is sure to provide a strong seal against dust, drafts, water, insects, smoke and light from infiltrating. Nylon is highly resistant to chemicals, mold and mildew, remains flexible in weathers down to -40oF and over 400oF, and is extremely long-lasting. The bristles easily conform to the contours of all surfaces, and will operate with extremely low closing force.

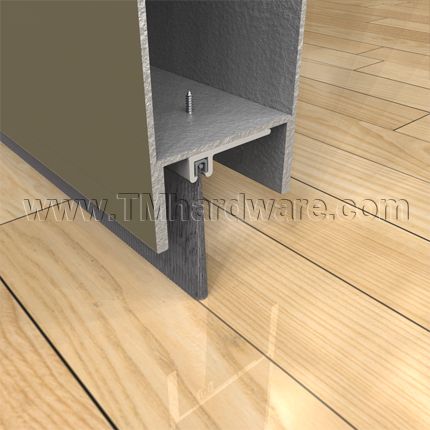

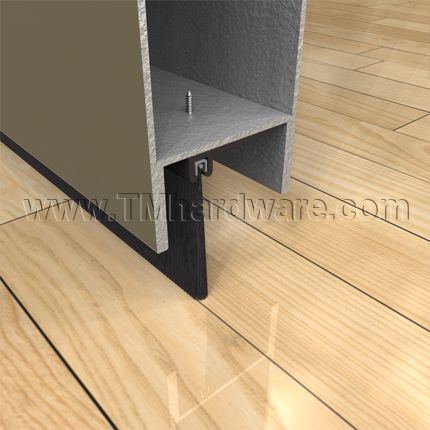

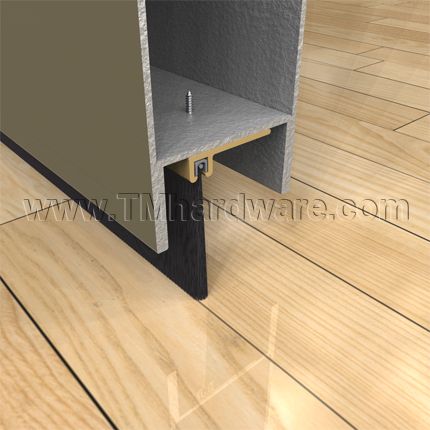

This door sweep has a sleek aluminum casing and will fill gaps of 1.625". Its aluminum casing is applied to the cavity under hollow metal doors, which eliminates exposed casing and mounting screws for an aesthetic appeal. The casing is punched with slotted holes allowing for easy adjustment once installed. This door sweep works well with both hollow metal and wooden doors, and is great for both home and commercial use.
Installation instructions and screws provided. Screws are colored to coordinate with casing.
Brush Inserts: Clear Anodized is supplied with a grey insert, Dark Bronze Anodized and Gold Anodized is supplied with a black insert. Other combinations can be requested. Contact Us or call us at 845-388-1300 to place a request.
Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.
This product has a 5 year guarantee against defects in material and workmanship.
Click here to view our full Warranty Policy.
For smaller gaps, see our Door Sweep with .375" Brush.
Click to View Ratings Explained
Finishes Comply with the Following ANSI / BHMA Codes:
Used this for sliding barn door on that replaced hinged bathroom door. Barn door left large gap ( approx. 1 3/8") all around. Privacy and sound attenuation were an issue. This product was used on the sides and top to enclose door. It also gave the door a positive open and close position, an unexpected plus!
Sweep designed for commercial use. Had custom application for privacy between interior barn door and wall. Searched many places before I found TM Hardware. This sweep is perfect. Custom sizing for my need. Quality finish, so looks great for visible interior use. Came with wood and metal screws for multiple uses. Love and will use again.
