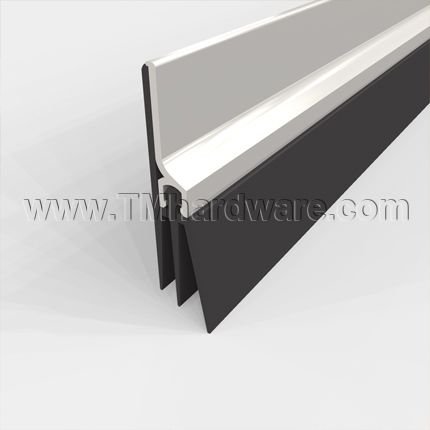

Pemko #57V Door Bottom, .875" Aluminum Casing with .875" Triple Fin Eco-V Seal

This door sweep can be used to seal gaps up to .875" (7/8") between the door and threshold, or to the floor surface. It is fitted with an Eco-V™ (Vinyl) Triple Fin extrusion. The Triple Fin design conforms to surface irregularities and is great over uneven floor surfaces. This model is recommended for mainly outswing doors. Available in various aluminum finishes and is custom cut to size.

PRICED PER FOOT.

See tabs below for additional information

Finish
Size

Quantity

Add to compare

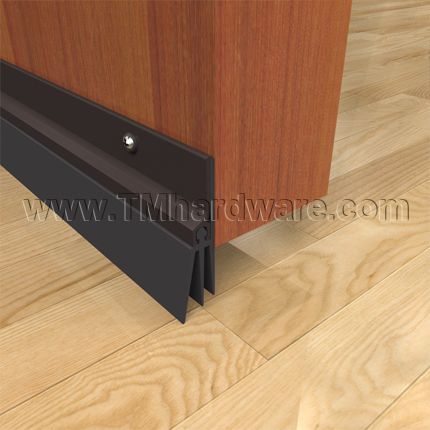

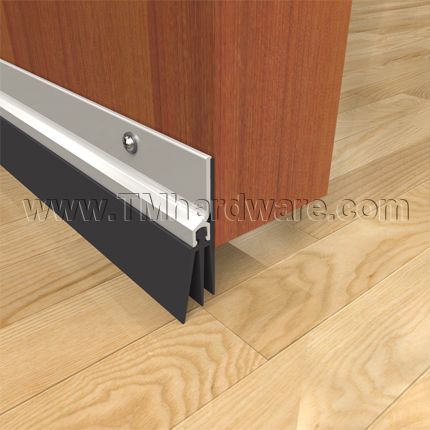

This door bottom sweep is surface mounted to the face of the door to seal gaps up to .875" (7/8") between the door and threshold, or directly to the floor surface.

The .875" (7/8") aluminum channel is fitted with a sturdy Eco-V™ (Vinyl) extrusion. Eco-V is comparable to vinyl, though it is a newer, greener and more environmentally friendly version and surpasses the quality and durability of standard vinyl. The Eco-V Vinyl carries a UL GreenGuard Gold Certification, which aids in acquiring LEED Certification.

The Triple Fin design conforms well to surface irregularities and is great over uneven surfaces, such as stone or carpet. This model is recommended for mainly outswing doors.

Installation Guide and Screws provided. Screws are colored to coordinate with casing

Insert Colors: Inserts for all finishes are black.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.
Click to view our Full Warranty Policy.

Click here to view all our Door Bottoms with Eco-V Vinyl Seal.

- SKU
  PK57AV
QuickShip
No
Manufacturer
Pemko Manufacturing
MPN
57V
About this Product
- Door Shoe Retainer Material
  Aluminum
- Door Type
  Wooden Door, Metal Door
- Seal Type
  Eco-Vinyl Rubber Seal
- Mounting
  Surface Mounted
Dimensions
- Seal Height
  7/8" Height
- Total Height
  1-3/4" Height
- Additional Dimensions
  Door seal is 1/4" thick
- Length
  Custom Cut to Size
Installation
- Drill Holes
  Drill holes are provided
Finishes
- Finish
  Mill Finish Aluminum (US27), Oil Rubbed Bronze, Equiv. (10BE), White Suede Powder Coat
Compliance Details
- Compliance Details
  GreenGuard Gold Certified
- Warranty
  5 Year Limited Warranty

Click to Print

Click to Print Installation Guide

Click to View Ratings Explained

Finishes Comply with the Following ANSI / BHMA Codes:

Aluminum Mill Finish - US27 / 719
Dark Bronze Anodized Aluminum - US10B / 710
Bright Dip Gold Anodized Aluminum - US3 / 707
Gold Anodized Aluminum - US4 / 688
Satin Nickel Anodized Aluminum - US15 / 619
Painted White Aluminum - 714
