Deltana, 2 Ball Bearings, Brass, Heavy Weight, 5 Knuckle, Full Mortise Hinge, 4.5" x 4.5"

Deltana DSB45B is a Full Mortise, 5 Knuckle, 2 Ball Bearing Hinge, and is made of Solid Brass. Size of hinges is 4-1/2" x 4-1/2" with Square Corners and Button Tip Finials. Available in choice of finishes.

PRICED PER PAIR - See full product details and specs in the tabs below

See tabs below for additional information

Finish
Pin Type

Quantity

Add to compare

Available Finishes: See options above, see Deltana Hinges Color Chart for a detailed list of all Deltana Finishes.

Finials: Button Tip Provided. See the additional Finial options available.

Priced Per Pair

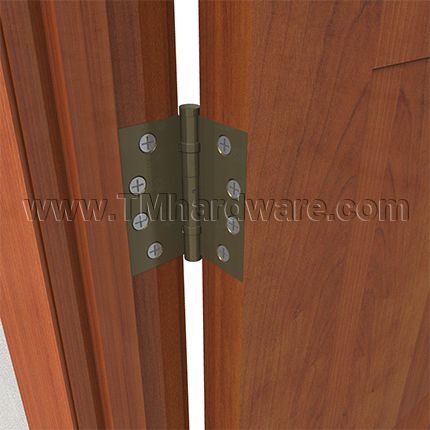

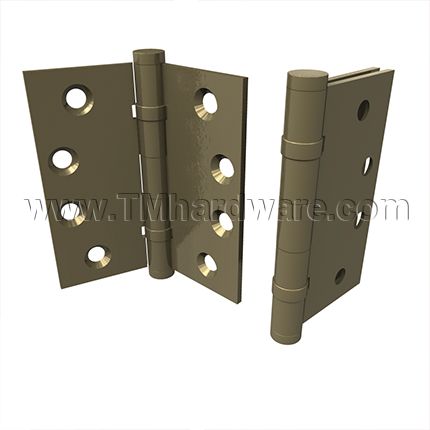

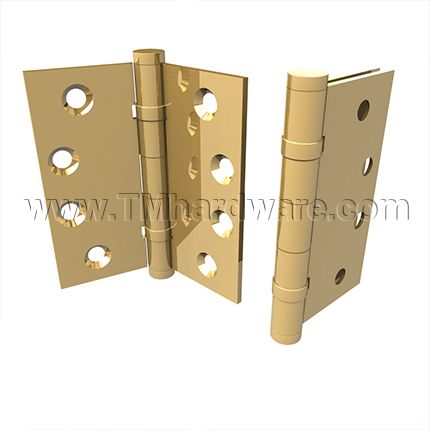

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 1 year warranty against defects in material and workmanship
Click to see our Full Warranty Policy.

For larger hinges, see our Deltana 1/4" Radius Corner Hinge, Two Ball Bearings, 4-1/2" x 4" DSB4540NBW

- Weight
  3 lbs
- SKU
  DTDSB45BU3
QuickShip
Yes
Manufacturer
Deltana Hardware
MPN
DSB45B
Product Design
- Hinge Category
  Full Mortised Hinge
- Base Material
  Brass
- Usage Level
  Heavy Duty
- Throw
  Standard Throw
- Bearing Type
  Ball Bearing
- Knuckles
  5 Knuckle Hinge
- Pin Type
  Standard Hinge Pin, Non-Removeable Pin (NRP)
- Hinge Tip Type
  Button Tip
- Hinge Corner
  Square Corner
- Hole Pattern
  Commercial "C" Pattern
- Number of Holes
  8 Holes

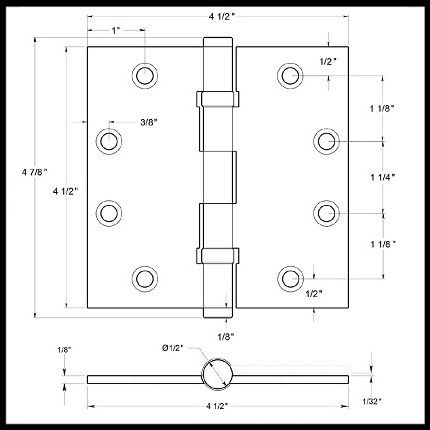

Dimensions
- Hinge Size
  4-1/2" x 4-1/2"
- Hinge Thickness
  .134" Thick
Installation
- Door Type
  Wooden Door, Metal Door
- Installation Screws
  Wooden Screws #12x1-1/4", Machine Screw #12x1/2" Provided
Finishes
- Finish
  Polished Brass (US3), Unlacquered Brass (US3NL), Satin Brass (US4), Antique Brass (US5), Oil Rubbed Bronze (US10B), Polished Nickel (US14), Satin Nickel (US15), Antique Nickel (US15A), Flat Black (US19), Polished Chrome (US26), Satin Chrome (US26D), PVD Polished Brass
Compliance Details
- Warranty
  1 Year Limited Warranty
