Pemko #2266 and #2286 Cover Plate, 5" - 9.5" Fluted Aluminum or PemKote with Beveled Edge, .25" H

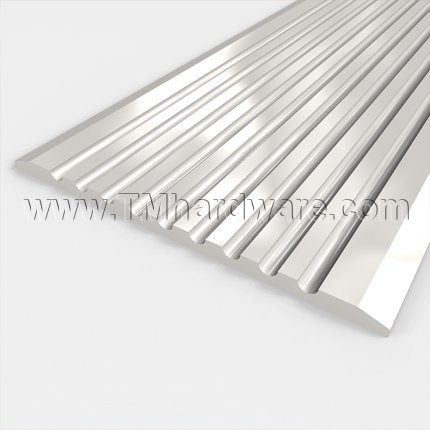

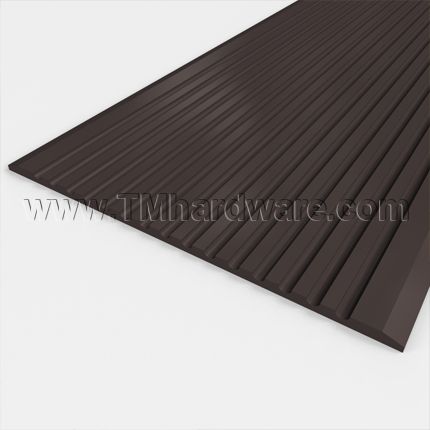

This beveled edge, surface mounted cover plate is made of high quality fluted aluminum that permits slight shifting in adjacent floor surfaces due to seasonal temperature changes, thereby preventing floor warping. The aluminum plate is available in different finishes. Sizes accommodate gaps varying in width. Length is custom cut to size.

PRICED PER FOOT.

See tabs below for additional information

Finish
Drilling
Overall Width
Length

Quantity

Add to compare

Expansion joints are gaps left between two flooring areas to prevent the warping of floor materials resulting from the expansion and shrinkage of certain types of flooring due to seasonal temperature changes. When plates are placed between the floor surfaces, they supply the flexibility needed to allow for possible floor changes.

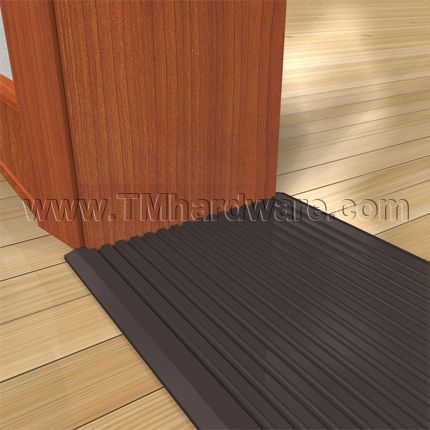

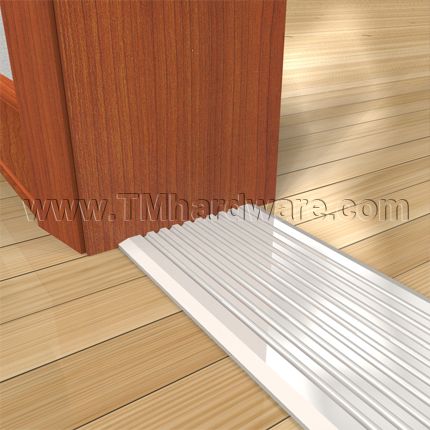

This beveled edge cover plate is applied above the gap and fastened to one side of the floor. This will allow the two floors to move independently of each other. Plates are grooved for greater traction to prevent slipping. Available in aluminum variations and non-slip PemKote™ finish.

Dimensions: Standard widths are available and length is custom cut to size. Plates have a height of .25”.

Installation Notes: Elevated plates require support every 4” on center, at welded seams or as needed for support. For support beam, see our .5" Height Aluminum or Bronze Cover Plate Support.

Drilling: Drilling is recommended for PemKote™ finish, as it is really difficult to drill through this coating. Plates are drilled in standard locations if specified above in options. For custom drilling holes and locations a template will need to be supplied. Please contact us or call us at 845-388-1300 for details.

ADA Compliant
Fire Rated
Width available in standard sizes, Length is custom cut
.25" Height
Surface mounted above expansion joints
Prevents floor warping

Installation screws provided. Screws are colored to blend unobtrusively with the casing.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 5 year guarantee against defects in material and workmanship.
PemKote™ Finish has a 10 year guarantee.
Click here to view our Full Warranty Policy.

Click here to view our Straight Edge Fluted Cover Plates.

- SKU
  PK2266A
QuickShip
No
Manufacturer
Pemko Manufacturing
MPN
2266, 2286
Drilling
Standard Drilling, None
Dimensions
- Overall Width
  5.91" Width, 9.50" Width
- Threshold Length
  Custom Cut to Size
Product Design
- Flat Saddle Design
  Fluted (Grooved) Design
- Threshold Type
  Cover Plate
- Material
  Aluminum
Finishes
- Finish
  Mill Finish Aluminum (US27), Dark Bronze Anodized Aluminum (313)
Compliance Details
- Compliance Details
  Fire Rated, ADA Compliant, BHMA Certified
- Warranty
  5 Year Limited Warranty

Click to Print

#2266 Product Specs:

#2286 Product Specs:

Note, for illustrative purposes only! For accurate product images, refer to product specs and detailed images above.
