Zero #350, Automatic Door Bottom, Mortised with Neoprene Seal, .75" Drop

Zero International #350 Mortised Automatic Door Bottom
Zero International
Read 1 review

Need it fast? Our Similar Product Barzen AM10 Automatic Door Bottom — ships next business day at a lower price. Available in custom sizes

This Zero International #350, Fully Mortised, Regular Duty Automatic Door creates a tight seal at the bottom of doors to prevent infiltration of sound, light, drafts and more. Fitted with a solid neoprene seal and high quality mechanism that has been successfully tested through 5 million cycles! This model is fire rated. Length is custom cut to size (see below for details).

Note, this product is priced per range with 18.25" - 36" being the lowest priced range. To determine sizing needed, see How to Measure for an Automatic Door Bottom.

See tabs below for additional information
    • SKU
      ZR350AA|36
      • 43% off
      Market price: $126.56 save $54.04
    • Starting price: Price: $72.52 per item


    The fully mortised aspect of this automatic door bottom is great for high end designer doors and luxury hotels and condo units that prefer their doors maintain their clean unobtrusive look. This automatic door bottom is a great options to soundproof everyday noises or for weatherproofing exterior doors.

    About Light Spring Strength:  Light Spring Strength requires less operating force to activate than standard Strength. Light Spring is compatible with ADA Compliant Doors and can be easily used by those with limited mobility. Can also be applied to sliding doors. Casing dimensions remain the same. Select from options above if required.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size many be enlarged to show detail. See product specs for exact measurements.

    This product is guaranteed for 1 years against defects in material and workmanship.
    Click to view our     Full Warranty Policy.

    Click here to see all our Drop Down Acoustical Bottom Seals.

      • SKU
        ZR350AA|36
    • QuickShip
      No
    • Manufacturer
      Zero International
    • MPN
      350
    • Product Design
      • Mounting Type
        Fully Mortised
      • Door Type
        Wooden Door
    • Dimensions
      • Casing Dimensions
        Casing measures 1.560" H by 1.45" total width. Body measures .705" in width.
      • Length
        Custom Cut to Size
      • Drop Size
        Up to .75" Drop
      • Suggested Door Cut-Out
        3/4" x 1-9/16"
      • Door Thickness
        1-3/4" Thick
    • Installation
      • Handing
        Non-Handed
      • Installation Screws
        Installation Screws Provided
      • Sizing
        To determine sizing required see 'How to Size an Automatic Door Bottom'
    • Additional Options - Purchase Through Our Office
      • Colored End Caps
        Yes
    • Finishes
      • Finish
        Mill Finish Aluminum (US27)
    • Compliance Details
      • Compliance Details
        Fire Rated, BHMA Certified
      • ANSI Designation
        R3B3241
      • Warranty
        5 Year Limited Warranty

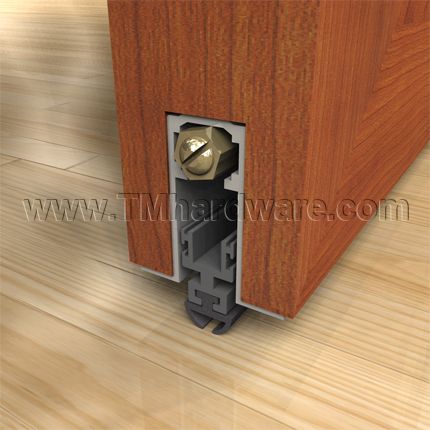

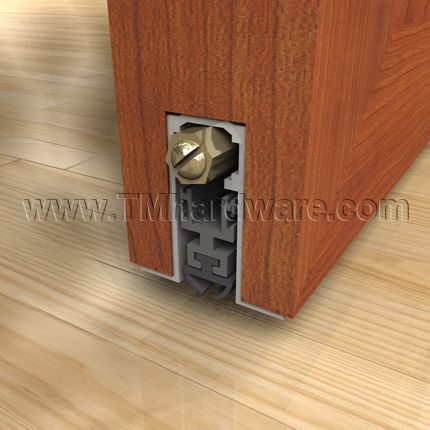

    Automatic Door Bottoms utilize a concealed flat spring mechanism and plunger. When the door is closed, a brass plunger is compressed to automatically lower the seal, starting from the hinge side first. This motion ensures a smooth usage even on an uneven surface and prevents drag. The seal is automatically raised upon opening. These automatic door bottoms have been successfully tested through 5 million cycles!

    See also About Automatic Door Bottoms.

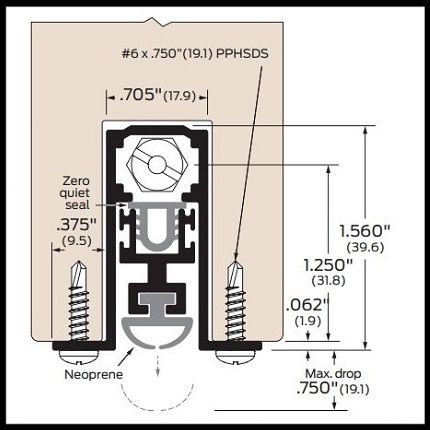

    product specs for z350

    Click here for a Printable Copy of How to Install a Mortised Automatic Door Bottom.

    Automatic Door Bottoms are available with three mounting options: Surface Mounted, Semi-Mortised and Fully Mortised. A surface mounted application can be applied without removing the door from its hinges. For a semi-mortised, if the rabbet in the door is cut-out already, the door does not need to be removed. For a fully mortised application the door should be removed before starting.

    STEP 1: PREPARE YOUR DOOR BOTTOM

    How to Install a Mortised Automatic Door Bottom - Preparing Your Door Bottom

    Remove door and cut mortise in bottom of door as per the dimensions of the provided product specs.

    NOTE: If a door is fire labeled or of special construction, mortise preparation must be done by the door manufacturer.

    STEP 2: MEASURE AND TRIM YOUR DOOR BOTTOM

    How to Install a Mortised Automatic Door Bottom - Measure Your Door

    Measure your door from side to side. That will determine the length required for your Door Bottom.

    How to Install a Mortised Automatic Door Bottom - Trim Your Door Bottom

    Once you have you determine the size needed, if necessary, trim your door bottom. Use a chop saw or table saw to create a perfectly straight cut.

    Note, Only trim opposite the actuating plunger, brass nut. (Trimming from the brass nut side will ruin your ADB). You can trim from the edge up to one inch of the screw on the side wall of the ADB.


    STEP 3: APPLY YOUR AUTOMATIC DOOR BOTTOM

    How to Install a Mortised Automatic Door Bottom - Apply Your Automatic Door Bottom

    With door removed from opening, install the door bottom with plunger at the hinge side, fasten with screws provided and install door in opening.

    STEP 4: ADJUSTING YOUR AUTOMATIC DOOR BOTTOM

    How to Install a Mortised Automatic Door Bottom - Adjust Your Automatic Door Bottom

    Screw the actuating plunger in or out as required until the gasketing just touches the sealing surface when the door is closed.

    It is not necessary to squash the gasket to provide an effective seal.

    Once you have followed through with all the instructions your Automatic Door Bottom is good to go! Enjoy years of quality sound, draft and light infiltration control with your new door bottom.




    SHIPPING / PROCESSING TIME:

    This product ships directly from the manufacturer.
    This product ships directly from the manufacturer.
    Please allow 2 - 3 weeks to ship



    • Domestic Shipping Fees- (Hawaii and Alaska not Included):
      • FREE SHIPPING on orders over $300.00 (excludes oversized and freight orders).
      • There will be a flat $19.99 shipping and handling fee on orders under $300.00.
      • Oversize: Orders containing items sized 50" - 95" have an oversize surcharge of $49.99.
      • Freight Items: Orders containing items sized 96" - 108" have an oversize surcharge of $199.99.
      • Oversize Freight Items: Orders containing items sized 109" and above have an oversize surcharge of $299.99.
      • Orders totals above $2,000.00 will ship free, regardless of size.

    • Alaska and Hawaii, Canada, and International Shipping:
    • Returns:
      • This product is custom made and is not returnable.
      • We are committed to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 30% restock fee.
      • CLAIMS FOR SHORTAGE OR DAMAGE IN TRANSIT: All claims must be made within Seven (7) days of receipt of goods.
      • Weatherstripping products will not be considered for returns.
      • Item must be in new, re-saleable condition.
      • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
      • Return shipping is customer's responsibility. A return address will be provided with RMA#.
      • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
