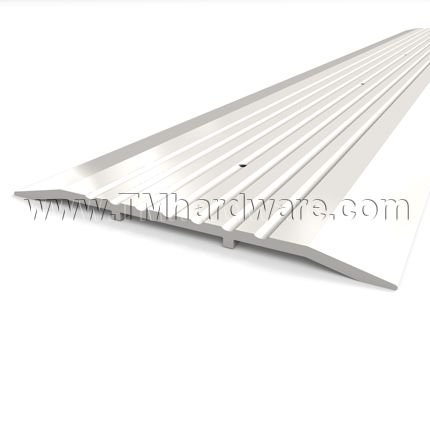

Zero #545 Utility Threshold, 5" Aluminum, Bronze or Anodized, .25" Height

Need it now? Stock sizes are available to ship within 1 business day! Click here for our Barzen, 5" Wide Flat Door Threshold.

Zero #545 Features a high quality low profile door threshold to finish off doorways and create smooth transitions between floor surfaces. It is wheelchair compatible and fire rated. It is built from heavy duty material for long life performance. Comes many finishes and is custom cut to size. Optional epoxy non-slip filling and full body strength available, see details below.

PRICED PER FOOT.

Note: This item currently has an extended lead time.

See tabs below for additional information

Finish
Size (Inches)
Provide with No Holes
Add Full Body Strength
Add Epoxy Abrasives

Quantity

Add to compare

This Threshold is a high quality low profile door threshold to finish off doorways and create smooth transitions between floor surfaces. It is wheelchair compatible and fire rated. It is built from heavy duty material for long life performance.

Finishes: Available in many different finishes; choose from dropdown below. (Oil Rubbed Bronze can also be purchased through our office, for an additional 49% of standard bronze pricing)

A Note on Finishes: Aluminum Mill Finish is plain smooth metal as it comes from the mill, without a coating. Bronze is a mill finish, sometimes referred to as Architectural Bronze. It is a solid bronze piece, which increases longevity and aesthetics, thus the large difference in price. It gets darker in color in time when exposed to the environment. Anodizing is an electrolytic process that applies a corrosion-resistant coating to the aluminum for longer wear and color maintenance. All Zero's anodized products are anodized to 204 (dipped four times)!

Installation: Installation instructions and screws provided. If threshold is being drilled into concrete, an Expansion Anchor is recommended.

Drilling: This product is drilled at standard factory locations.

Additional Options - Select from options above:

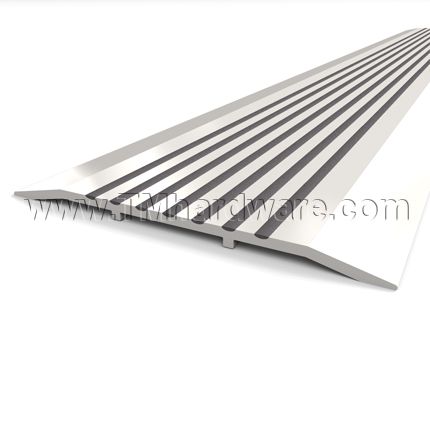

Non-Stick Epoxy Abrasives can be bonded into the grooves. The tread provides a coefficient of friction of 1.02 dry and 0.98 wet to comply with ADA, OSHA and most local building codes requirements.
Full Body Strength: An aluminum composite filler containing aluminum oxide and silicone carbide. Ideal applications include heavy commercial traffic in supply rooms, manufacturing buildings, schools, cafeterias, automobile dealers, hospitals, industrial facilities.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 1 year guarantee against defects in material and workmanship.
Click here to view our full Warranty Policy.

- SKU
  ZR545A
QuickShip
No
Manufacturer
Zero International
MPN
545
Dimensions
- Overall Height
  .25" Height
- Overall Width
  5" Width
- Threshold Length
  Custom Cut to Size
- Required Door Clearance
  .375" Height
- Thickness
  .125" Thick
Product Design
- Flat Saddle Design
  Fluted (Grooved) Design
- Threshold Type
  Flat Utility Threshold
- Material
  Aluminum
Installation
- Drilling Holes
  Drilling holes provided
- Fasteners
  Fasteners Provided
Finishes
- Finish
  Mill Finish Aluminum (US27), Black Anodized Aluminum (315), Dark Bronze Anodized Aluminum (313), Gold Anodized Aluminum, Bronze Mill Finish (Brass), Flat Black (US19)
Compliance Details
- Compliance Details
  BHMA Certified, Fire Rated, ADA Compliant
- ANSI Designation
  J32100, J32130, J32200, J32230
