Securitron WSS-WSD Wave Sense Switch

WSS-WSD Wave Sense Switch is a fresh approach to contactless, hands-free switch activation using motion-detecting technology. Instead of using a push plate or push button, this can be used for request to leave (REX), activation, or on/off switching to activate a range of access control devices.

Features:

• Active microwave motion sensing using Doppler radar that is more reliable than infrared sensors
• Adjustable sensing zone from 4" to 24" (102mm to 610mm) helps screen out incidental traffic
• FCC-certified for use in general and medical environments
• Touchless activation for hands-free operation reduces transmission of germs
• Pulse mode to initiate action or toggle mode to provide on/off switch
• Mounting ring included or install in standard plastic or metal gang box
• Water-resistant foam gasket included

Dimensions :

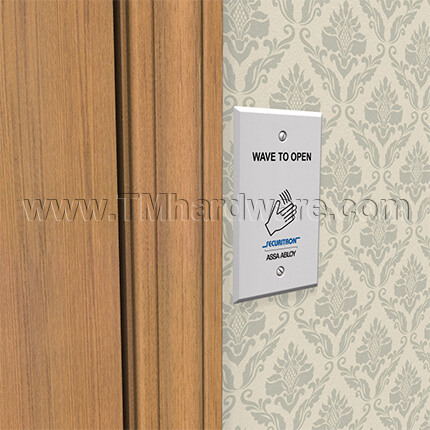

• Single gang faceplate:  4-1/2" x 2-3/4" [114mm x 70mm]

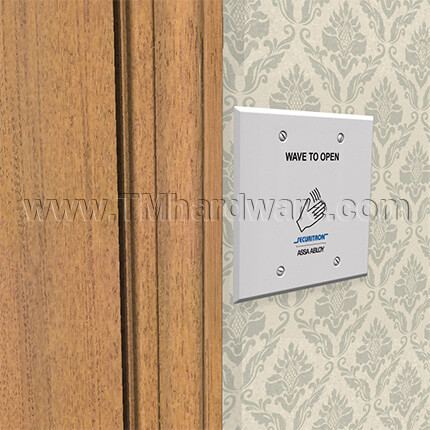

• Double gang faceplate:  4-1/2" x 4-1/2" [114mm x 114mm]

Specifications:

• Operating Temperature: -4˚ to 131˚ F [-20˚ to 55˚ C] , Indoor use
• Electrical: Self-sensing 12 or 24 V DC or AC input (± 10%)
• Maximum Power Consumption:
  • Less than 1.5 W (125 mA at 12 VDC) 1 A SPDT contact can be operated in toggle or pulse mode
  • Pulse output: 0.5 seconds

Optional Accessory:

• Mounting Box - allows the switch to be mounted in outdoor locations not directly exposed to rain or snow  (Only available for Single Gang variant)

Certifications:

• Electromagnetic compatibility to 2004/108/EC
• FCC: G9B-MS08 and IC: 4680A-MS08
