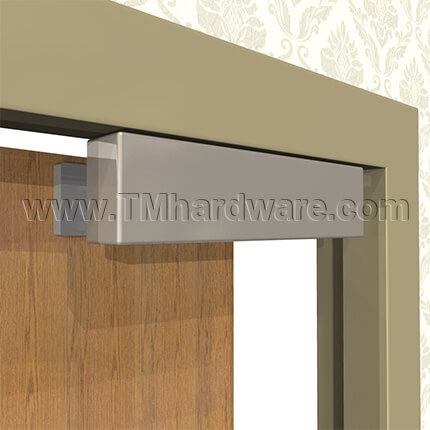

Securitron M82 Durable Magnalocks, Electronic Lock

For interior, perimeter, and external access control, the Securitron M82 Durable Magnalocks is a reliable and simple-to-maintain solution. The Securitron M82 is incredibly durable and will continue to function long after most structures wear out. Applications for hollow metal, concrete-filled metal, wood, glass with aluminum frames, and Herculite doors are supported by flexible mounting choices.

Features:

• Efficient, low power usage
• Automatic dual-voltage —no field adjustment required
• Fully sealed for weather resistant operations
• Rust resistant—all ferrous metal surfaces plated for durability
• Instant release circuit —no residual magnetism
• Noise suppression with built-in MOV
• 10 ft [3.05m] of jacketed, stranded conductor cable
• Ultra-secure collapsing blind nuts mount to door frame for strength and reliability

Optional Feature:

• Mounting Method
  • Face Drilled (F)
  • Gate Conduit (G)
• Monitoring Options
  • BondSTAT Monitor (B)
  • Door Position Switch (D)
  • BondSTAT Monitor & Door Position Switch (BD)
• Strike Plate Options
  • Offset Strike (OS)
  • Split Strike (SS) - not available with BD monitoring
  • Shock Absorbing Strike Mount - (SASM)

Specifications:

• Holding Force:  1,800 lbs [816kg]
• Operating Temperature:  -40˚ to 140˚F [-40˚ to 60˚C], Indoor or Outdoor use
• Electrical:
  • 350 mA at 12 VDC
  • 200 mA at 24 VDC

Certifications:

• UL 10C Listed
• CAN4-S104, CAN/ULC-S533 Listed
• ANSI/UL 294 Listed
• ANSI/BHMA A156.23, Grade 1; E08501-1500 Compliant
• CSFM—California State Fire Marshal Approved
• CE:EN 50081-1(92), EN 61000-6-2(99) Approved

PRICED PER UNIT

This product has a lifetime limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

Click here to view our Securitron DM62 Double Durable Magnalocks, Electronic Lock
