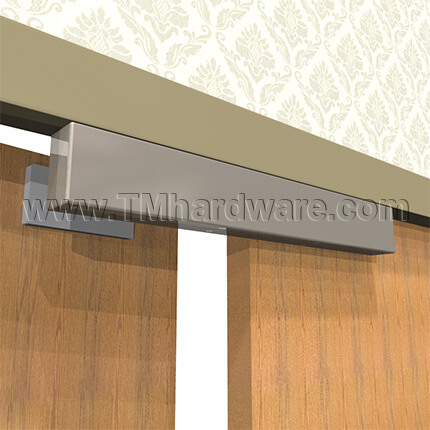

Securitron DM62 Double Durable Magnalocks, Electronic Lock

For interior, perimeter, and external access control, the Securitron DM62 Double Durable Magnalocks is a reliable and simple-to-maintain solution. The Securitron DM62 is incredibly durable and will continue to function long after most structures wear out. Applications for hollow metal, concrete-filled metal, wood, glass with aluminum frames, and Herculite doors are supported by flexible mounting choices.

Features:

• Ultra-secure collapsing blind nuts mount to door frame for strength and reliability
• Fully sealed for weather-resistant operations
• 3' [1 m] of jacketed, stranded conductor cable for each lock
• Automatic dual-voltage —no field adjustment required
• Instant release circuit —no residual magnetism
• Noise suppression with built-in MOV
• Efficient, low-power usage
• Rust resistant — all ferrous metal surfaces plated for durability

Optional Feature:

• Monitoring Options
  • BondSTAT Monitor (B)
  • Door Position Switch (D)
  • BondSTAT Monitor & Door Position Switch (BD)
• Strike Plate Options
  • Offset Strike (OS)

Optional Accessory:

• ASCWB-DM62CL (Alum 1-1/2” Spacer — Concrete/Wood Bracket, DM62, Clear)

Specifications:

• Holding Force:  1,200 lbs [544kg]
• Operating Temperature:  -40˚ to 140˚F [-40˚ to 60˚C], Indoor or Outdoor use
• Electrical:
  • 250 mA at 12 VDC
  • 150 mA at 24 VDC

Certifications:

• UL 10C Listed
• CAN4-S104, CAN/ ULC-S533 Listed
• ANSI/BHMA A156.23, Grade 2; E08511-1000 Compliant
• CSFM- California State Fire Marshal Approved

PRICED PER UNIT

This product has a lifetime limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.
