Securitron CEPT Concealed Electrical Power Transfer

Securitron CEPT Concealed Electrical Power Transfer, 10 Wire, Satin Brass Finish
Securitron

Power and data are safely transferred from the hinge side of the frame to electrified hardware on the door using the heavy-duty, tamper-resistant Securitron CEPT Concealed Electrical Power Transfer. When the door is closed, the device is discretely hidden between the door and frame. With its four finishes and three multi-wire combinations, this unit is a beautiful addition to any architectural environment.

PRICED PER UNIT

See tabs below for additional information
    • SKU
      SCCEPT10-606
      • 42% off
      Market price: $678.00 save $281.37
    • Starting price: Price: $396.63 per item


    Power and data are safely transferred from the hinge side of the frame to electrified hardware on the door using the heavy-duty, tamper-resistant Securitron CEPT Concealed Electrical Power Transfer. When the door is closed, the device is discretely hidden between the door and frame. With its four finishes and three multi-wire combinations, this unit is a beautiful addition to any architectural environment.

    Features:

    • Mortises into the edges of the door and frame
    • Direct retrofit for competitor products
    • Tamper-resistant
    • All metal construction including back boxes
    • 7/8" [22.25mm] knockouts on back boxes accommodate EMF-type fittings
    • Tested to 1 million cycles
    • Compatible with butt hinges up to 6" [152.4mm] and continuous hinges with cutout

    Optional Features:

    • CEPT-10 includes 8–22 AWG wires plus 2–18 AWG wires for higher current devices
    • CEPT-C5E includes CAT5E compatible with 8-24 AWG wires, 1–22 AWG wire, conductor, Molex connectors
    • EL-CEPT is ElectroLynx® compatible with 12-22 AWG wires, ElectroLynx connectors

    Certification:

    • ANSI/UL 10C Listed, 3 hour rated
    • ULC-S318 Listed, 3 hour rated
    • ANSI/SDI-BHMA A250.13 (+/- 150 psi) Windstorm Listed
    • Florida Building Code Approved

    PRICED PER UNIT

    This product has a lifetime limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

    Click here to view our Securitron Cabinet Key Lock

      • SKU
        SCCEPT10-606
    • QuickShip
      No
    • Manufacturer
      Securitron
    • Model

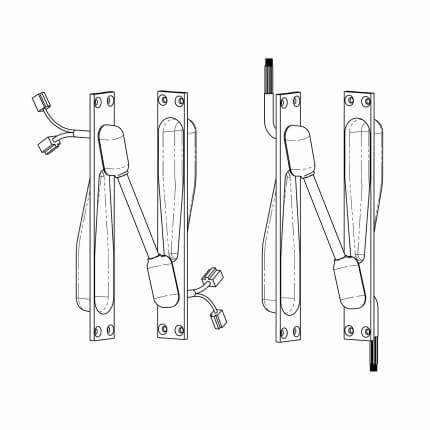

      (CEPT-10) 10 Wire, (CEPT-C5E) CAT-5E, (CEPT-NW) No Wires, (EL-CEPT) Electrolynx® Connectors
    • Finishes
      • Finish

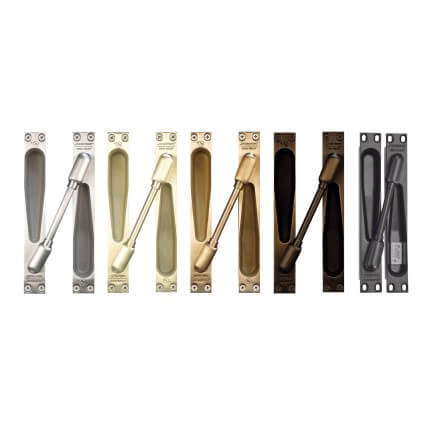

        Satin Brass (606), Satin Bronze (612), Dark Satin Bronze, Equiv (613e), Satin Stainless Steel (630), Black Suede Powder Coat (BSP)
    • Compliance Details
      • Compliance Details
        ULC-S318 Listed, 3 hour rated, Florida Building Code Approved
      • ANSI Designation
        ANSI/UL 10C Listed, 3 hour rated, ANSI/SDI-BHMA A250.13 (+/- 150 psi) Windstorm Listed
      • Warranty
        Lifetime Limited Warranty
