Pemko #XG90KIT Perimeter Gasket Solution with Stop Extender, for Vertical Gaps up to 3/8"

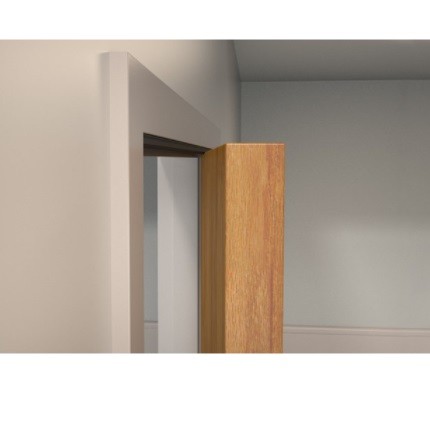

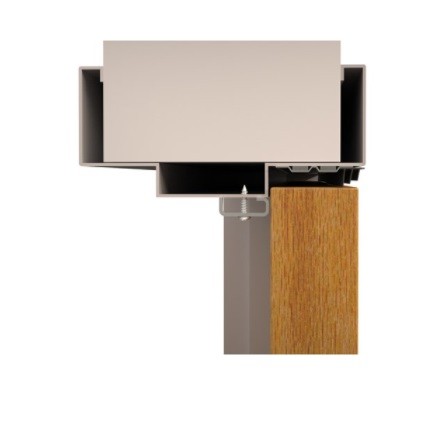

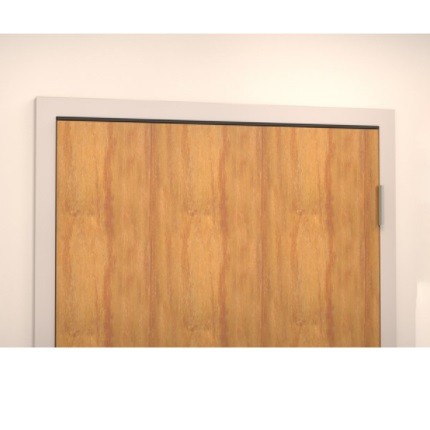

Application Image for Pemko HSS20XGXS773 Combination Intumescent and Silicone Gasket
Pemko Manufacturing

This Pemko product is a kit which includes both HSS20XGxS773 Intumescent with Gasketing, and XP900SP Stop Extender. It can be applied to the frame of a door and seals gaps around the entire opening to regain lost fire ratings resulting from vertical gaps 1/8" - 3/8". Available in a variety of finishes and lengths.

See Excessive Gap Door Solution Brochure for more information.

PRICED PER KIT

See tabs below for additional information
    • SKU
      PKXG90KIT-BK
      • 19% off
      Market price: $70.23 save $13.34
    • Starting price: Price: $56.89 per foot


    XG90KIT is part of the Pemko Excessive Gap Door Solution product line. This Pemko Excessive Gap Solution is designed to restore lost fire ratings resulting from vertical gaps 1/8" - 3/8".

    For more information see the Excessive Gap Solution Brochure.

    XG90KIT Combines:

    • HSS20XGxS772 Glavannealed Steel Door Jamb Portion
    • Triple Fin Silicone Seal
    • XP900SP Door Stop Unit

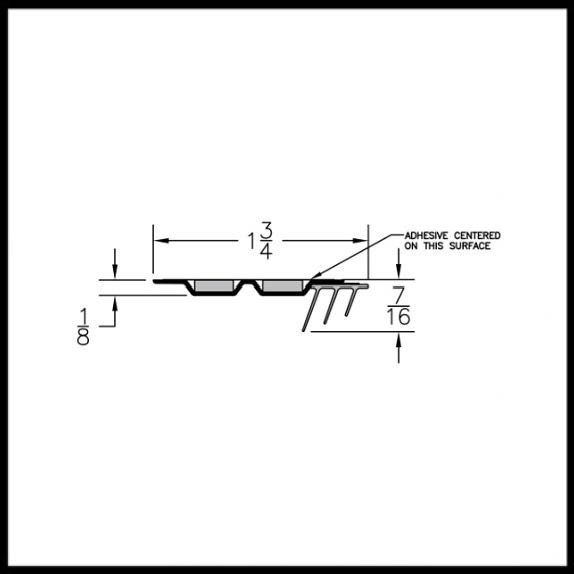

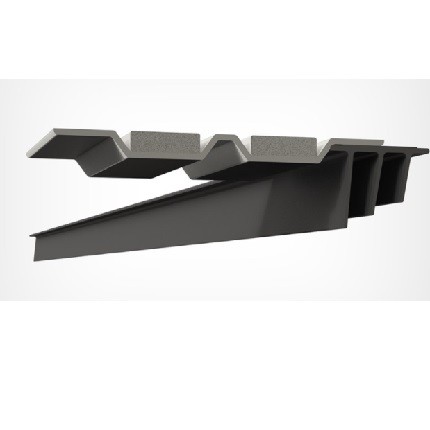

    HSS20XGxS773 Pemko Excessive Gap Self-Adhesive Intumescent with Triple Fin Seal: is a PVC-encased, high performing intumescent with adhesive backing. S773 is Pemko’s triple-fin, high-temperature, silicone fire gasket with adhesive backing. It helps prevent penetration of life threatening hot smoke and hot gasses by expanding and filling the gap between a pair of doors or around the perimeter of the door. No special preparation needed before installation.

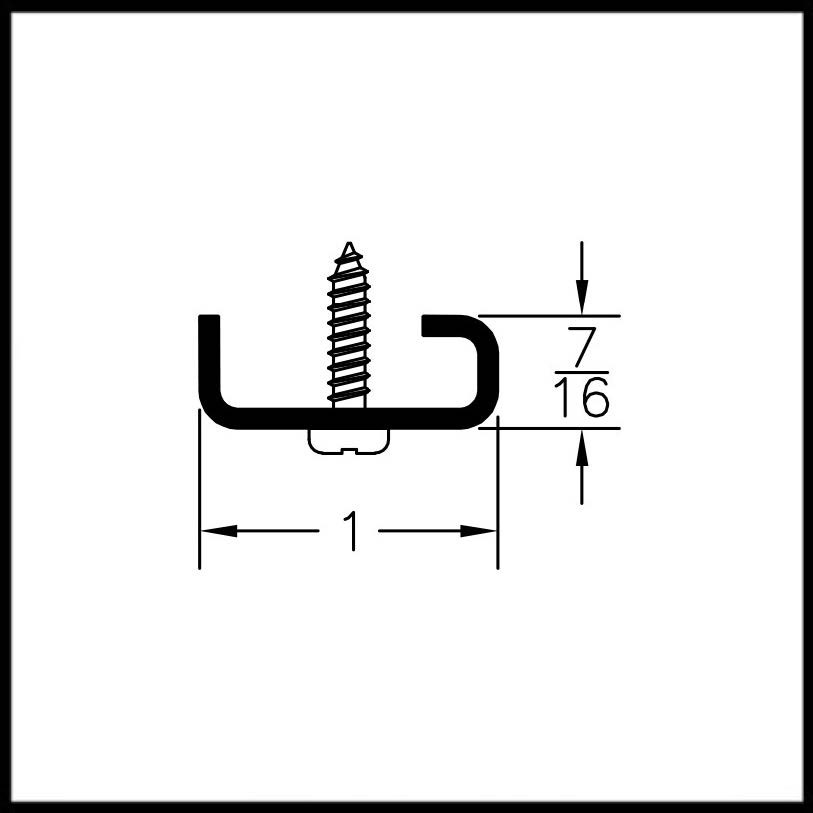

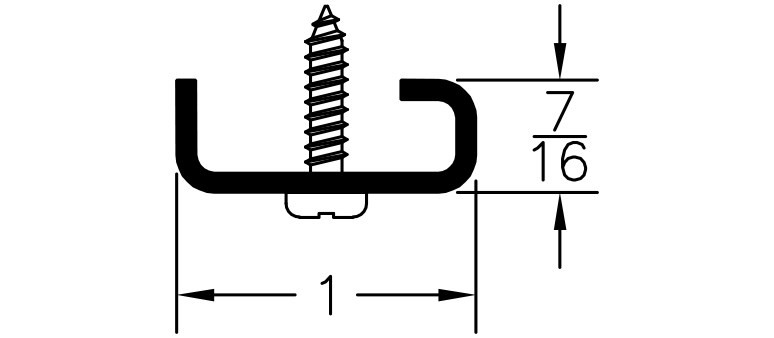

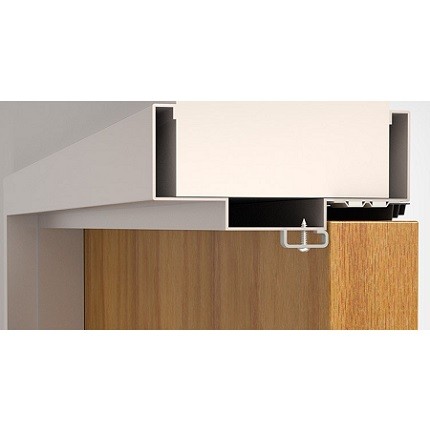

    XP900SP Stop Extender: is required to be used on openings with vertical gaps greater than 1/8” and up to 3/8”. It's made from 16 gauge galvannealed steel and can be furnished with or without holes. If using on a metal frame, it can be welded to frame - specify 'no holes.'

    Usage: It can be used on steel composite, hollow metal doors, wood and plastic-covered composite core doors, with no special preparation needed beforehand.

    Gaps: It's required to be used on openings with vertical gaps greater than 1/8” and up to 3/8”.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

    This product has a 5 year guarantee against defects in material and workmanship.
     Click here to view our Full Warranty Policy.

    For another great Pemko door header, see our Pemko #EGA305XGSS Door Header.

      • SKU
        PKXG90KIT-BK
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • About this Product
      • Door Shoe Retainer Material
        PVC Encased Intumescent with Silicone Seal, 16 Gauge Galvannealed Steel
      • Door Type
        Steel Composite, Metal Door, Wood Covered Composite Core Door, Plastic Covered Composite Core Door
      • Seal Type
        Intumescent with Silicone Seal
    • Dimensions
      • Width
        1", 1-3/4”
      • Door Seal Weight
        Estimated per foot: 0.15 lbs.
      • Total Height
        3/64”, 7/16"
    • Special Features
      • Intumescent / FireStop
        Yes
    • Finishes
      • Finish
        Black, White
    • Compliance Details
      • Compliance Details
        UL Classified, Fire Rated, OSHA Compliant
      • Warranty
        5 Year Limited Warranty

    UL Classified: For use on openings with head and vertical gaps in excess of those outlined in NFPA 80

    Fire Rated: – Tested to UL10B Standard Fire Tests and UL10C Positive Pressure Fire Tests of Door Assemblies for use on doors with clearances in excess of allowable dimension per NFPA 80
