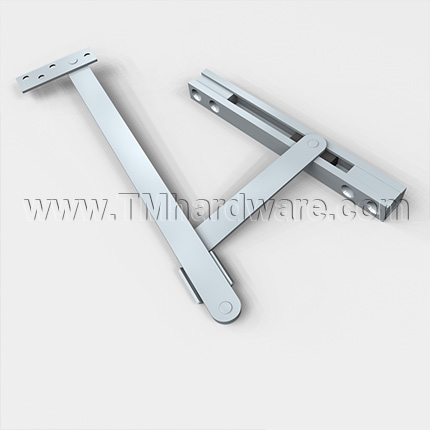

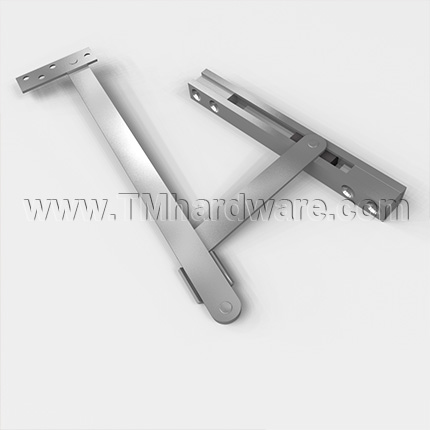

Norton Checkmate 8HD Series, Surface, Extra Heavy Duty, Stop and Holder

Norton Checkmate 8HD Series, Surface, Extra Heavy Duty, Stop And Holder, Hold Open, Aluminum Painted Finish
Norton

Norton's 8HD Series Checkmate, an extra heavy-duty surface stop and holder. It is designed to be used in heavy-weight doors in heavy-traffic situations. Available in different finishes of your choice.

PRICED PER UNIT

See tabs below for additional information
    • SKU
      NR-8-026-689
      • 15% off
      Market price: $600.00 save $88.20
    • Starting price: Price: $511.80 per item


    Norton's 8HD Series Checkmate, an extra heavy-duty surface stop and holder. It is designed to be used in heavy-weight doors in heavy-traffic situations. Available in different finishes of your choice.

    Features:

    • High traffic, heavy abuse applications
    • Heavy duty construction

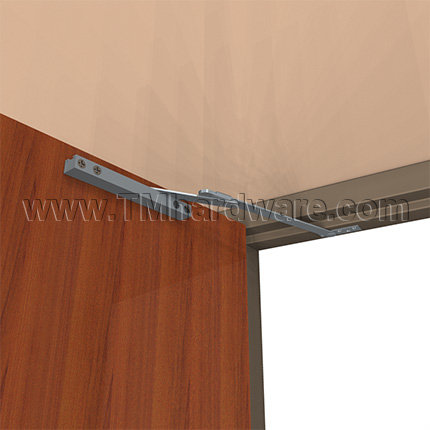

    • Surface mounted
    • Double lever arm
    • For use on interior or exterior, single or double-acting doors
    • Maximum opening is 110 degrees
    • 1-3/4" minimum door thickness
    • Hold open and stop functions
    • Heavy shock absorber spring provides 6 degrees compression before dead stop
    • Hanging means other than standard butts or offset pivots require special templating and pricing; consult factory
    • Complete screw packet with thru-bolts for door, plus wood and machine screws for frame
    • For security areas, Torx® screws are optional

    Benefits:

    • Helps protect door and frame in abusive situations
    • Can be used on doors that do not have surface or floor closers
    • Stop is independent of any door-closing hardware

    Certification:

    • Stop functions UL listed

    PRICED PER UNIT

    This product has a 2-year limited warranty against defects in material and workmanship. Click to view our Full Warranty Policy.

    Click here to view Norton Checkmate 7 Series, Surface, Heavy Duty, Stop and Holder

      • SKU
        NR-8-026-689
    • QuickShip
      No
    • Manufacturer
      Norton
    • Door Opening

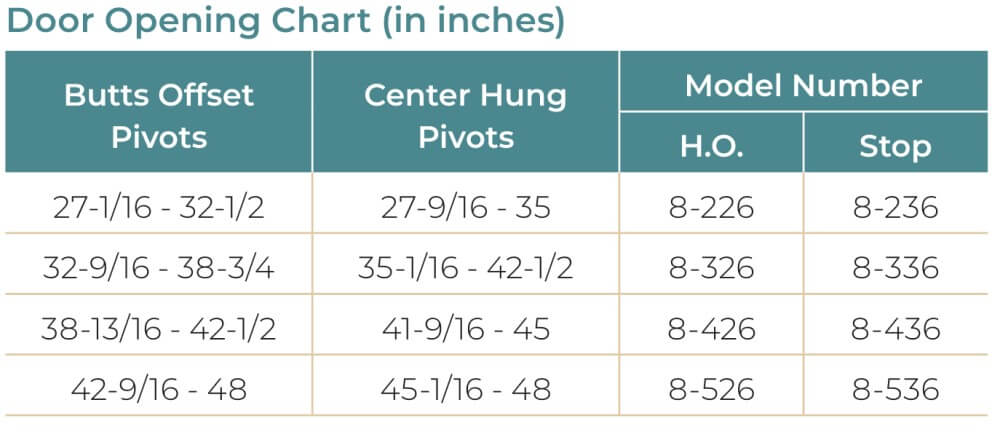

      27 1/16" - 32 1/2" Butts Offset or 27 9/16"-35" Center Hung, 32 9/16" - 38 3/4" Butts Offset or 35 1/16" - 42 1/2" Center Hung, 38 13/16" - 42 1/2" Butts Offset or 41 9/16" - 45" Center Hung, 42 9/16" - 48" Butts Offset or 45 1/16" - 48" Center Hung
    • Description
      • Series
        8HD Series checkmate
      • Handing
        Non Handed
    • Door Description
      • Door Opening Degree
        Up to 110°
    • Features
      • Function
        Hold Open, Stop
    • Finishes
      • Finish
        Aluminum Painted (689), Dark Bronze Painted (690), Dull Bronze Painted (691), Gold Painted (696), Black Suede Powder Coat (BSP), White Suede Powder Coat (WSP), Dark Satin Bronze, Equiv (613e), Satin Stainless Steel (630), Satin Brass (633), Satin Bronze (639), Bright Stainless Steel (629), Flat Black (631), Polished Brass (632)
    • Compliance Details
      • Warranty
        2 Year Limited Warranty
