NGP Garage Flood Shield with Spring Mechanism and Support Post, Openings Sized 51" - 96"

NGP Flood Shield
National Guard Products
Read 1 review

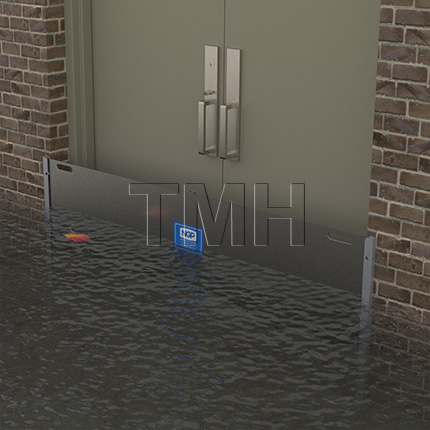

The NGP Garage Door Flood Shield is designed to help protect larger door openings and building contents from flood water. This unique product features a spring mechanism that maintains constant tension against the gasketing to create a solid barrier. It utilizes a center post for additional support. Universal channels are used for inside or outside mount and is custom made to size.

PRICED PER UNIT

Note, additional lead time is required - please allow 4 - 6 weeks for delivery.

See tabs below for additional information
    • SKU
      NGFS10+FSSP|64
      • 24% off
      Market price: $1,012.00 save $237.82
    • Starting price: Price: $774.18 per item


    The NGP Flood Shield is designed to help protect door openings and building contents from flood water. This unique product features a spring mechanism that maintains constant tension against the gasketing to create a solid barrier.

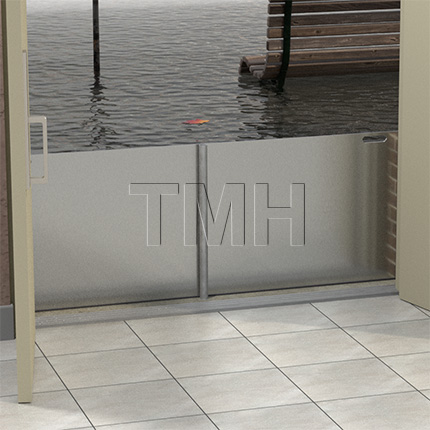

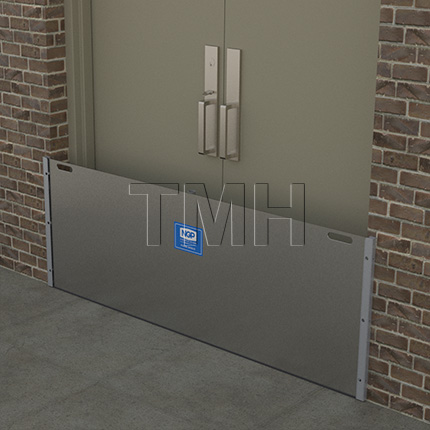

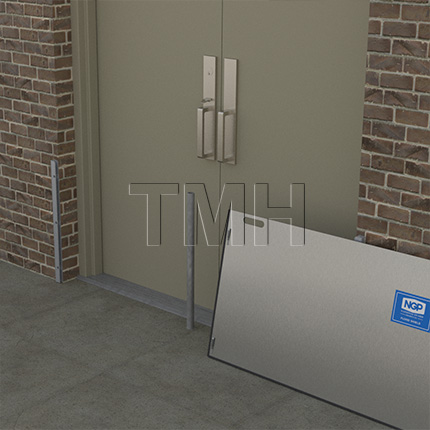

    How it Works: Mounting channels are installed along the door or window opening. When the flood barrier is needed, simply slide the barrier into the channels, the heavy duty springs provide constant tension and hold the barrier in place, ensuring a reliable seal. The support post is installed directly behind the barrier to provide additional support.

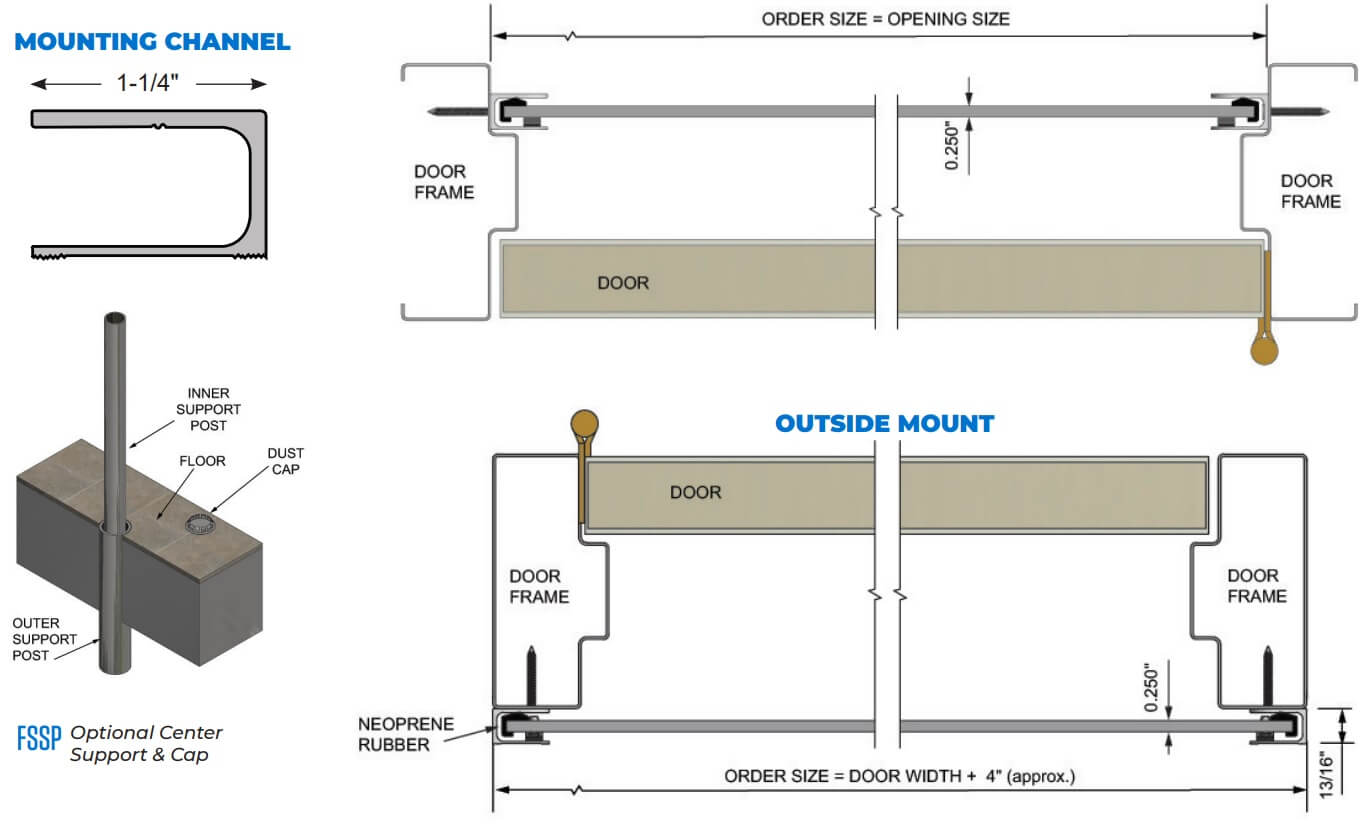

    How to Measure:

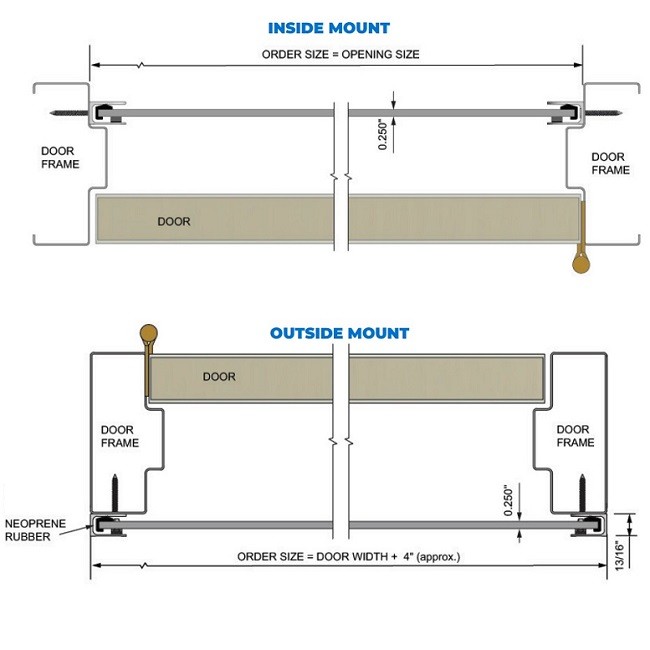

    • For an inside mount - measure the distance between the two walls / door frame where they will be installed.
    • For an outside mount - measure the distance between the two locations where the mounting channels will be installed.
    • Note, the Flood Barrier full system will be sized according to your width requested, thus the barrier portion will be approximately 1/2" less than the requested size, to compensate for the channels and neoprene rubber.

    Dimensions:

    • Channels: 1-1/4" Width x .75" Depth
    • Barrier Thickness: 1/4" Thick
    • Barrier Height and Length: Select from options above.
    • Note, due to the handle cutouts, the actual flood protection will be 2" less than the barrier height. Ex: a 12" barrier provides 10" flood protection.

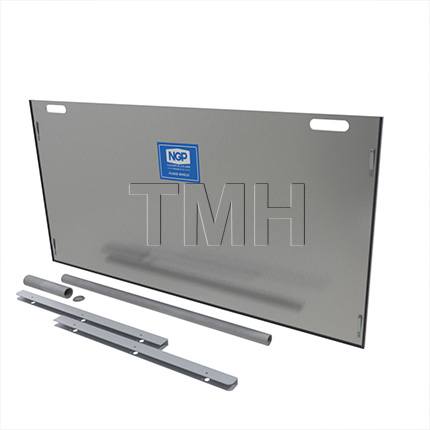

    Materials:

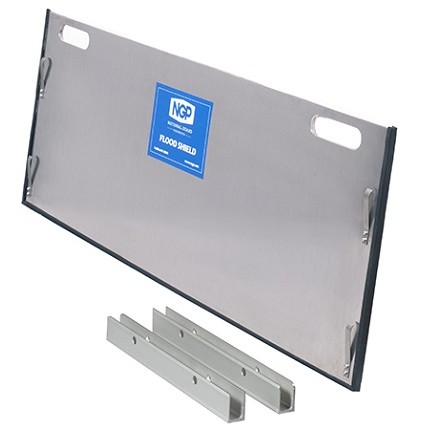

    • Barrier Panel - 1/4" Marine grade aluminum with handle cutouts
    • Seal - Closed cell neoprene rubber gaskets installed on bottom and sides of panel
    • Channels - Anodized aluminum mounting channels
    • Compression Springs - Stainless steel for ensured durability

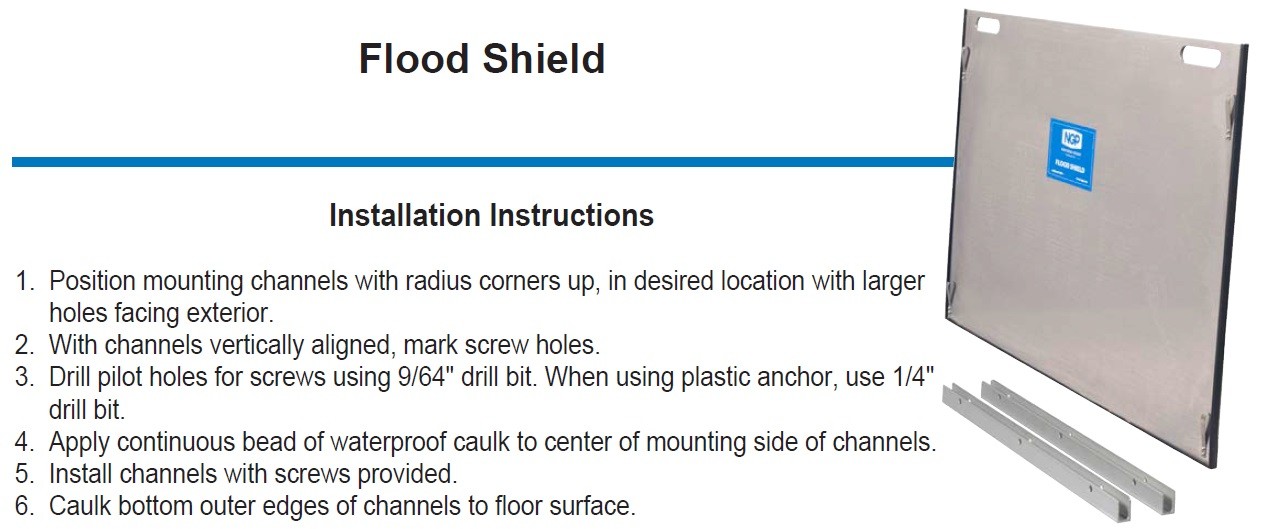

    Installation:

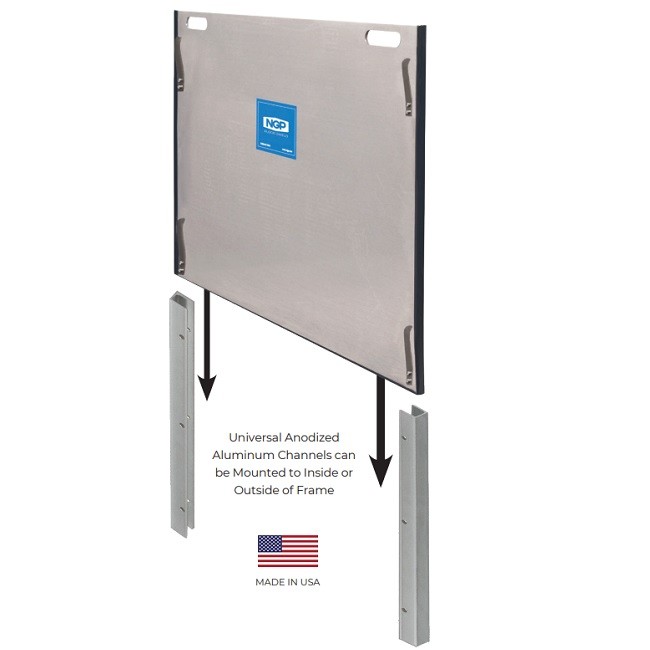

    • Universal channels are used for inside or outside mounting
    • Fasteners: Provided with #10 x 1-1/2" stainless steel sheet metal screws
    • Floor Surface Requirements: If being installed onto a smooth, straight surface, no additional threshold is necessary.

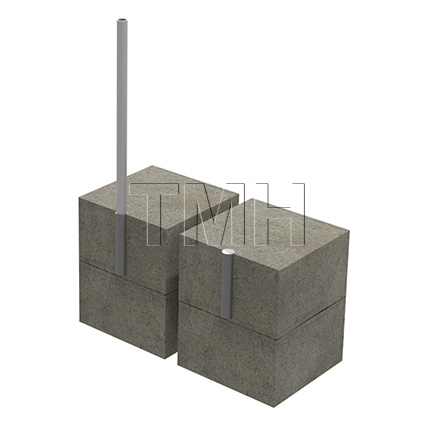

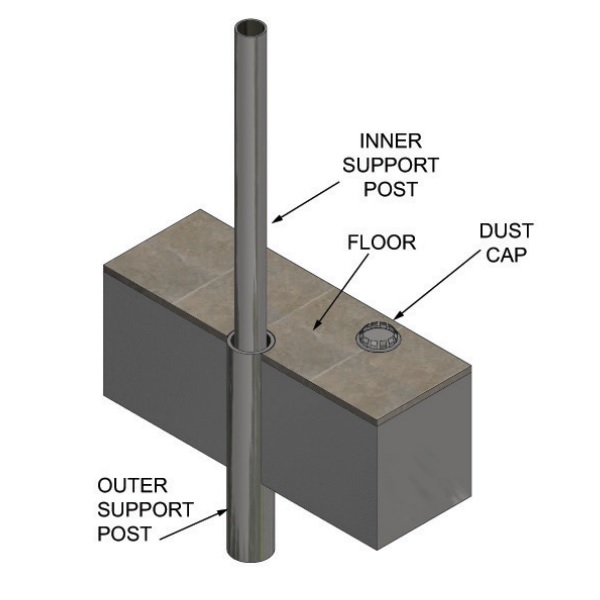

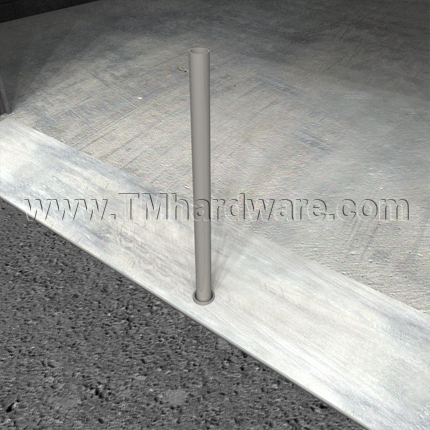

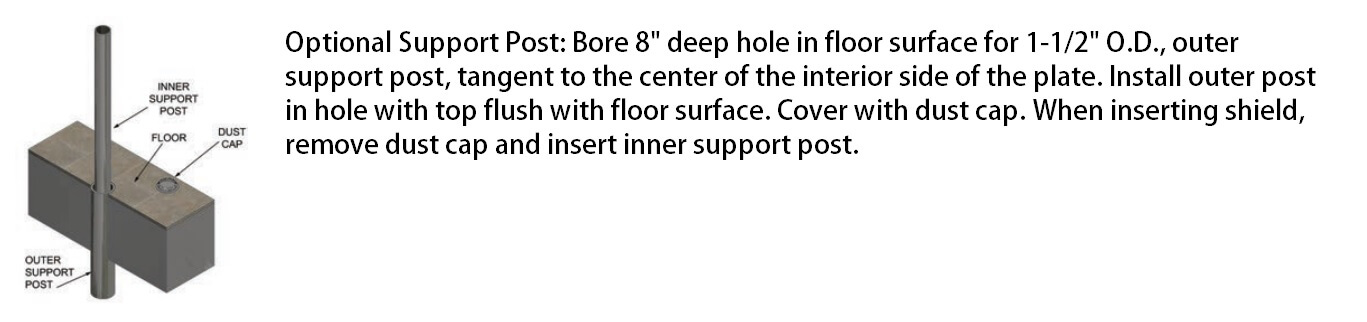

    • Support Post - the outer support post is inserted into the ground, directly behind the Flood Barrier.
    • We recommend using a waterproof silicone sealent like the TruSil 100 to seal the edges of the channels and when installing.

    Compliance: Complies with guidelines of the Federal Emergency Management Agency (FEMA) and Federal Insurance and Mitigation Administration (FIMA) for use on doors in flood prone areas

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size many be enlarged to show detail. See product specs for exact measurements.

    This product has a 3 year guarantee against defects in material and workmanship.
     Click here to view our full Warranty Policy.

    For smaller door openings, see our NGP Flood Shield up to 50"

      • SKU
        NGFS10+FSSP|64
    • Series
      NGP Flood Shield
    • Mounting Type
      Universal Mount
    • Adjustable
      No
    • Height
      12" Height, 24" Height, 36" Height
    • QuickShip
      No
    • Manufacturer
      National Guard Products
    • Compliance Details
      • Warranty
        3 Year Limited Warranty

     PLEASE NOTE: Note, Additional lead time is required,
    Please allow 5 - 6 weeks for delivery.


    SHIPPING / PROCESSING TIME:

    This product ships directly from the manufacturer.
    Please allow 2 - 3 weeks to ship

    Exception: Bronze Anodized products require 4 - 5 weeks to ship
    • Domestic Shipping Fees- (Hawaii and Alaska not Included):
      • FREE SHIPPING on orders over $300.00 (excludes oversized and freight orders).
      • There will be a flat $19.99 shipping and handling fee on orders under $300.00.
      • Oversize: Orders containing items sized 50" - 95" have an oversize surcharge of $49.99.
      • Freight Items: Orders containing items sized 96" - 108" have an oversize surcharge of $199.99.
      • Oversize Freight Items: Orders containing items sized 109" and above have an oversize surcharge of $299.99.
      • Orders totals above $2,000.00 will ship free, regardless of size.

    • Alaska and Hawaii, Canada, and International Shipping:
    • Returns:
      • This product is custom made and is not returnable.
      • We are committed to your satisfaction, as a courtesy, we may, at our discretion accept returns with a minimum 30% restock fee.
      • CLAIMS FOR SHORTAGE OR DAMAGE IN TRANSIT: All claims must be made within Seven (7) days of receipt of goods.
      • Weatherstripping products will not be considered for returns.
      • Item must be in new, resalable condition.
      • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
      • Return shipping is customer's responsibility. A return address will be provided with RMA#.
      • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
