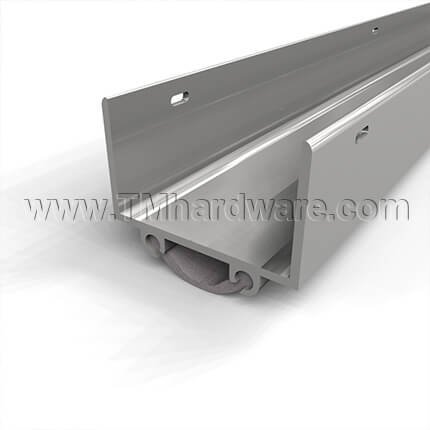

NGP 6V Door Shoe Sweep, U Shaped Aluminum Casing with .5" Vinyl Seal

NGP 6V Door Shoe is ideal for protecting the bottom of doors while sealing the gap up to .5". It is compatible with doors of 1.75" thickness. Comes with a Vinyl seal. Available in two aluminum finishes and length is custom cut to size.

PRICED PER FOOT- See full product details and specs in the tabs below.

See tabs below for additional information

Finish
Length

Quantity

Add to compare

NGP 6V Door Shoe is ideal for protecting the bottom of doors while sealing the gap up to .5". It is compatible with doors of 1.75" thickness.

Seals: Contains a .5" Gray Vinyl Seal. Oxidative degradation from age and exposure to cold, heat and UV causes hardening, loss of memory and resilience, cracking, crazing and discoloration.

Installation: Drilled for easy installation and supplied with #6 x 3/4" stainless steel SMS. Installation guide provided.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

For additional Door Shoes see our NGP 99N Door Shoe Sweep, U Shaped Aluminum with 2.75" Kickplate and .75" Neoprene Seal

- SKU
  NG6VA
QuickShip
No
Manufacturer
National Guard Products
MPN
N6V
About this Product
- Door Shoe Retainer Material
  Aluminum
- Temperature Range
  0°F thru 140°F
- Door Type
  Wooden Door, Metal Door
- Seal Type
  Vinyl Rubber Seal
- Mounting
  Door Shoe Mount

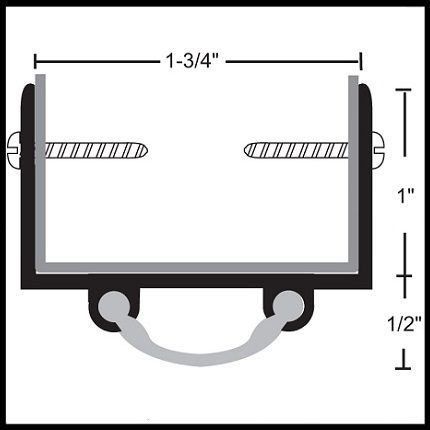

Dimensions
- Seal Height
  1/2" Height
- Total Height
  1-1/2" Height
- Length
  Custom Cut to Size
- Door Thickness
  1-3/4" Thick
Installation
- Drill Holes
  Drill holes are provided
- Installation Screws
  #6 x 3/4" stainless steel SMS
Finishes

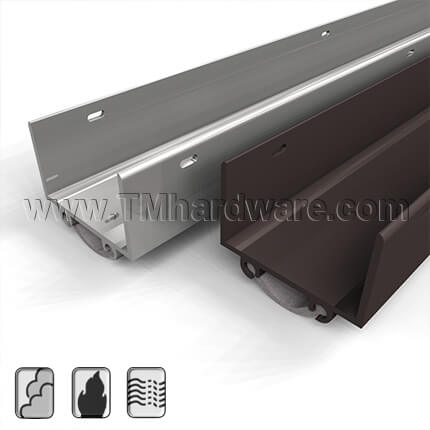

- Finish
  Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313)
Compliance Details
- Compliance Details
  UL Classified, Smoke Rated, Air Infiltration Rated
- Warranty
  3 Year Limited Warranty

Click to Print

Click to Print Installation Guide

Anodized Aluminum complies with ANSI/BHMA US28 / 628
