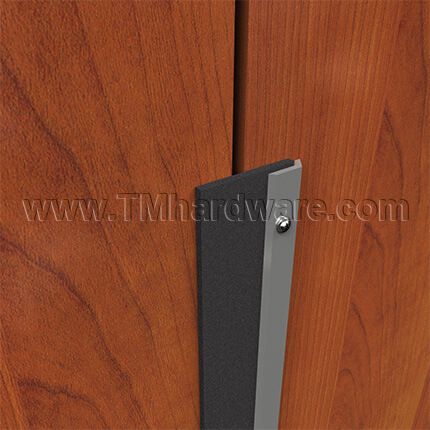

NGP 114N Meeting Stile, .625" Aluminum Overlapping Casing with .9375" Neoprene Seal

NGP 114N overlapping meeting stile is designed to be surface mounted to the face of a door to seal a gap between a pair of doors. This astragal is designed for Single Active Doors in a Double Door Set. Comes with a .625" Aluminum casing and .9375" Neoprene Seal. Available in various anodized finishes and length is custom cut to size.

PRICED PER FOOT - See full product details and specs in the tabs below.

See tabs below for additional information

Finish
Length

Quantity

Add to compare

Seals: Contains a Black .9375" Neoprene Seal. It has very good abrasion resistance, tensile strength and memory.

Installation: Installation guide provided. Drilled for easy installation and supplied with #6 x 3/4" stainless steel SMS.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

This product has a 3 year guarantee against defects in material and workmanship.
Click here to view our Full Warranty Policy.

For additional Meeting Stiles see our NGP 114S Meeting Stile, .625" Aluminum Casing with .9375" Silicone Seal

- SKU
  NG114NA
QuickShip
No
Manufacturer
National Guard Products
MPN
114N
About This Product
- Retainer Material
  Aluminum
- Seal Type
  Neoprene
- Door Type
  Single active door in a double door set
- Mounting
  Surface Mounted
- Temperature Range
  -20°F thru 200°F
Dimensions
- Seal Height
  5/8"
- Total Height
  1-9/16"
- Width
  3/16"
- Size (Feet)
  Custom Cut to Size
Installation
- Installation Screws
  #6 x 3/4" stainless steel SMS screws provided
Finishes
- Finish
  Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313)
Compliance Details
- Compliance Details
  Air Infiltration Rated, BHMA Certified
- ANSI Designation
  R3C635
- Warranty
  3 Year Limited Warranty

Click to Print

Click to Print Installation Guide

Anodized Aluminum complies with ANSI/BHMA US28 / 628
