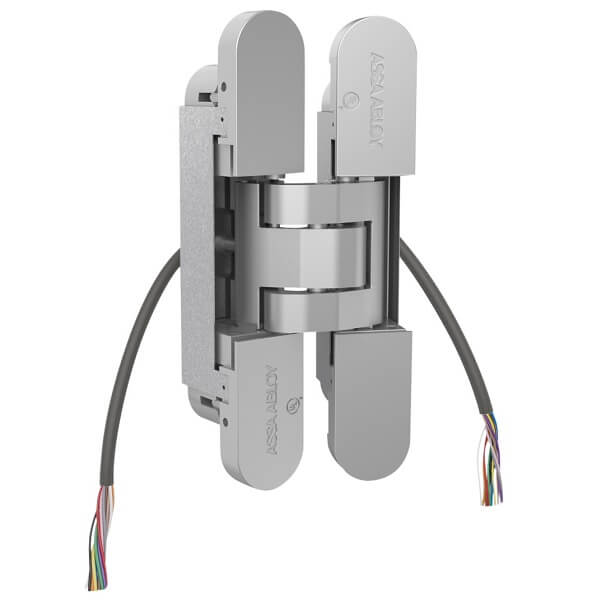

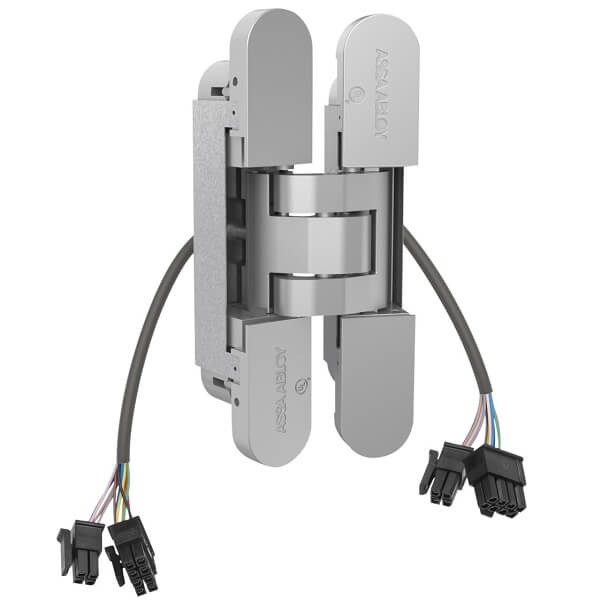

The MK100ME electrified concealed hinge is available with either a 12-wire Concealed Circuit Configuration (CC12) or a 12-wire ElectroLynx® configuration (QC12). It's used on wood or hollow metal doors with a 1-3/8" minimum thickness, are non-handed, and include snap-on covers.
PRICED PER HINGE

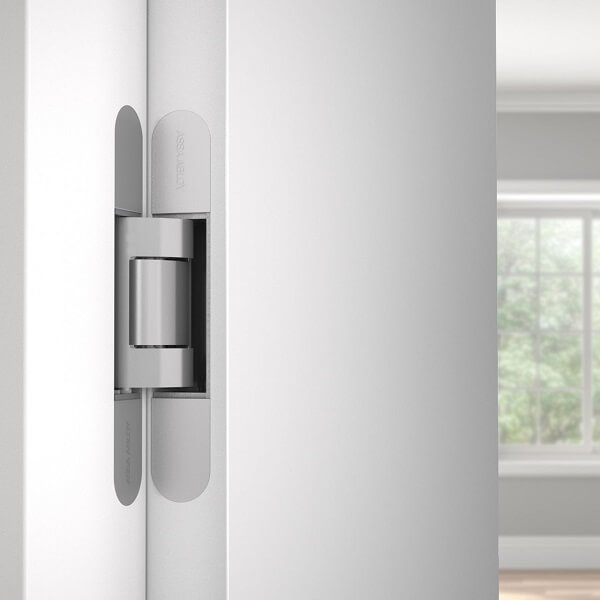

Refined and minimal, the McKinney MK100 Concealed Hinges feature 3-Dimension adjustability for easy installation and door alteration.
These electrified options allow for a constant flow of current from a power source through the hinge to electrified door hardware, including locks, strikes, and exit devices. Wiring is not visible, which eliminates tampering and enhances the aesthetics of the door opening.
The snap-on covers conceal screws for a clean aesthetic.
Hinge Capacity:
Benefits:
Dimensions:
PRICED PER HINGE
Can be purchased as standard hinge, see our McKinney MK100 Concealed Hinge for Heavy Hidden Doors.
The product has worked out perfectly! Had a minor issue with some missing face plates, and customer service got me fixed up right away! Thanks guys, we will definitely purchase from you again in the future!
Merchant Response
Thank you, we appreciate the feedback and the business!
