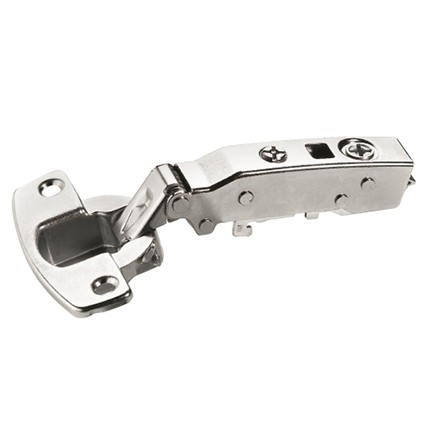

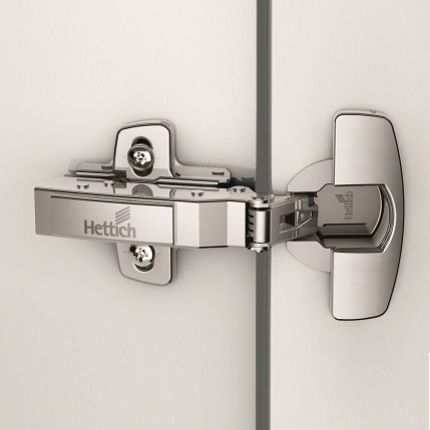

Hettich Sensys 8645i Series, Soft Closing Cabinet Hinge, Full Overlay, 110° Opening, QUICK SHIP

Sensys 86451 cabinet hinge
Hettich
Read 2 reviews

Sensys 8645i Series is a Soft Close Integrated Cabinet Hinge for Full Overlay Application, 110° Opening Angle. Compatible with TB 52 Drilling Pattern, with screw on application. See below for additional details.

PRICED PER PIECE

Mounting Plate is required, not included. For compatible mounting plate, see our Hettich #9071655  Mounting Plate.

Buy more for less:
1-49 items $5.64 / each
50 or more items $5.08 / each save 10%
See tabs below for additional information
    • SKU
      HT9071223
      • 10% off
      Market price: $5.64 save $0.56
    • Starting price: Price: $5.08 per item
    Out of stock

    Click to view the full Hettich Sensys Catalog.

    Hettich Sensys 8645i Soft Closing Hinge Key Features:

    • Opening Angle: Opens up to 110° angle.
    • Integrated Silent System, with self closing feature
    • Quality Classification: EN 15570, Level 3
    • Steel nickel plated
    • Cover Plate NOT Included

    Installation:

    • Door Thickness: 15 - 24 mm
    • Mounting Type: Full Overlay

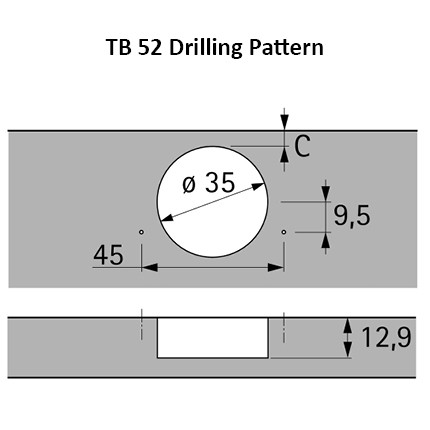

    • Drilling pattern TB 52: 45 x 9,5 mm, see specs
    • Cup depth 12.8 mm
    • Screw on installation, screws not included
    • Integrated overlay adjustment +2 mm / -2 mm
    • Integrated depth adjustment +3 mm / -2 mm
    • Height adjustment at mounting plate

    Mounting Plate:

    Benefits:

    • The Silent System is designed for perfect operation across an exceptionally wide temperature range from +5°C to +40°C.
    • On large cabinet doors, the best in class performance you get with Sensys pays particular dividends: compared to other hinges, you often need one or two Sensys hinges less to obtain constant Silent System excellence.
    • The Sensys hinge's Silent System always closes any door gently and reliably. Whether small or light, large or heavy. The exceptionally wide automatic closing angle of 35° effortlessly slows down heavy
       doors even when closed with a hard push.
    • The fast release button is elegantly concealed by the hinge arm. This reliably prevents the door from being released unintentionally.
    • Tool-less clip on assembly means hinge and mounting plate can be put together in almost record breaking time. Direct adjustment of gap alignment also saves a lot of time.

    PRICED PER PIECE

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product has a 1 year warranty against defects in material and workmanship
     Click to see our Full Warranty Policy.

      • SKU
        HT9071223
    • QuickShip
      Yes
    • Manufacturer
      Hettich
    • MPN
      9071223; 9071224; 9071225; 9071226; 9071227; 9071228; 9071238; 9071239; 9071240




    SHIPPING / PROCESSING TIME:

    This product is part of our QuickShip line and will ship within 1 business day

    If out of stock, shipping may take up to 2 weeks, call to confirm stock.
    • Domestic Shipping Fees- (Hawaii and Alaska not Included):
      • FREE SHIPPING on orders over $300.00 (excludes oversized and freight orders).
      • There will be a flat $19.99 shipping and handling fee on orders under $300.00.
      • Oversize: Orders containing items sized 50" - 95" have an oversize surcharge of $49.99.
      • Freight Items: Orders containing items sized 96" - 108" have an oversize surcharge of $199.99.
      • Oversize Freight Items: Orders containing items sized 109" and above have an oversize surcharge of $299.99.
      • Orders totals above $2,000 will ship free, regardless of size.

    • Alaska and Hawaii, Canada, and International Shipping:
    • Returns:
      • This products can be returned up to 30 days from date of purchase.
      • Custom cut item are not returnable
      • Item must be in new, resalable condition. No restock fee will be applied.
      • CLAIMS FOR SHORTAGE OR DAMAGE IN TRANSIT: All claims must be made within Seven (7) days of receipt of goods.
      • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
      • Return shipping is customer's responsibility. A return address will be provided with RMA#.
      • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
