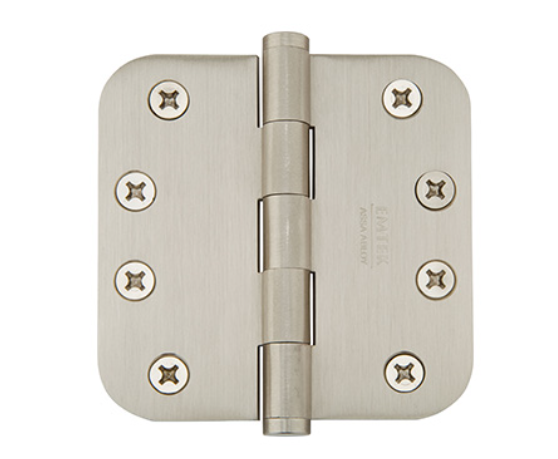

Emtek 96234 Brass Heavy Duty, Plain Bearing, 4" x 4", 5/8" Radius Hinge - PAIRS

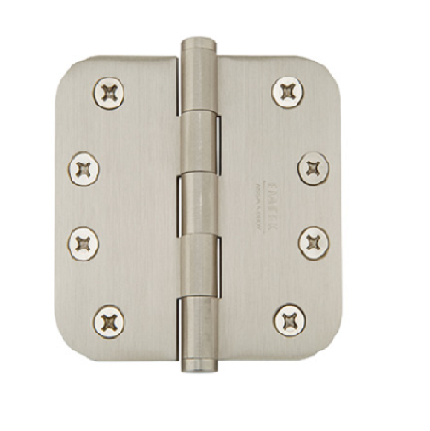

Emtek Finish Sample - Satin Nickel US15
Emtek
Read 1 review

Emtek #96234 Heavy Duty, Solid Brass, Plain Bearing Hinges will complement your door and ensure a matching finish to other Emtek Hardware. Hinges are sized 4" x 4", with a 5/8" radius corners and are available in selection of finishes.

PRICED PER PAIR

Buy more for less:
1-23 items $62.44 / each
24 or more items $59.32 / each save 5%
See tabs below for additional information
    • SKU
      EM96234-US15
      • 20% off
      Market price: $78.05 save $15.61
    • Starting price: Price: $62.44 per set


    Emtek #96234 Heavy Duty, Solid Brass, Plain Bearing Hinges will complement your door and ensure a matching finish to other Emtek Hardware.

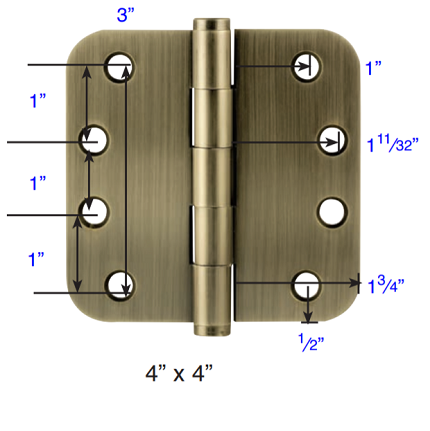

    • Dimensions: 4" x 4"
    • Thickness: 0.132"
    • Fasteners: #12 x 1 1/4" Wooden Screws provided
    • Material: Solid Brass
    • Screw Holes: 8
    • Priced and Sold in Pairs
    • See specification tabs for additional information

    About Heavy Duty Plain Bearing Hinges: Plain bearing hinges feature knuckles that move against each other without additional bearings. The Heavy Duty hinges have a thicker leaf than standard residential plain bearing hinges, they are designed for heavier residential use / light commercial use and not recommended for heavy traffic entryways. For heavy traffic, consider a Ball Bearing Hinge.

    About the Material: Solid Brass is made of copper and zinc and is popular due to its aesthetics, resilience and durability. It is highly resistant to rusting and is available in a large variety of finishes. However it is significantly more expensive than its steel and stainless steel counterparts.

    Installation: This hinge is fully mortised. Three hinges should be used on doors up to 90". Add one additional hinge per each additional 30" of door height.

    Corners: This hinge is designed with a 5/8" radius corner, also popular for fully mortised hinges are square corners and 1/4" radius hinges.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail.

    This product has a 5 year warranty on material and workmanship.
    Click here to view our Full Warranty Policy.

    See also our Emtek 96213 3.5" x 3.5" Heavy Duty Plain Bearing Hinge with Squared Corners.

      • SKU
        EM96234-US15
    • QuickShip
      No
    • Manufacturer
      Emtek
    • MPN
      96234
    • Product Design
      • Hinge Category
        Full Mortised Hinge
      • Base Material
        Brass
      • Usage Level
        Standard Duty
      • Throw
        Standard Throw
      • Bearing Type
        Plain Bearing
      • Knuckles
        5 Knuckle Hinge
      • Pin Type
        Removeable Pin
      • Hinge Tip Type
        Button Tip
      • Hinge Corner
        5/8" Radius Corner
      • Hole Pattern
        Commercial "C" Pattern
      • Number of Holes
        8 Holes
    • Dimensions
      • Hinge Size
        4" x 4"
      • Hinge Thickness
        0.132" Thick
    • Installation
      • Door Type
        Wooden Door
      • Installation Screws
        #12 x 1 1/4” Provided
    • Finishes
      • Finish
        Polished Brass (US3), Satin Brass (US4), French Antique (US7), Oil Rubbed Bronze (US10B), Polished Nickel (US14), Satin Nickel (US15), Pewter (US15A), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL)
    • Compliance Details
      • Warranty
        5 Year Limited Warranty




    SHIPPING / PROCESSING TIME:

    Please allow 1 - 3 weeks to ship
    Expedited shipping is available, please contact us for assistance.
    • Domestic Shipping Fees- (Hawaii and Alaska not Included):
      • FREE SHIPPING on orders over $300.00 (excludes oversized and freight orders).
      • There will be a flat $19.99 shipping and handling fee on orders under $300.00.
      • Oversize: Orders containing items sized 50" - 95" have an oversize surcharge of $49.99.
      • Freight Items: Orders containing items sized 96" - 108" have an oversize surcharge of $199.99.
      • Oversize Freight Items: Orders containing items sized 109" and above have an oversize surcharge of $299.99.
      • Orders above $2,000 will ship free, regardless of size.
    • Alaska and Hawaii, Canada, and International Shipping:
    • Returns:
      • Products can be returned up to 120 days from date of purchase.
      • Item must be in new, re-saleable condition. A 25% restock fee will be applied.
      • CLAIMS FOR SHORTAGE OR DAMAGE IN TRANSIT: All claims must be made within Seven (7) days of receipt of goods.
      • Please call or email us to receive an RMA number before returning. No returns will be processed without an RMA number.
      • Return shipping is customer's responsibility. A return address will be provided with RMA#.
      • If you are shipping via USPS (not recommended) do NOT require signature as we will not be able to pick up your package from local post office facility.
    4.0
    1 Review

    Ratings Distribution

    5 Stars 0 0
    4 Stars 100 1
    3 Stars 0 0
    2 Stars 0 0
    1 Star 0 0

    Reviewed by 1 customer

    4

    Good heavy duty hinges for heavy doors.

    Comments about Emtek 96234 Brass Heavy Duty, Plain Bearing, 4" x 4", 5/8" Radius Hinge - PAIRS

    After wasting money on other hinges these turned out to be heavy duty enough to bring my exterior door back into square and plumb. I did have to router the frame and door because these hinges are thicker than the original (and first replacement) hinges but it was well worth the effort. I don't see these hinges bending and allowing the door to sag again.

    By Scott
    Verified Buyer
