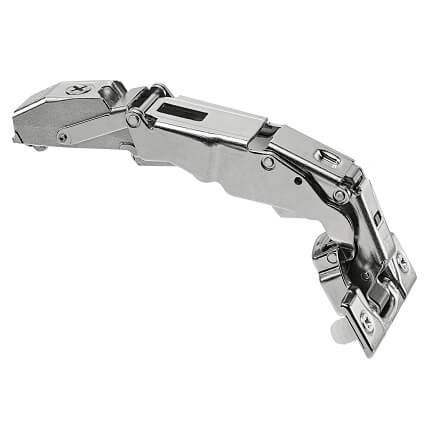

Blum Cabinet Hinge 71B7580, CLIP Top BLUMOTION, 155° Opening, Press-In Installation - Quick Ship

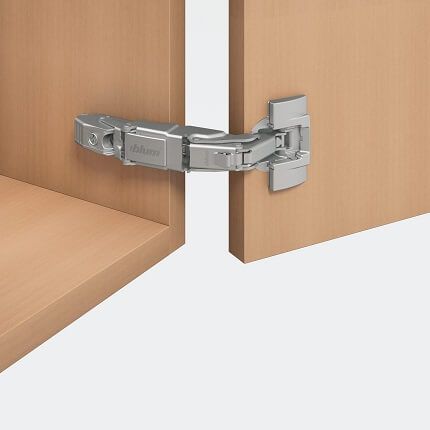

This model is a zero protrusion cabinet hinge that allows for a 155° door opening angle. The hinge is compatible with all current mounting plates (not included) and features press-in installation. Engineered with CLIP technology, cabinet doors with CLIP top hinges can be attached and removed quickly without tools. With the BLUMOTION function built into the hinge cup, the cabinet door closes softly and quietly regardless of its size, weight or the force with which it was closed. The hinge has a full overlay cabinet application and a straight arm configuration.

Ships within 1 business day!

PRICED PER PIECE

See tabs below for additional information

This cabinet hinge combines soft close BLUMOTION with Blum's innovative CLIP technology, making it a perfect blend of function and form in a small package.

Material:

Cup: steel
Arm: zinc

Finish: Nickel plated

Cup Depth: 15/32" (11.7 mm)

Cup Diameter: 1-3/8" (35 mm)

Holes Diameter: 5/16" (8 mm)

Boring Distance Range: 1/8" - 5/16" (3 mm - 8 mm)

Door Type: For cabinet doors up to 15/16" (24 mm) thick

Opening Angle: 155° door opening angle

Closing Mechanism: with spring

Features:

For wide angle applications
Zero protrusion - suitable for cabinets with interior roll outs
For face frame and panel cabinetry
Three dimensional adjustment - The side, height and depth can be adjusted with a spiral screw. See video above for details.
Overload safety feature
Self closing
BLUMOTION - The BLUMOTION soft close mechanism is integrated into the hinge cup and provides quality of motion that you have come to expect from Blum Hardware. This feature allows the cabinet door to close softly and quietly regardless of its size, weight or the force with which is was closed. The BLUMOTION function can easily be deactivated on one of the hinges, giving small or light doors the same high quality of motion. To adjust hinges see our BLUMOTION Adjustment Details, or view video clip above.

Please note, CLIP top BLUMOTION is designed to be used at temperatures between 65° and 85° F. Lower or higher temperatures will not cause damage to the hinge, however they will affect the closing speed. Once the temperature returns to the suggested range the hinge will return to its optimal closing action.

Cabinet Application: Full overlay

Straight arm configuration
Hinge arm height: 2-7/16" (62 mm)

Installation: Press-in. Press-in hinges must be inserted with knock-in tools or universal insertion rams.

For details on amount of hinges required per door and proper hinge placement, see our Blum Reference Chart.

Mounting Plates: CLIP top hinges are compatible with all current mounting plates. Please note, Mounting Plates are not included in this product and can be ordered separately through our site.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

This product has a lifetime warranty against defects in materials and workmanship.
Click here to view our Full Warranty Policy.

Click here to view our Blum Cabinet Hinge 71T9580, CLIP Top, 95° Opening.

- Weight
  0.5 lbs
- SKU
  BL71B7580
Mounting Method
Press-In
Cabinet Type
Frameless
Degree of Opening
155°
Overlay Type
Full Overlay
Cup Mount
Push In
Cup Diameter
35mm
Cup Depth:
11.5mm
Closing Method
BLUMOTION
QuickShip
Yes
Manufacturer
Blum
MPN
71B7580
Finishes
- Finish
  Nickel Plated
Compliance Details
- Warranty
  Lifetime Limited Warranty

5.0

1 Review

Ratings Distribution

5 Stars 100 1

4 Stars 0 0

3 Stars 0 0

2 Stars 0 0

1 Star 0 0

Reviewed by 1 customer

I would recommend above all others

Comments about Blum Cabinet Hinge 71B7580, CLIP Top BLUMOTION, 155° Opening, Press-In Installation - Quick Ship

The hinge is the most durable for the kitchen cabinets which gets a lot of use everyday.

By Sindee

Verified Buyer

Click to Print

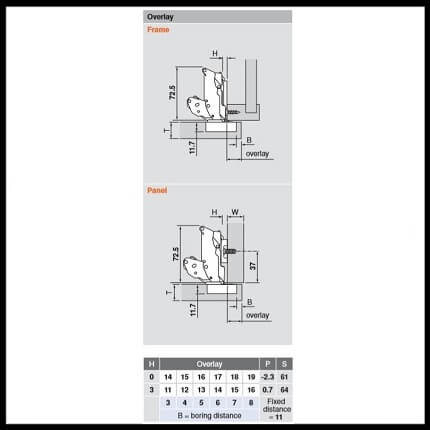

B71B7580 Product Specs:

Click to Print

B71B7580 Installation Guide:

Additional options are available, please contact us for details and pricing.

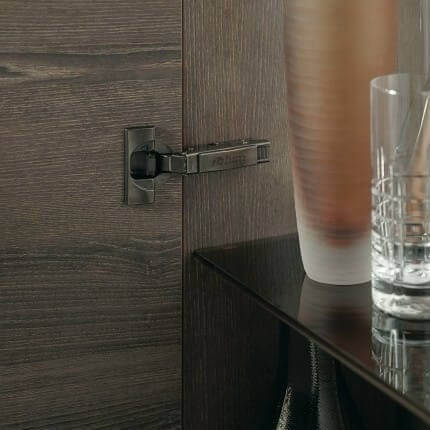

Onyx black finish
TIP-ON - mechanical opening support system for handless cabinets where doors are opened easily with a light touch
110° angle restriction clip - reduces the opening angle from 155° to 110° and can be installed quickly and easily.

Additional accessories are recommended, please contact us for details and pricing.

Hinge arm cover cap - available with or without Blum logo
Hinge cup cover cap - available in nickel plated and onyx black
Hinge cup spacer - 1/16" (1.5 mm) spacer for use under the hinge cup
3 mm spacer - reduces the overlay by 1/8" (3 mm)
Assembly devices - knock in tool and universal insertion ram
