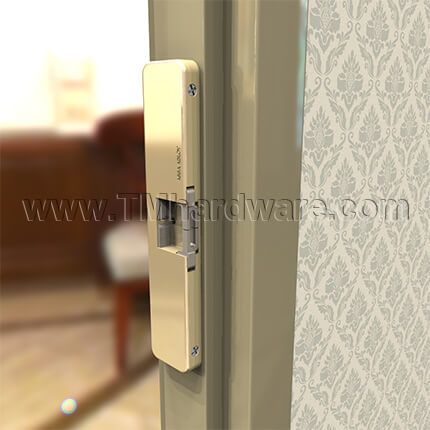

Adams Rite Electric Strike 7800, Surface Mounted, For Adams Rite Rim Exit Devices with Starwheel / Interlocking Latchbolts

This model is a surface mounted electric strike for Adams Rite rim exit devices with starwheel / interlocking latchbolts. The strike is designed for use on narrow stile aluminum, hollow metal and wood door jambs. The 7800 strike features an ultra compact design and adjustable keepers. Available in a choice of finish options, choose from the dropdown below.

See full product details and specs in the tabs below.

PRICED PER PIECE

See tabs below for additional information

Quantity

Add to compare

Adams Rite offers a wide range of electric strikes compatible with many locks in different applications. This surface mounted electric strike is for rim exit devices with starwheel / interlocking latchbolts, and is designed for use in narrow stile aluminum, hollow metal and wood applications.

Product note: This product is also available as HES 9800 Electric Strike from ASSA ABLOY Electronic Security Hardware.

Included Parts:

Electric strike body with attached faceplate
1/16" and 1/8" spacer plates - to accommodate varying door gaps
- Units ordered in 613E, 628E, 630 & BSP finishes will be made of stainless steel to match. All other finishes will receive black stainless steel spacers. Additional spacer plates can be ordered separately.
Mounting screws (screws for wood applications not provided)

Strike Opening: Stainless steel bolt retaining keeper

Voltage: Field selectable to match power source of 12 and 24 VDC

Operating Mode:

Fail secure: Unlocks when energized; in the event of a power failure the strike remains in a locked condition.
Fail safe: Locks when energized; in the event of a power failure the strike remains in an unlocked condition.

Please note, fail secure and fail safe are field selectable at time of installation, see Fail Secure / Fail Safe Manual for instructions.

Features:

Non-handed, low-profile, surface mounted electric strike.
Ultra-compact design and adjustable stainless steel keepers.
Provides cost effective retrofit solution without modifying the door.
No need for wire transfers, door modification or dedicated power supply.
Unique interlocking solution provides solid security and prevents jamb spreading.
The added strength of the interlock makes this ideal for perimeter security applications.

Lock Compatibility: 7800 Electric Strike is the only compatible electric strike on the market that accommodates 8700, 8800, and EX88 Series Rim Exit Devices with starwheel / interlocking latchbolts.

Operation: Electrical actuation unlocks the keeper and releases the latchbolt so the door may be opened without operating the latch itself. Electric strikes are used in conjunction with mechanical locksets and a card reader, keypad or button to provide electrical control of remote operation.

Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

This product has a 5 year warranty against defects in materials and workmanship.
Click here to view our Full Warranty Policy.

Click here to view our Adams Rite Electric Strike 74R2, UltraLine®, For Rim Exit Devices with 1/2" Pullman Latchbolts

- SKU
  AR7800-630
QuickShip
No
Manufacturer
Adams Rite
MPN
7800
Product Details
- Included Parts
  Strike Body, Faceplate(s), Spacer Plates, Mounting Screws
- Faceplate Type
  Attached
- Compatibility
  Rim Exit Device with Starwheel Latcholt, Rim Exit Device with Interlocking Rim Latcholt
- Voltage
  12 Volts, 24 Volts
- Current and Duty
  DC continuous or intermittent
- Current Draw
  .45A at 12 VDC
  .25A at 24 VDC
- Operating Mode
  Fail Secure (Standard), Fail Safe
- ANSI / BHMA Grade
  Grade 1
Dimensions
- Case Dimensions
  1-3/4" L x 9/16" W x 9" H
- Faceplate Dimensions
  1-3/4" L x 9-1/64" H
- Strike Opening
  1" L x 1/2" W x 1-1/2" H
Installation
- Door Material
  Aluminum, Hollow Metal, Wood
Special Features
- Surface Mounted
  Yes
- Static Strength
  1,500 lbs
- Dynamic Strength
  70 ft lbs
- Cycle Testing
  1 Million
Finishes
- Finish
  Bright Brass (605), Satin Brass (606), Dark Satin Bronze, Equiv (613e), Satin Aluminum, Clear Anodized (628), Bright Stainless Steel (629), Satin Stainless Steel (630), Black Suede Powder Coat
Compliance Details
- Compliance Details
  UL Listed, BHMA Certified
- Warranty
  5 Year Limited Warranty

Click to Print

Certificate of Compliance

UL 1034 burglary-resistant listed and suitable for outdoor use

UL 294 listed

RoHS compliant

ANSI/BHMA A156.31 Grade 1

Custom options are available, please contact us for details and pricing.

Monitoring Kit - indicates when the latchbolt is engaged in the strike jaws and a locked/unlocked solenoid status
PS-1 Power Supply - provides filtered and regulated voltage output to power electric strikes
4603 Rectifier - converts low voltage AC current to DC of same voltage
4605 / 4606 Transformer - converts 120 VAC to 12/24 VAC
Piezo Horn Audible Indicator - provides for audible indication when a DC electric strike is energized
7800-116-XXX 1/16" spacer plate, 7800-108-XXX 1/8" spacer plate
HES 2005M3 Smart Pac III - in-line power controller that is able to receive input voltages from 12 to 32V AC or DC
HES 9000-MTK Metal Template Kit
HES 9000-ASB-XXX Aluminum Spacer Bracket
