Adams Rite Electric Strike 7400 / 7401, UltraLine®, For Adams Rite Deadlatches and Cylindrical Locks, For Aluminum Jambs

Adams Rite 7400 / 7401 Electric Strike
Adams Rite
Read 1 review

This model is an electric strike for Adams Rite Deadlatches and cylindrical locksets with 1/2" - 5/8" latchbolt projection. The strike is designed for use on narrow stile aluminum door jambs. The 7400 series UltraLine® strikes feature an ultra compact design and adjustable keepers that are capable of operating under 25 lbs of door preload. Available in a choice of faceplate shape and finish options, choose from the dropdowns below.

See full product details and specs in the tabs below.

PRICED PER PIECE

See tabs below for additional information
    • SKU
      AR7400-313
      • 58% off
      Market price: $490.00 save $285.25
    • Starting price: Price: $204.75 per item


    Adams Rite offers a wide range of electric strikes compatible with many locks in different applications. This UltraLine® electric strike is for Adams Rite Deadlatches and cylindrical locksets with 1/2" - 5/8" latchbolt projection, and is designed for use in narrow stile aluminum applications.

    Faceplate: This electric strike comes in a choice of two faceplates:

    • 7400: Flat with radius corners
    • 7401: Radius to match nose on inactive leaf in a pair of narrow stile doors

    Please note, the 7401 strike is only available in finishes to match the standard anodized finishes, choose from the dropdown above.

    Strike Opening: Stainless steel bolt retaining keeper

    Strike Lip: Basic strike has lip of proper length for 1-3/4" (44.5 mm) thick door that closes flush with jamb edge. Lip extension kits available separately (for 7400 model only) for door thickness or jamb shape that differ from this standard relationship.

    Voltage: Field selectable to match power source of 12 and 24 VDC. Two plug-in voltage adapters included for 12/24 VDC. Power source of 16 VDC requires a voltage adapter, available separately.

    Operating Mode:

    • Fail secure: Unlocks when energized; in the event of a power failure the strike remains in a locked condition.
    • Fail safe: Locks when energized; in the event of a power failure the strike remains in an unlocked condition.

    Please note, fail secure and fail safe are field selectable at time of installation, see Fail Secure / Fail Safe Manual for instructions.

    Preload: Pressure exerted on a door (by air conditioning systems, warping or misaligned hardware) which can disable common electric strikes, leaving doors unlocked and buildings vulnerable. The Ultraline 7400 series electric strikes are capable of operating electrically under 25 lbs of door preload. Using jaw inserts of various sizes, the ultra compact strikes are adjustable to compensate for door and frame related preload and security problems.

    Lock Compatibility: 4510, 4530, 4700 (discontinued), 4900 Series Deadlatches and 8400 Series Mortise Exit Device, or any cylindrical locksets with 1/2" - 5/8" (12.7 mm - 15.9 mm) latchbolt projection.

    Operation: Electrical actuation unlocks the keeper and releases the latchbolt so the door may be opened without operating the latch itself. Electric strikes are used in conjunction with mechanical locksets and a card reader, keypad or button to provide electrical control of remote operation.

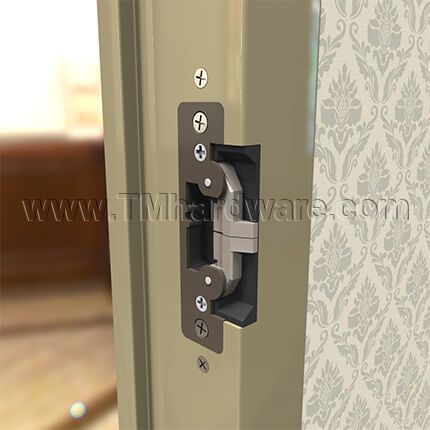

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See Product Specs for exact measurements.

    This product has a 5 year warranty against defects in materials and workmanship.
     Click here to view our Full Warranty Policy.

    Click here to view our Adams Rite Electric Strike 7270, Fire-Rated, For Mortise and Cylindrical Locks, For Hollow Metal Jambs.

      • SKU
        AR7400-313
    • QuickShip
      No
    • Manufacturer
      Adams Rite
    • MPN
      7400; 7401
    • Product Details
      • Included Parts
        Strike Body, Faceplate(s), Mounting Screws, Mounting Tabs, Adhesive Shims, Adjustable Keeper Shim Pack, Plug-in Voltage Adapter
      • Faceplate Type
        Flat, Radius
      • Compatibility
        Deadlatch, Cylindrical Locks
      • Voltage
        12 Volts, 16 Volts, 24 Volts
      • Current and Duty
        DC continuous or intermittent
      • Current Draw
        .44A at 12 VDC
        .46A at 16 VDC
        .23A at 24 VDC
      • Operating Mode
        Fail Secure (Standard), Fail Safe
      • ANSI / BHMA Grade
        Grade 1

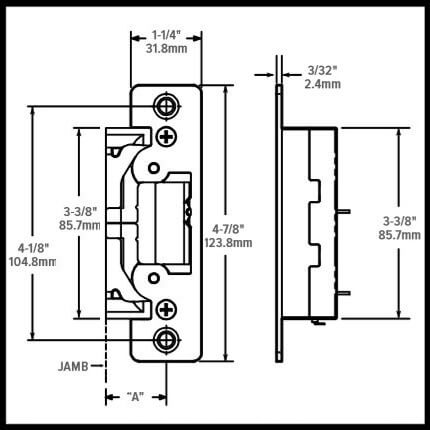

    • Dimensions
      • Case Dimensions
        1-13/32" L x 1-1/16" W x 3-3/8" H
      • Faceplate Dimensions
        1-1/4" W x 4-7/8" H
      • Strike Opening
        5/8" (adjustable) L x 1/2" W x 1-7/16" H
      • Strike Lip
        For 1-3/4" Thick Doors
    • Installation
      • Door Material
        Aluminum
    • Special Features
      • Preload Solution
        Yes
      • UltraLine®
        Yes
      • Static Strength
        1,500 lbs
      • Dynamic Strength
        70 ft lbs
      • Cycle Testing
        250K
    • Finishes
      • Finish
        Dark Bronze Anodized Aluminum (313), Black Anodized (335), Bright Brass (605), Satin Brass (606), Satin Aluminum, Clear Anodized (628), Bright Stainless Steel (629), Satin Stainless Steel (630), Dark Bronze Anodized (121), Clear Anodized (130)
    • Compliance Details
      • Compliance Details
        UL Listed, BHMA Certified
      • Warranty
        5 Year Limited Warranty

    UL 1034
    UL 294
    ULC-S319
    ANSI/BHMA A156.18
    ANSI/BHMA A156.31 Electric Strikes and Frame Mounted Actuators, Grade 1

    Custom options are available, please contact us for details and pricing.

    • Lip Extension Kit - for various dimensions of door centerline to jamb edge, for flat faceplates only
    • Monitoring Kit - indicates when the latchbolt is engaged in the strike jaws and a locked/unlocked solenoid status
    • Modular Packaging - match one strike body kit with one faceplate kit (all hardware included) to make a complete electric strike
    • PS-1 Power Supply - provides filtered and regulated voltage output to power electric strikes
    • 4603 Rectifier - converts low voltage AC current to DC of same voltage
    • 4605 / 4606 Transformer - converts 120 VAC to 12/24 VAC
    • Piezo Horn Audible Indicator - provides for audible indication when a DC electric strike is energized
    • ELX-ElectroLynx® Adapter - connects Adams Rite electrified products to ElectroLynx system
    • VA7400-16VDC - adapter required when using 16 VDC Power
    • WDC7400 - wood door cover for use to simplify prep when mounting the strike on the inactive leaf of a pair of doors
