PemkoHinge™ #WT_FM, Full Mortised Wide Throw Continuous Hinge

PemkoHinge™ #WT_FM, Full Mortised Wide Throw Continuous Hinge
Pemko Manufacturing
Read 1 review

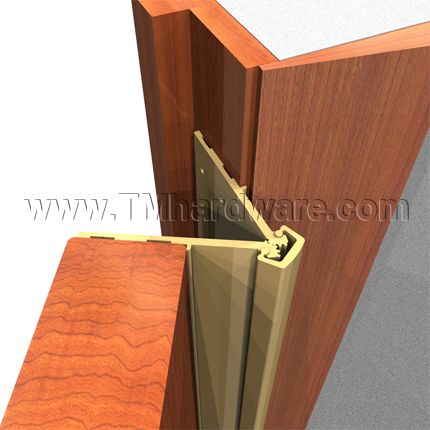

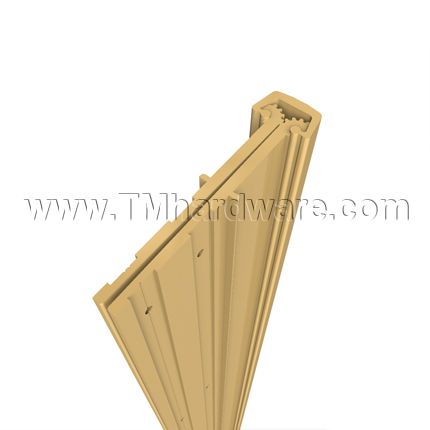

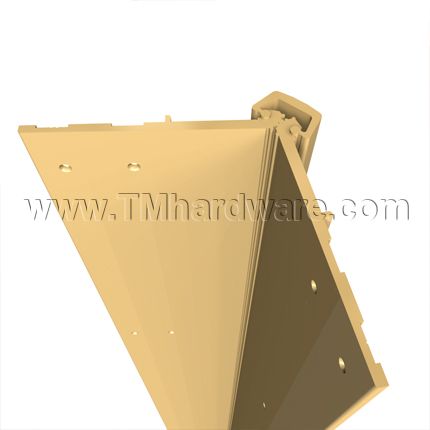

This Heavy Duty Grade 1, Full Mortised, Wide Throw Continuous PemkoHinge sets the pivot point out, away from the door, allowing the door to swing open 180°. Ideal for new door applications that require special clearance. Available with two anodized finishes and in custom sizes.

Sizes: Length is custom cut to size. Custom cut sizes have a minimal cutting fee (included in price below). Stock sizes of 83" and 95" does not include a cutting fee.

How to Order: Select finish and size range required. Then select exact size hinge should be cut down to.

This product qualifies for FREE SHIPPING, see shipping tab for details!

See tabs below for additional information
    • SKU
      PKWTCFM83HD1
      • 15% off
      Market price: $351.00 save $51.16
    • Starting price: Price: $299.84 per item


    This Heavy Duty Grade 1, Full Mortised Wide Throw Continuous Geared Hinge sets the pivot point out, away from the door, allowing the door to open 180° (depending on obstructions). It is a great option for frames that require additional clearance due to special frame, door and wall design. It is designed for new door applications and does not require additional clearance on between the frame and door.

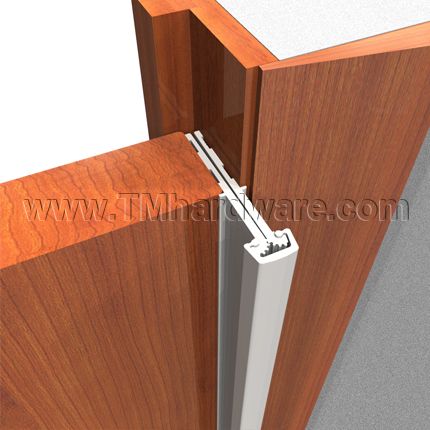

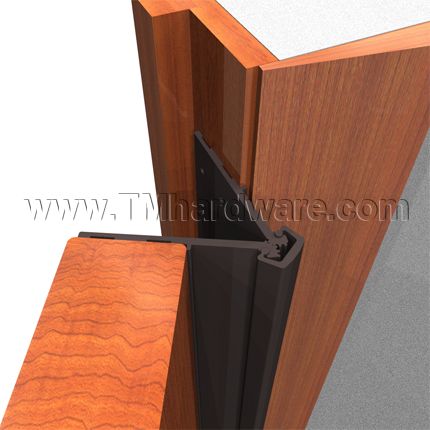

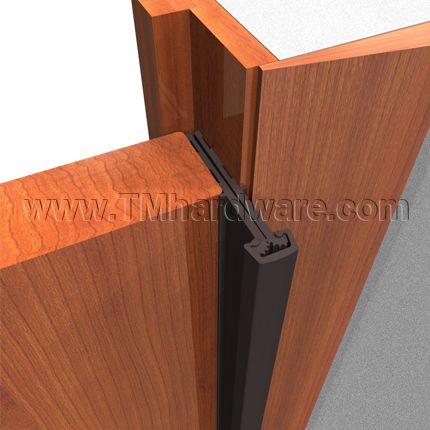

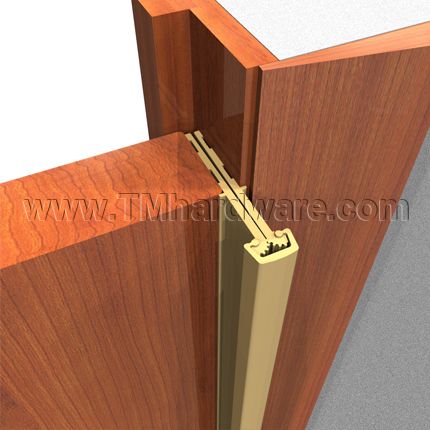

    This hinge is Full Mortised, with one leaf mounted to a rabbet in the frame while the other leaf is mounted to the edge of the door.

    Size, Bearings and Weight Recommendations for Full Mortised Heavy Duty Hinge

    Attributes:

    • Efficiency: With a continuous hinge, typical alignment problems (such as door sag and binding) are eliminated.
    • Uniformity: The continuous hinge distributes load stress uniformly along the full length of the door and frame.
    • Durability: The gear design of the continuous hinge ensures symmetrical operation of each leaf which extends the life of the hinge and door.
    • Low Operating Force: 1⁄2 lb. or less operating force required to operate most doors, regardless of size.
    • Code Compliance: Low operating force feature makes continuous hinges ideal for doors used by the physically challenged.
    • Steel Frame Compatibility: The continuous hinge, when installed on standard steel doors and frames, requires no additional reinforcement. However, hinge preps must have fillers installed for proper operation.
    • Security: A high degree of security can be achieved for exterior openings or restricted spaces by using a continuous hinge. With the geared construction and the full-length channel cap, the common gap between the door and frame is sealed, which provides security against prying.
    • Safety: In addition, the continuous full-height hinge cap protects against pinching fingers in doors in public areas, particularly those where children are present.
    • Privacy: Sight proof design of the continuous hinge provides privacy for lavatories, executive offices, or file rooms.

    Design Features:

    • PemkoHinge™ has increased critical stress points of the hinge leaf extrusions providing additional strengths and rigidity to the completed product.
    • PemkoHinge™ bearing design eliminates premature wear, guarantees proper alignment, and requires fewer bearings to carry more weight. The bearing is produced for the manufacturer using a chemical composition and injection process that provides a stronger, more accurately formed bearing.
    • PemkoHinge™ is designed with inter-meshing gear segments in the hinge which provide 50% more bearing surface resulting in less wear.
    • PemkoHinge™ goes through the anodizing process after completing all machining. This means the machined aluminum surfaces that are in direct contact with the bearing have a smoother, harder surface, thereby reducing wear.
    • PemkoHinge™ maintains uniform bearing spacing for the full length of the hinge even when lengths exceed 10'.
    • PemkoHinge™ uses #12-24 size fasteners instead of #10. (#12 Tek fasteners available upon request through our office).
    • PemkoHinge™ commercial models are ideal for use on lead lined doors (i.e. hospital X-ray rooms), without requiring special screw locations.

    Additional Options Available - See Options Tab for more details:

    • FirePins for Fire Rated Assemblies

    Stock Sizes: Stock sizes include 83" and 95"- these sizes will not be charged a cutting fee. If required select from options above.

    Custom Sizes: Can be purchased in custom sizes up to 104" through our website. Sizes up to 120" can be purchased through our office. A minimal cutting fee will be charged, included in price above. Please contact us or call us at 845-388-1300 for pricing and shipping information.

    Fasteners: Supplied with standard fastener kit. Replacement Kit or individual screws can be purchased through our office. TORX / TEK screws can also  be purchased through our office.

    Please note, images are for illustrative purposes only. They are not actual photos. Therefore, actual colors may vary slightly and size may be enlarged to show detail. See product specs for exact measurements.

    This product is GUARANTEED FOR LIFE OF THE OPENING against defects in material and workmanship.
    Click to view our Full Warranty Policy.

    For retrofit construction, try our Half Surface Wide Throw Continuous Hinges.

      • SKU
        PKWTCFM83HD1
    • QuickShip
      No
    • Manufacturer
      Pemko Manufacturing
    • MPN
      WT_FM
    • Fire Pins
      None Required, Zinc, for 83" - 95" Hinge, Zinc, for 96" - 120" Hinge
    • Finishes
      • Finish

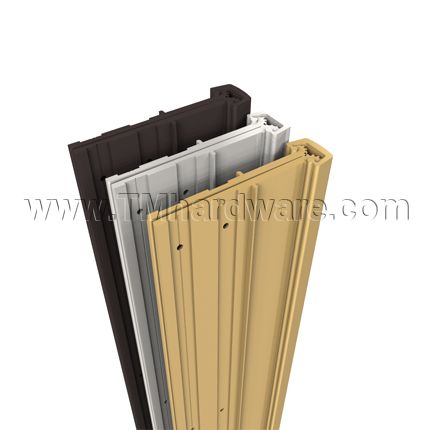

        Clear Anodized Aluminum (US28), Dark Bronze Anodized Aluminum (313)
    5.0
    1 Review

    Ratings Distribution

    5 Stars 100 1
    4 Stars 0 0
    3 Stars 0 0
    2 Stars 0 0
    1 Star 0 0

    Reviewed by 1 customer

    5

    An excellent hinge

    Comments about PemkoHinge™ #WT_FM, Full Mortised Wide Throw Continuous Hinge

    After a lengthy search I found this Pemco hinge at Trademark Hardware. It is the perfect hinge for a concealed access door on the exterior of my house and I am very pleased with it.

    By Scott
    Verified Buyer

    Printable Documents

    Click to Print Product Specs

    Click to Print Heavy Duty Stock Sizes Templates

    Click to Print Required Clearances for Wide Throw Hinge

    Product Specs

    Product Specs for Full Mortised Wide Throw Continuous Hinge by Pemko   Product Specs for Full Mortised Wide Throw Continuous Hinge by Pemko

    Wide Throw Hinge in Full Open Position:

    Product Specs for Full Mortised Wide Throw Continuous Hinge in Full Open Position

    Required Clearances for Full Mortised Hinges:

    Required Clearances for Full Mortised Wide Throw Continuous Hinge by Pemko

    Fire Pins for Fire Rated Assemblies

    • FirePins™ are required to achieve 3-hour fire rating
    • Although PemkoHinge™ Continuous Hinges carry UL Fire Ratings unequaled in the industry, some applications may require the use of FirePins™
    • FirePin™ applications fall within the UL guidelines for retro-fitting assemblies in the field. Expensive shop modifications and door/frame reinforcements are not required
    • FirePins™ also add extra security to a door assembly

    FirePin Locations

    • The locations (illustrated below) indicate where holes should be drilled on the hinge edge of the door
    • These locations are appropriate for all hinge models (Full-Mortise, Full-Surface, and Half-Surface)

    Image of Fire Pin Application for PemkoHinge    Image of Fire Pin Application for PemkoHinge

    Click to View Ratings Explained

    Compliance Details for Standard Full Mortised X-Series Continuous Geared PemkoHinge

    Cycle Requirements - Per BHMA Standard ANSI/BHMA A156.26-2006:

    Heavy Duty Grade 1 Hinges conform to Grade 2-150, Grade 1-300, and Grade 1-600

    UL Fire Labeled:

    Hinges has been Tested and Certified by Underwriter Laboratories Inc. to standards UL10B, UL10C and UBC7.2 (Positive Pressure) for up to and including a 3-Hour Fire Listing fall all 4'0" x 10'0" and 8'0" x 10'0" door and frame assemblies. Fire listing certifications apply to all approved hollow metal and wood door assemblies in drywall or masonry wall construction.
